Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP accessory trim plate. Refer to TRIM PLATE REPLACEMENT - IP ACCESSORY .

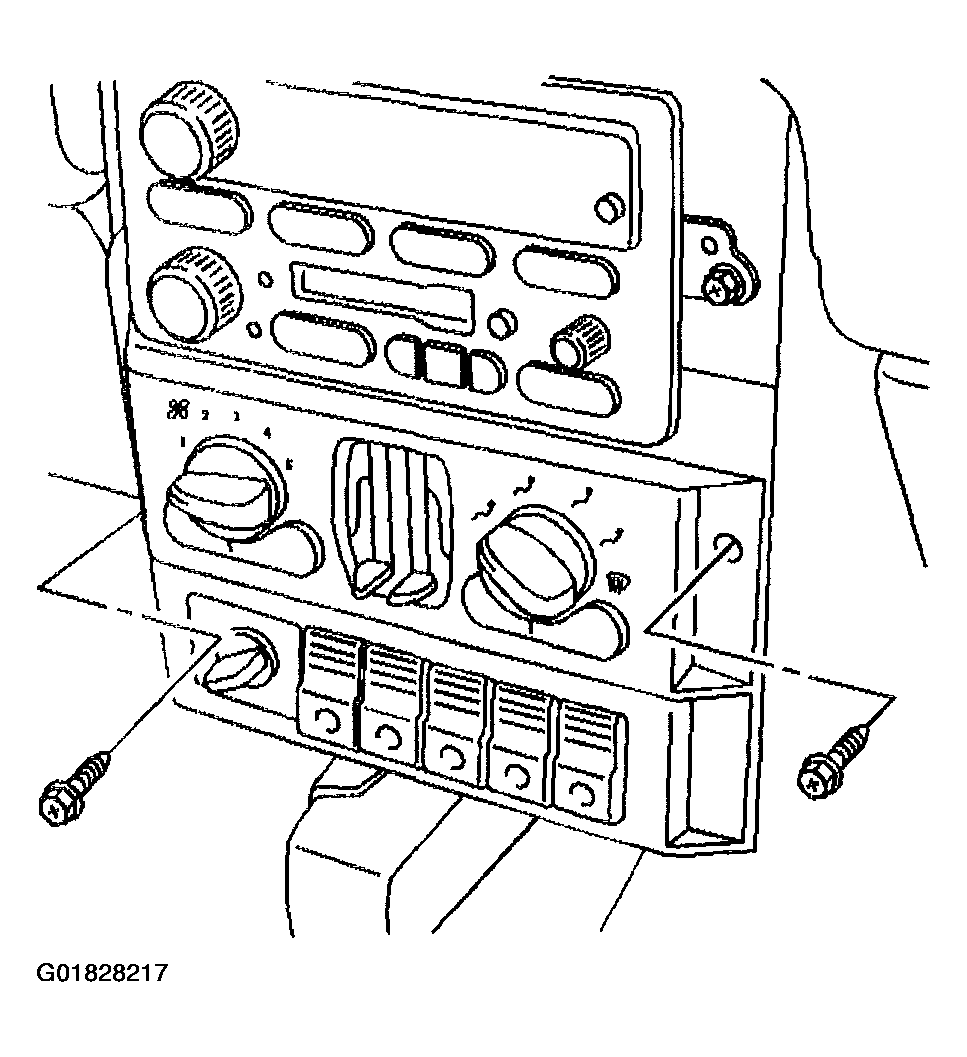

    2. Fig 1: HVAC Control Module
    G01828217Courtesy of GENERAL MOTORS CORP.
  2. Remove the HVAC control module retaining screws.
  3. Pull the HVAC control module straight out from the instrument panel.
  4. Disconnect the HVAC control module electrical connectors.
  5. Remove the HVAC control module.
