Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the HVAC control module electrical connectors.

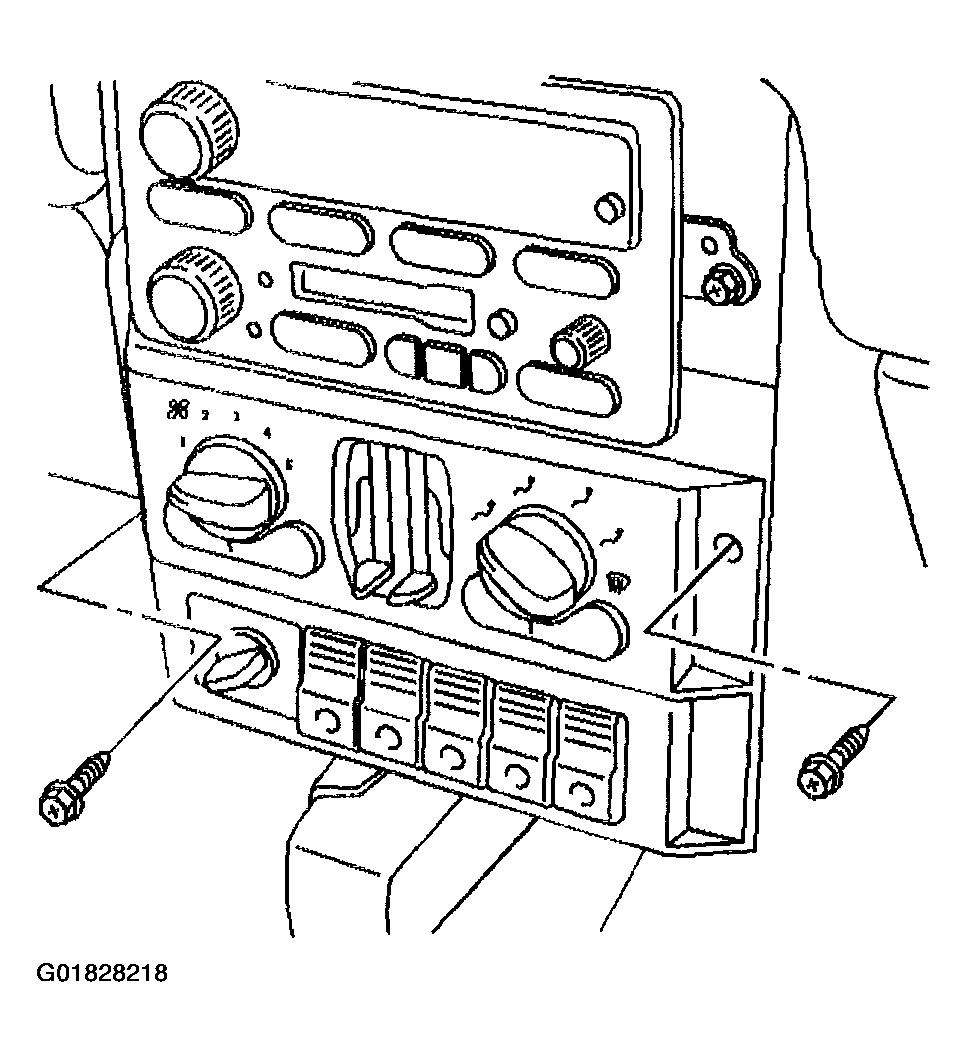

    2. Fig 1: HVAC Control Module
    G01828218Courtesy of GENERAL MOTORS CORP.
  2. Install the HVAC control module into instrument panel opening.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the HVAC control module retaining screws.

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).

  4. Install the IP accessory trim plate. Refer to TRIM PLATE REPLACEMENT - IP ACCESSORY .
