Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Remove the IP trim plate. Refer to TRIM PLATE REPLACEMENT - IP ACCESSORY .

Fig 1: IP Trim Plate
Courtesy of GENERAL MOTORS CORP.
Remove the auxiliary blower motor switch retaining screws.
Pull straight out from the IP in order to remove the auxiliary blower motor switch.

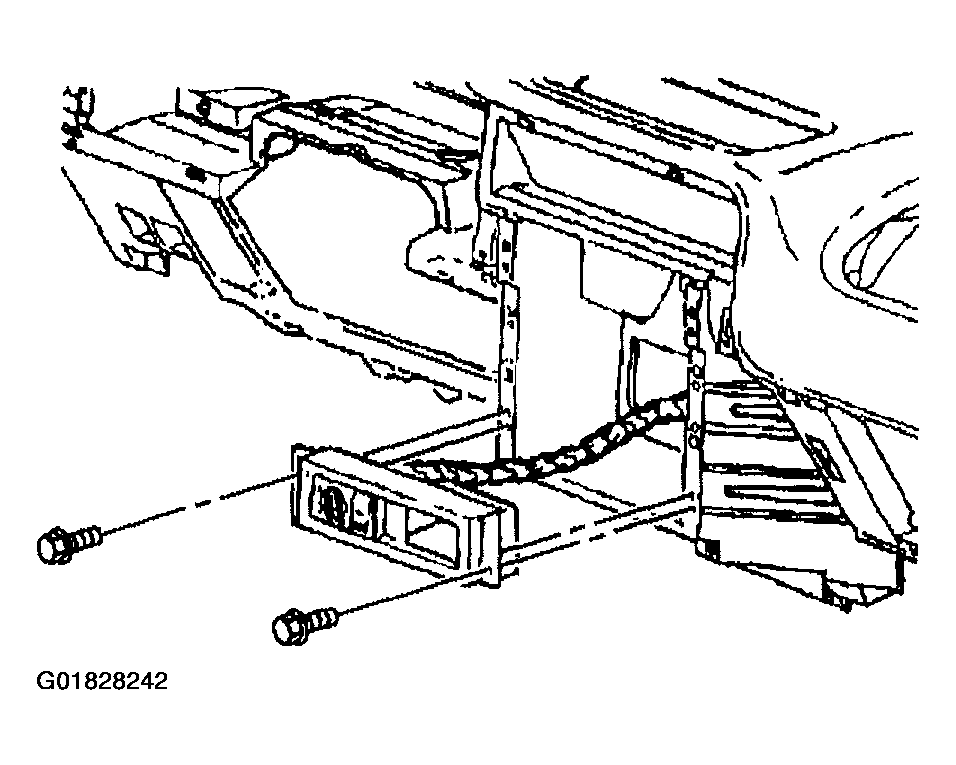

Fig 2: Auxiliary Blower Motor Switch
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connectors from the blower motor switch.

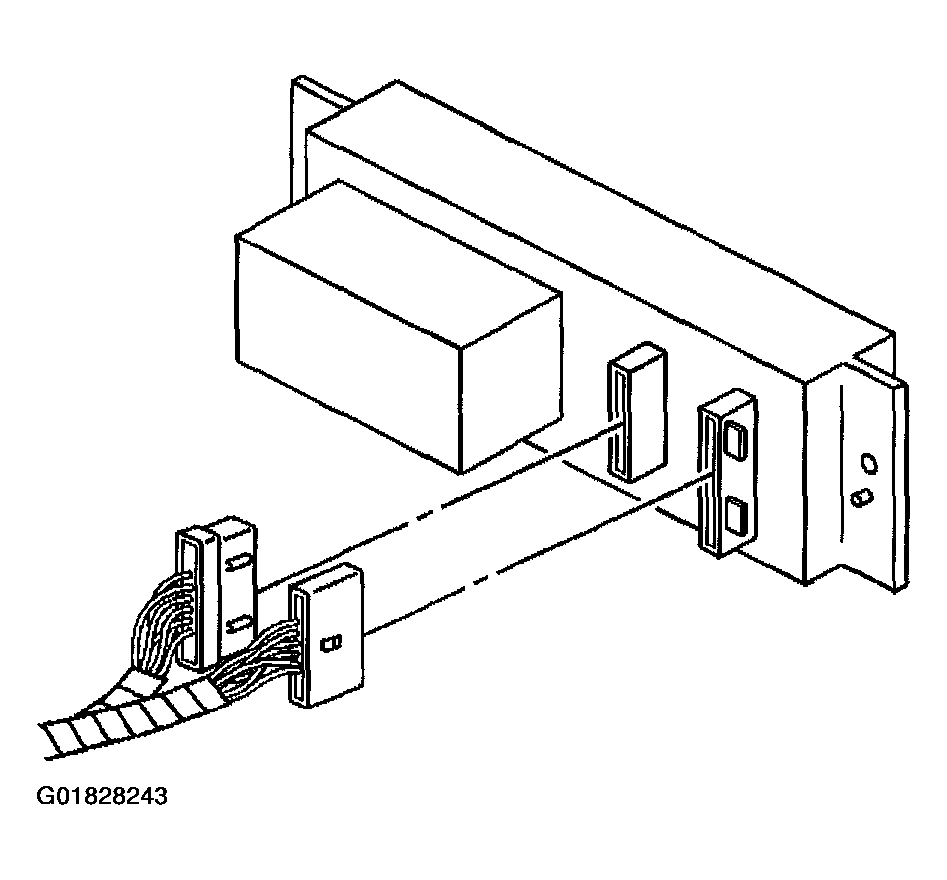

Fig 3: Electrical Connectors For Blower Motor Switch
Courtesy of GENERAL MOTORS CORP.
