Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

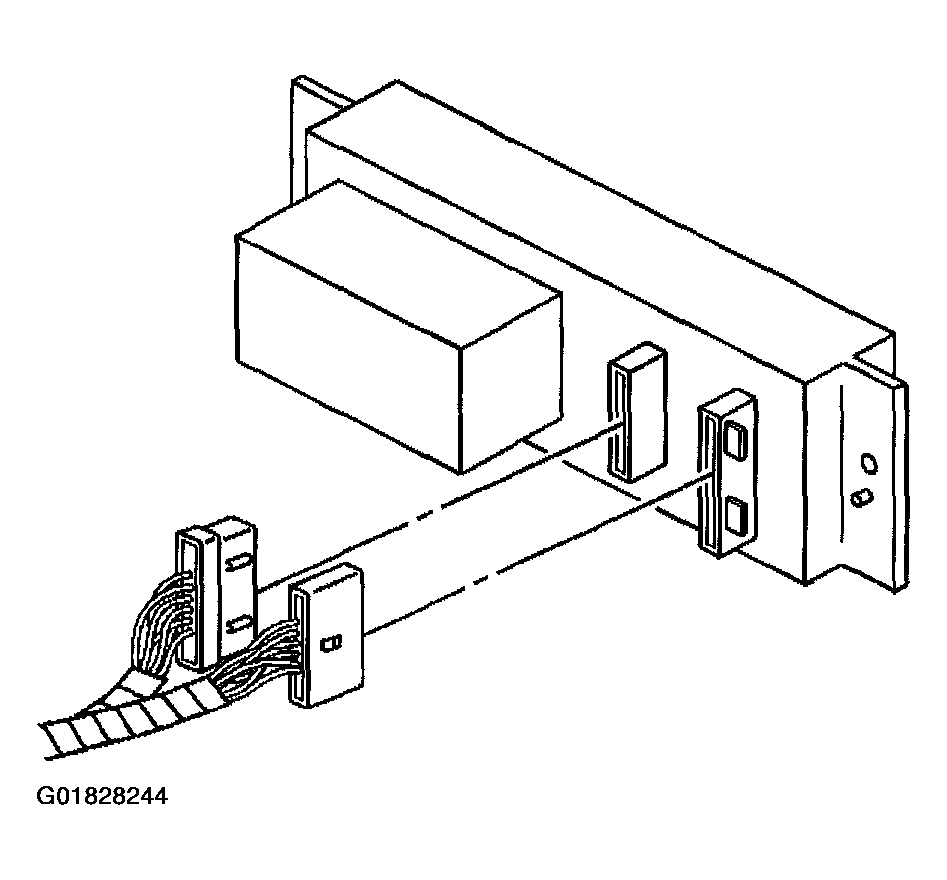

    Fig 1: Electrical Connectors For Blower Motor Switch
    G01828244Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connectors to the blower motor switch.

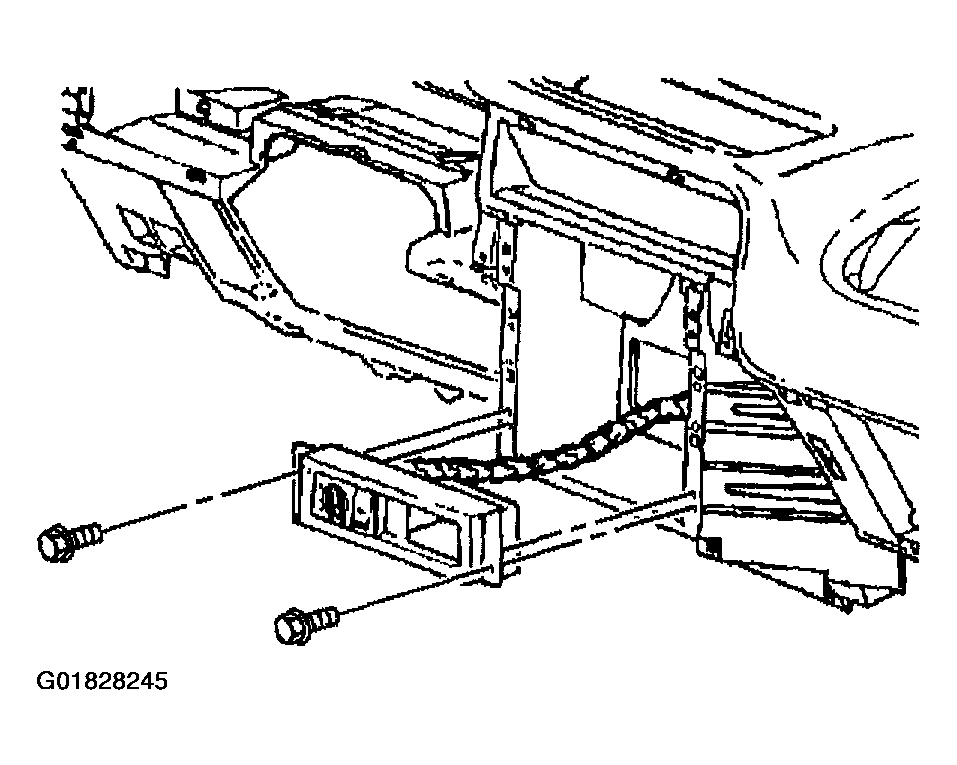

    2. Fig 2: Auxiliary Blower Motor Switch
    G01828245Courtesy of GENERAL MOTORS CORP.
  2. Push in on the blower motor switch in order to install the blower motor switch.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the auxiliary blower motor switch retaining screws.

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).

  4. Install the IP trim plate. Refer to TRIM PLATE REPLACEMENT - IP ACCESSORY .
    Fig 3: IP Trim Plate
    G01828246Courtesy of GENERAL MOTORS CORP.
