Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left lower quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .

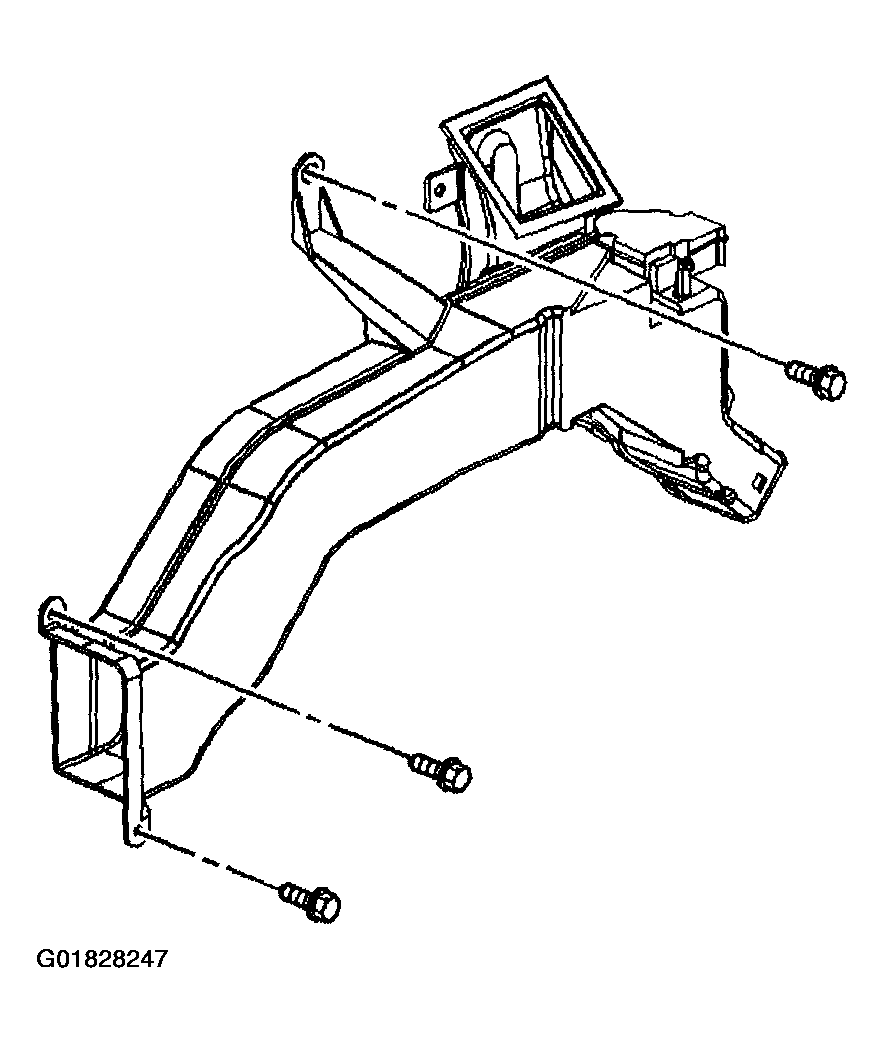

    2. Fig 1: Air Distribution Duct
    G01828247Courtesy of GENERAL MOTORS CORP.
  2. Remove the air distribution duct to HVAC module assembly bolts.
  3. Disconnect the air distribution duct and re-position for access to the blower motor relay.
  4. Remove the blower motor relay from the mounting bracket.

    Slide the relay up to disconnect from the relay bracket.

  5. Disconnect blower motor relay electrical connector.
  6. Remove the blower motor relay.
