Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor relay.
  2. Connect the blower motor relay electrical connector.
  3. Install the blower motor relay to the mounting bracket.

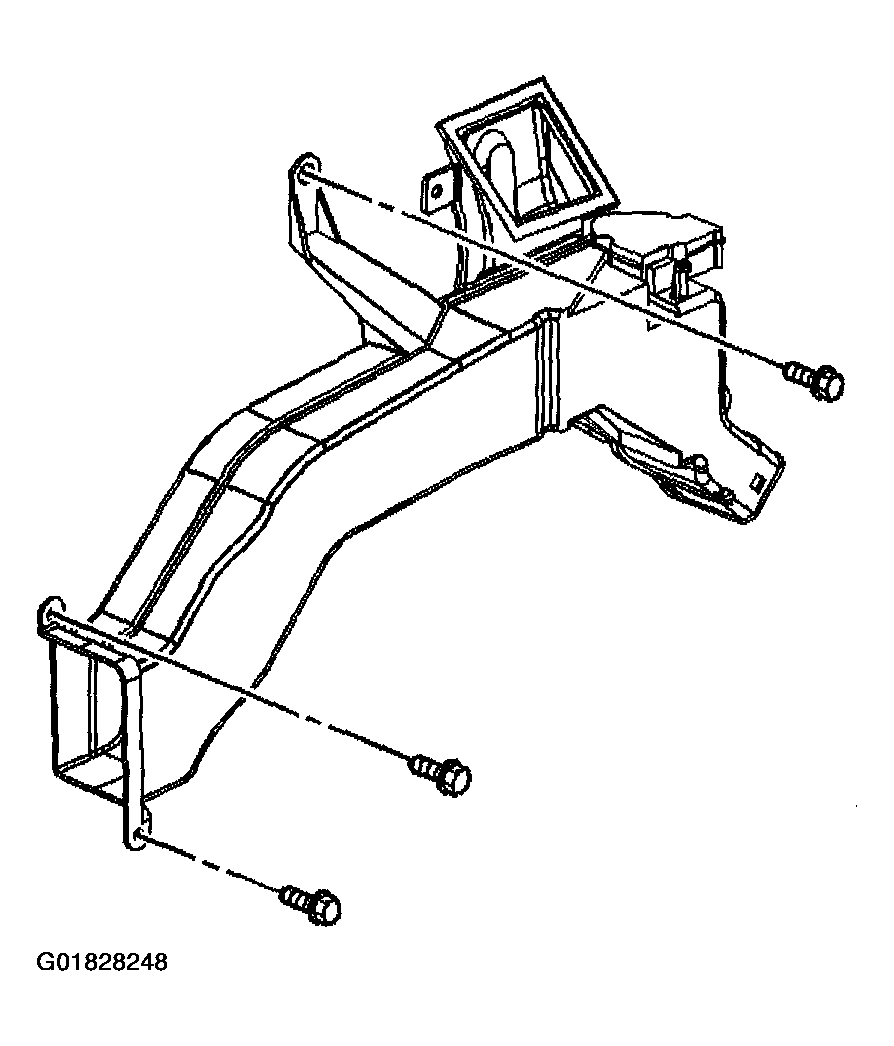

    4. Fig 1: Air Distribution Duct
    G01828248Courtesy of GENERAL MOTORS CORP.
  4. Connect the air distribution duct to the HVAC module assembly.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the air distribution duct to HVAC module assembly bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  6. Install the left lower quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .
