Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Engage the actuator linkage to the air temperature door lever.

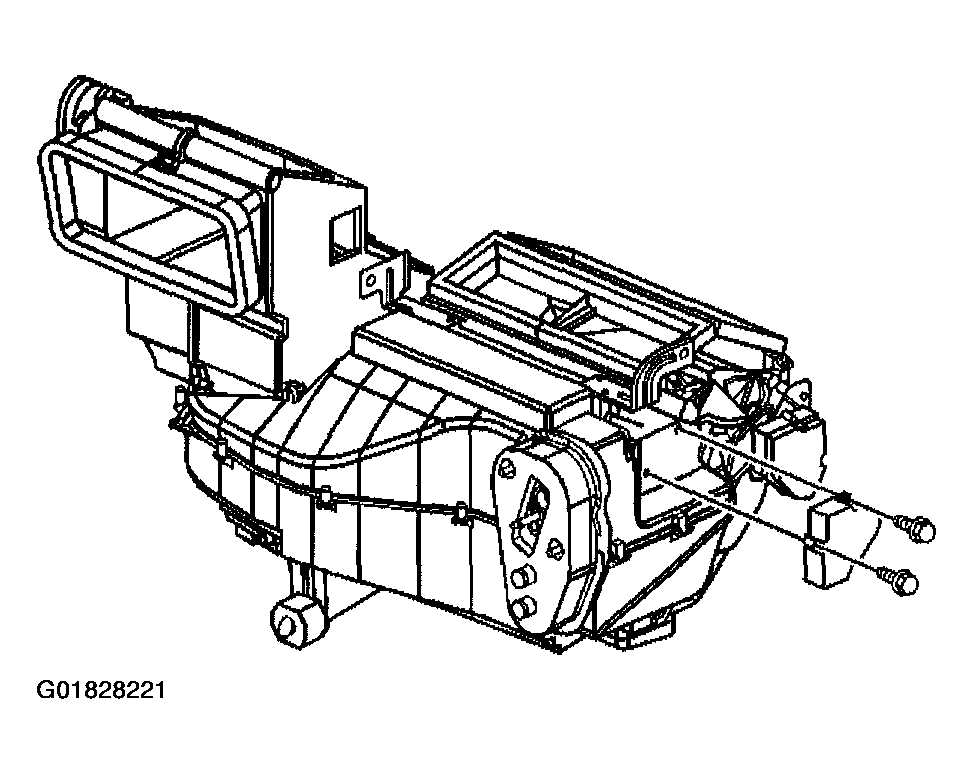

    2. Fig 1: Air Temperature Actuator
    G01828221Courtesy of GENERAL MOTORS CORP.
  2. Install the air temperature actuator.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the air temperature actuator retaining screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

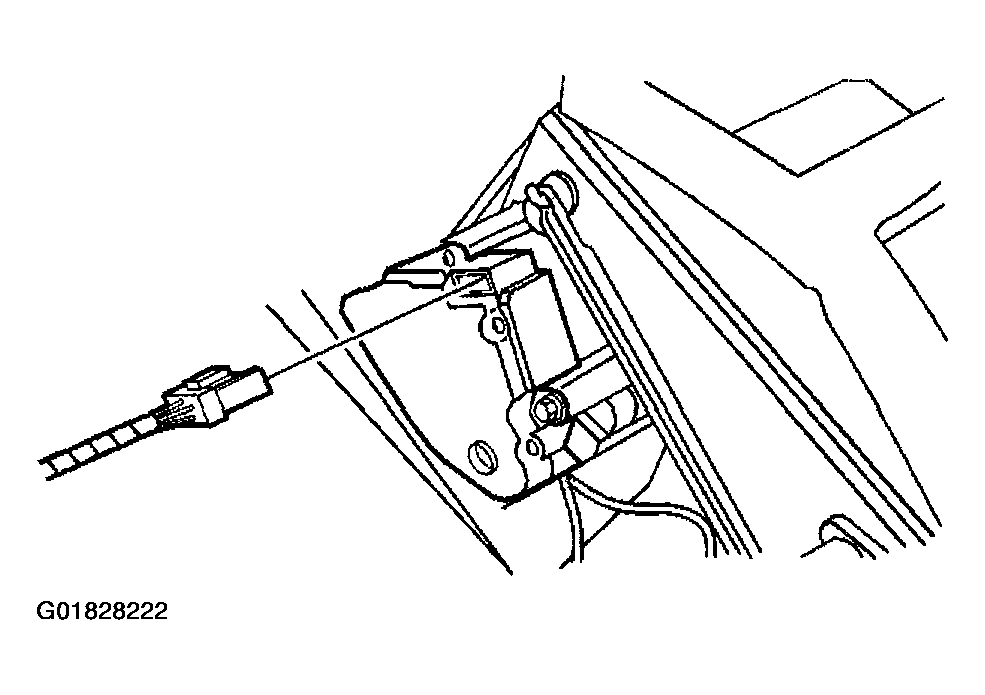

    4. Fig 2: Temperature Actuator Electrical Connector
    G01828222Courtesy of GENERAL MOTORS CORP.
  4. Connect the air temperature actuator electrical connector.
  5. Install the knee bolster to the IP. Refer to KNEE BOLSTER REPLACEMENT .
