Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP compartment. Refer to COMPARTMENT REPLACEMENT - IP .

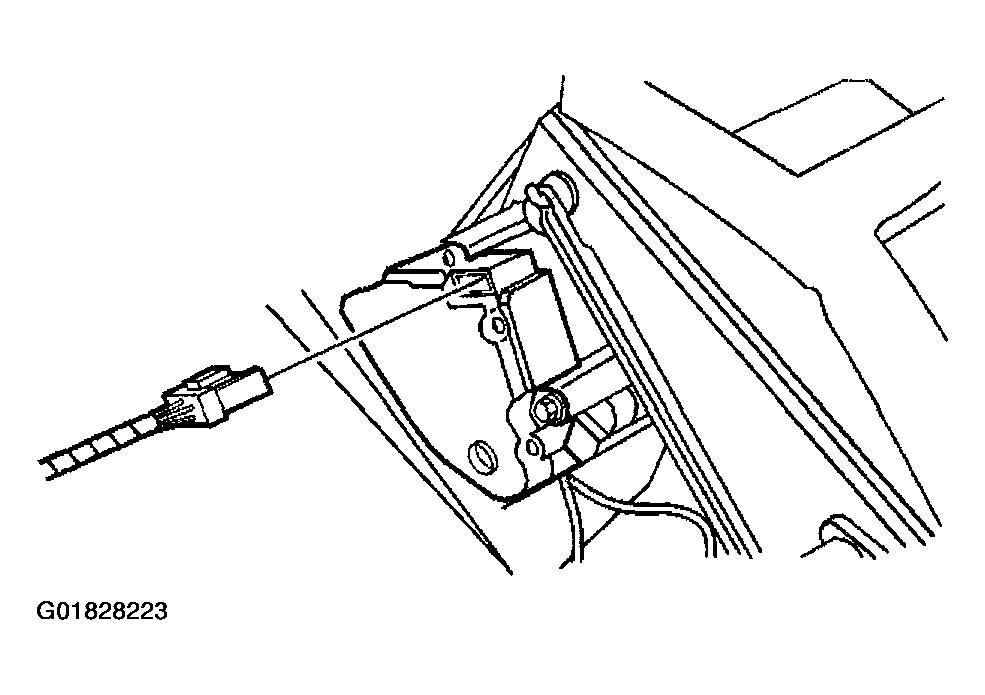

    Fig 1: Temperature Actuator Electrical Connector
    G01828223Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the right air temperature actuator electrical connector.
    3. Fig 2: Right Air Temperature Actuator
    G01828224Courtesy of GENERAL MOTORS CORP.
  3. Remove the right air temperature actuator retaining screws.
  4. Remove the right air temperature actuator.
