Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

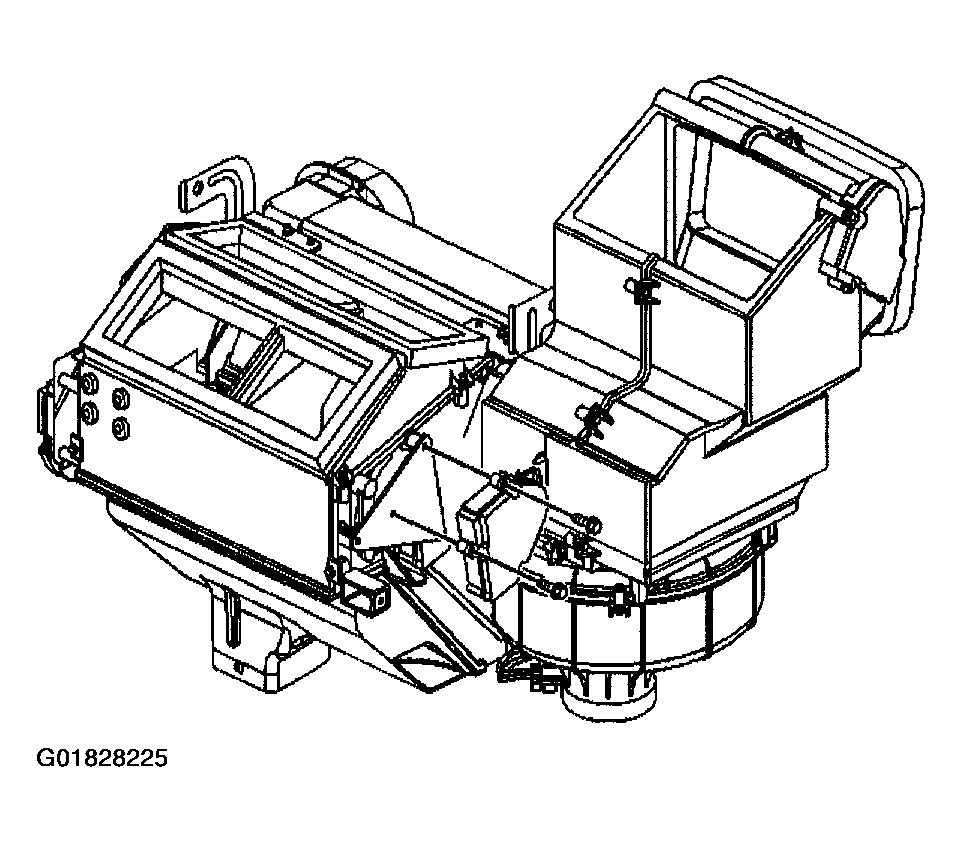

    Fig 1: Right Air Temperature Actuator
    G01828225Courtesy of GENERAL MOTORS CORP.
  1. Install the right air temperature actuator.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the right air temperature actuator retaining screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

    3. Fig 2: Temperature Actuator Electrical Connector
    G01828226Courtesy of GENERAL MOTORS CORP.
  3. Connect the right air temperature actuator electrical connector.
  4. Install the IP compartment. Refer to COMPARTMENT REPLACEMENT - IP .
