Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

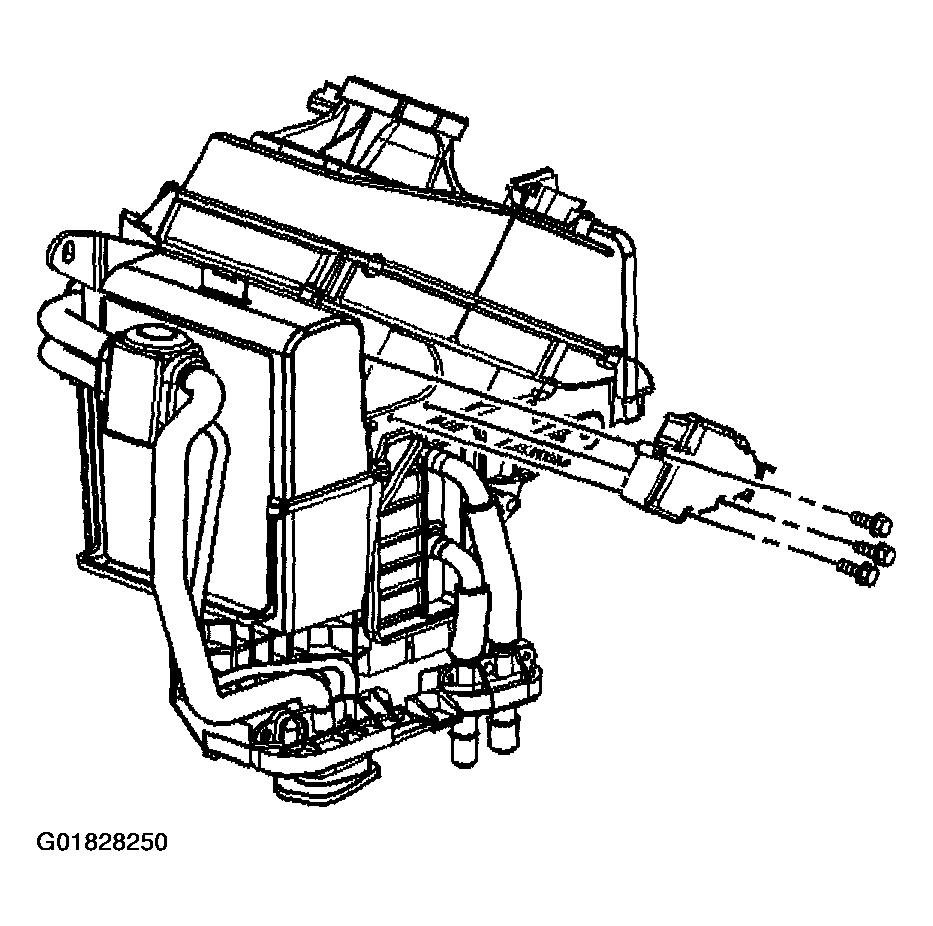

    Fig 1: Auxiliary Air Temperature Actuator
    G01828250Courtesy of GENERAL MOTORS CORP.
  1. Install the auxiliary air temperature actuator to the HVAC module assembly.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the auxiliary air temperature actuator retaining screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  3. Connect the auxiliary air temperature actuator electrical connector.
  4. Install the left lower quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .
