HVAC Component Views

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

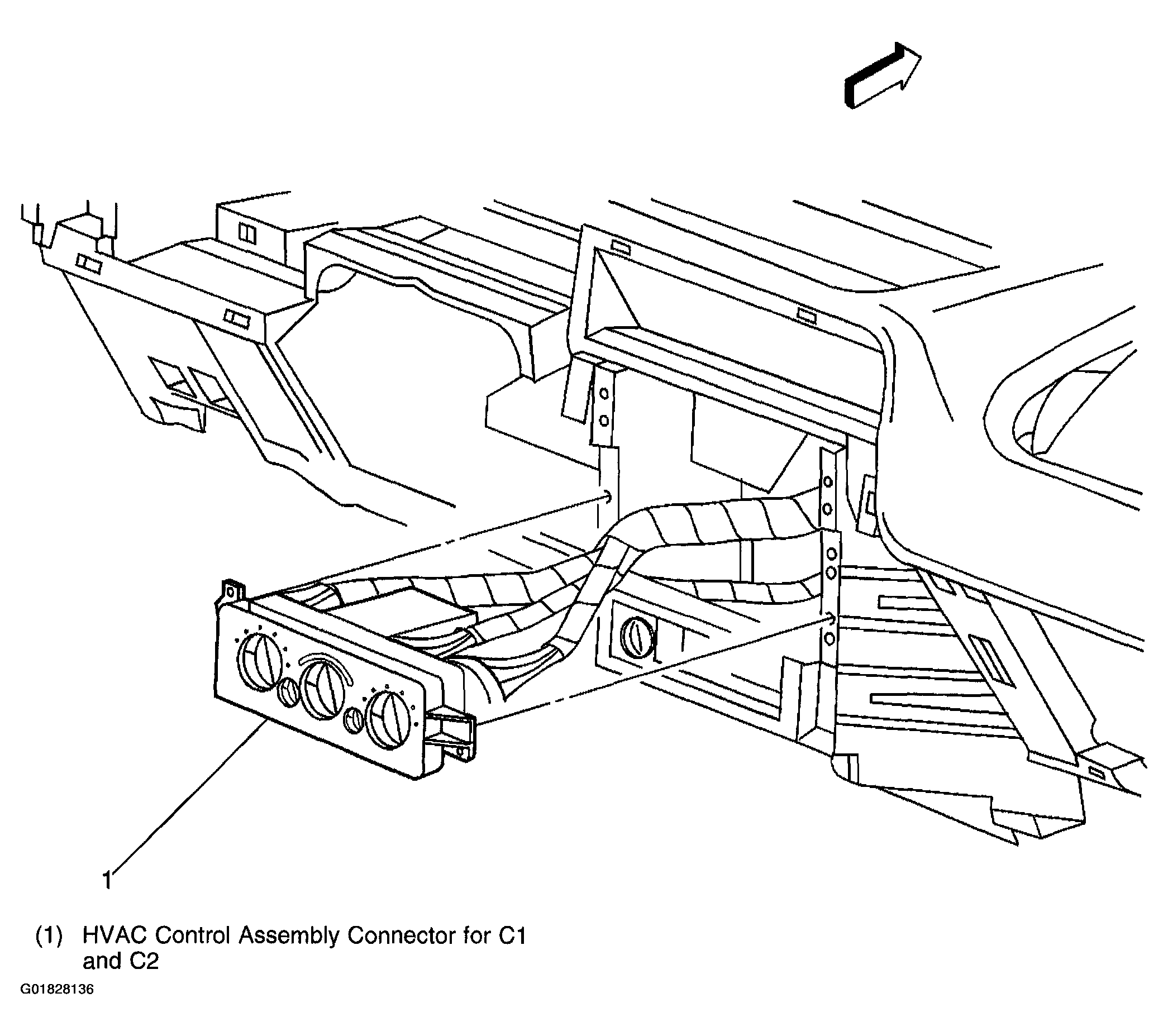

Fig 1: Center of Instrument Panel Cluster (IPC)

Courtesy of GENERAL MOTORS CORP.

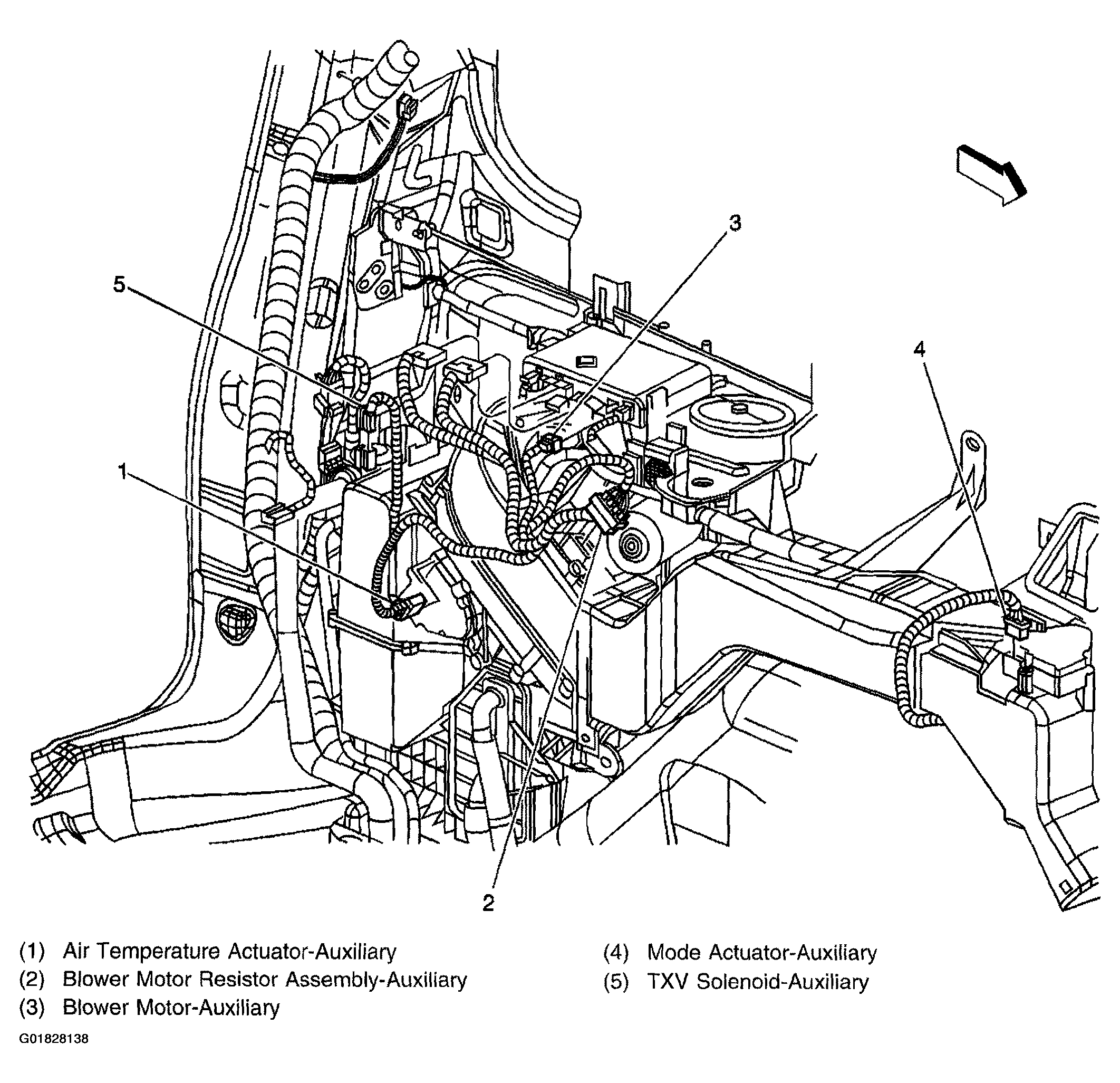

Fig 2: Left Rear of Vehicle on Rear of Wheelhouse

Courtesy of GENERAL MOTORS CORP.

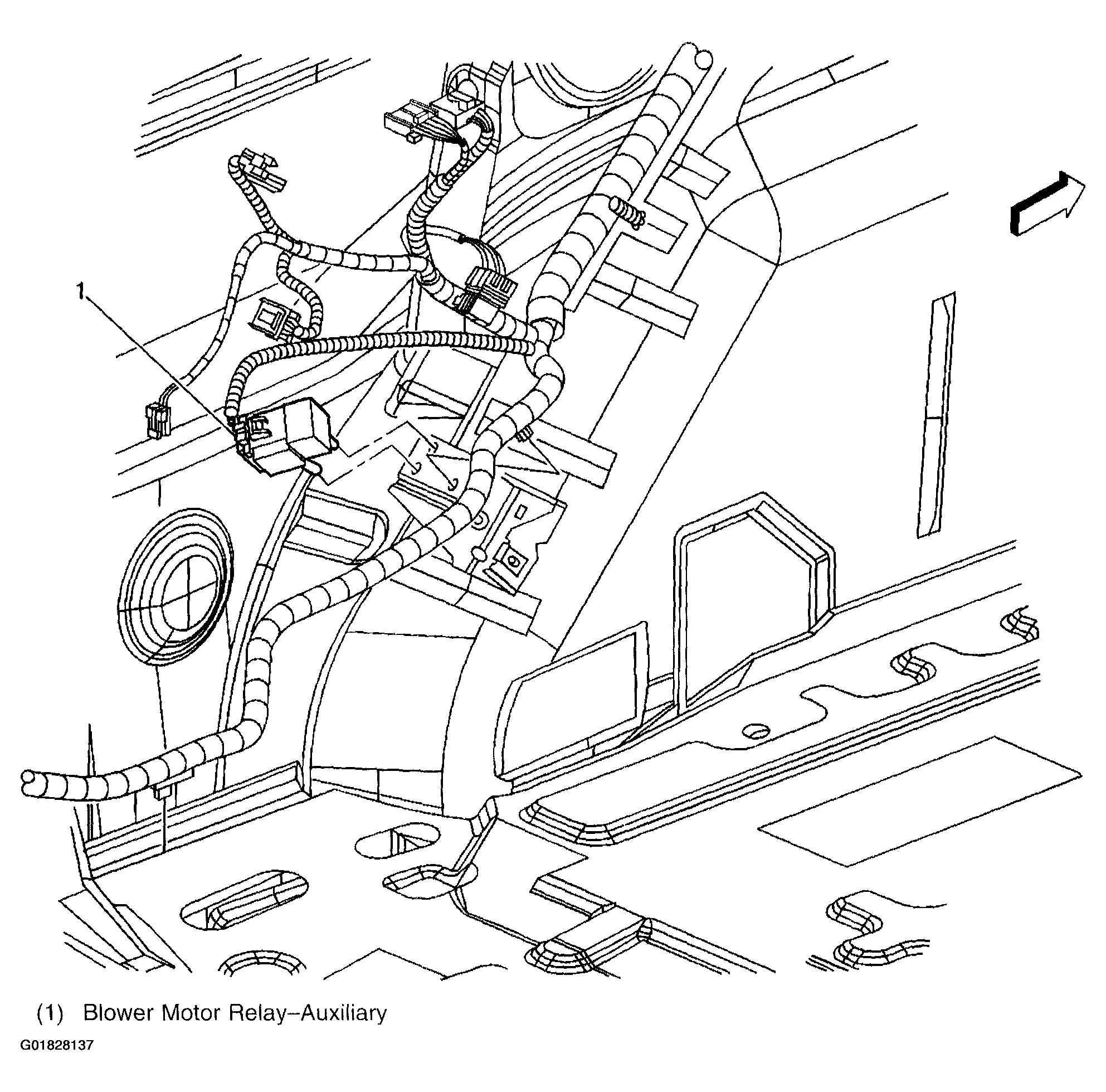

Fig 3: Left Rear of Vehicle on Rear of Wheel house

Courtesy of GENERAL MOTORS CORP.

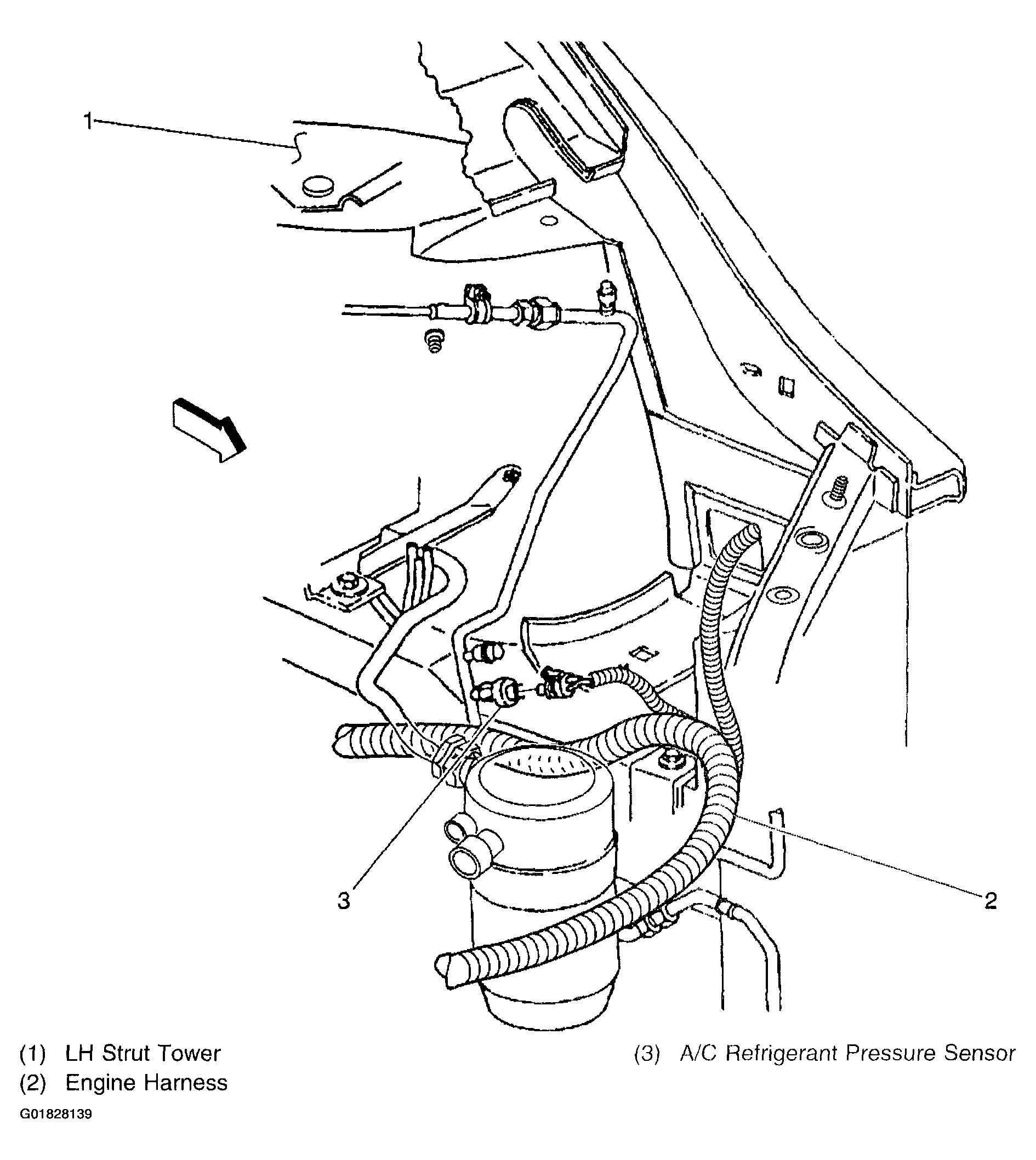

Fig 4: Front, LH Side of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

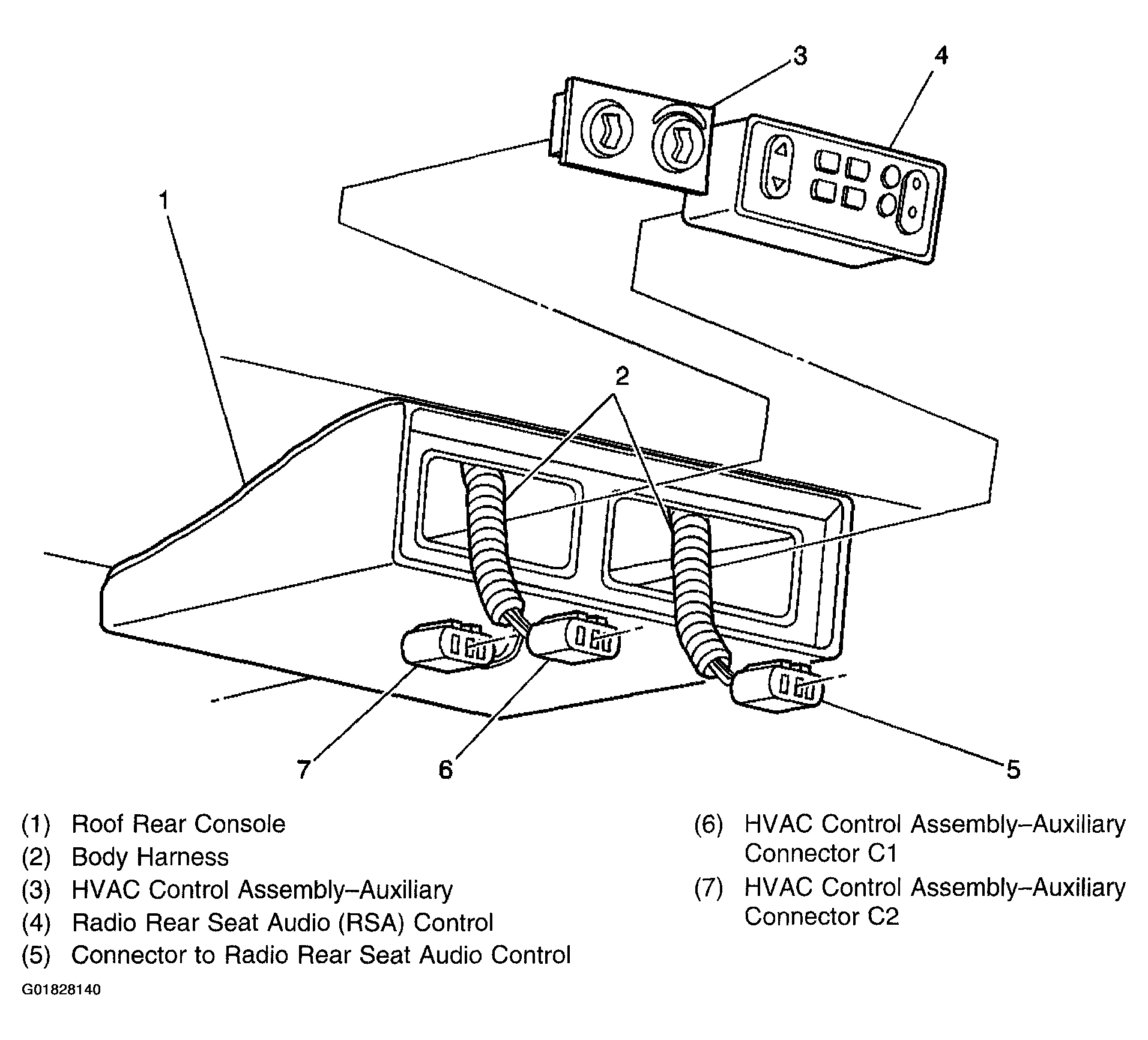

Fig 5: Roof Rear Console, Roof Headliner Behind Driver's Seat (5-Door)

Courtesy of GENERAL MOTORS CORP.

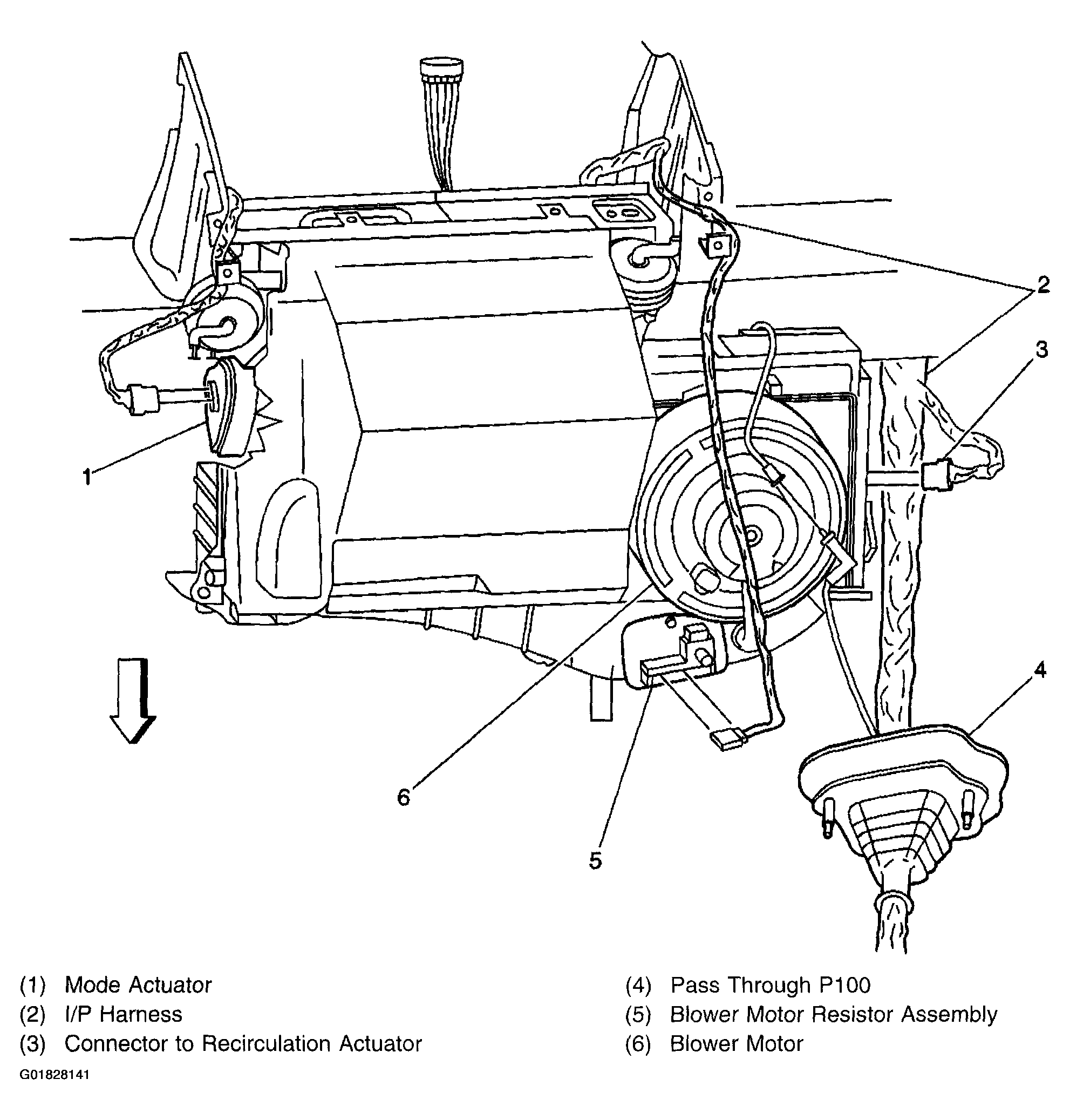

Fig 6: RH Side of IP

Courtesy of GENERAL MOTORS CORP.

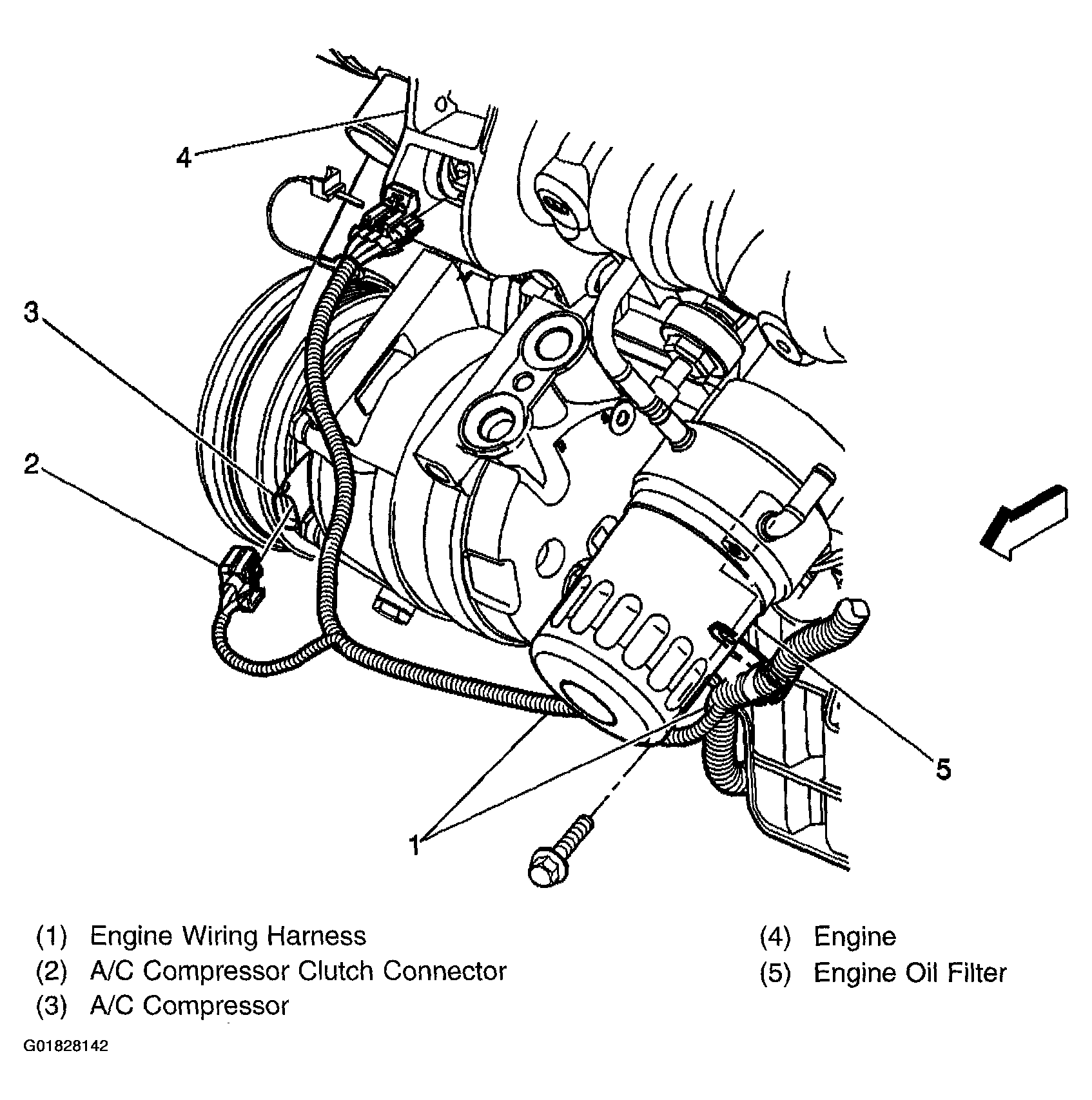

Fig 7: Lower Right Front of the Engine

Courtesy of GENERAL MOTORS CORP.

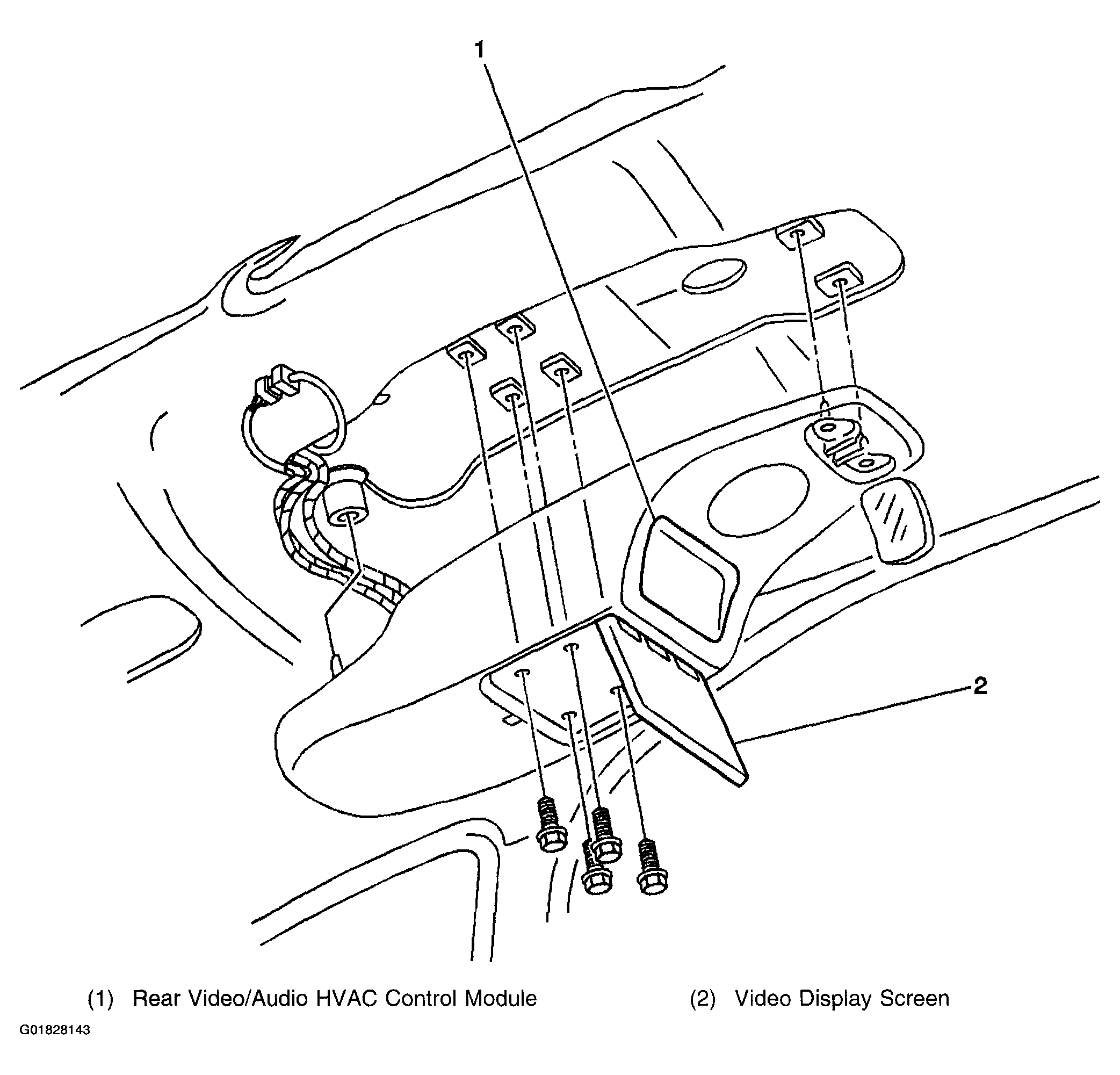

Fig 8: Roof Rear Overhead Console with Rear Entertainment System

Courtesy of GENERAL MOTORS CORP.
