Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the plastic cover from the shoulder belt guide.
  2. Remove the front seat belt upper guide loop anchor nut.
  3. Remove the center pillar upper trim panel. Refer to GARNISH MOLDING REPLACEMENT - UPPER PILLAR .
  4. Use the J 29843-9  in order to remove the bolts (3) form the shoulder belt guide adjuster bracket (1).
  5. Remove the shoulder belt guide adjuster bracket (1) from the B-pillar (2).

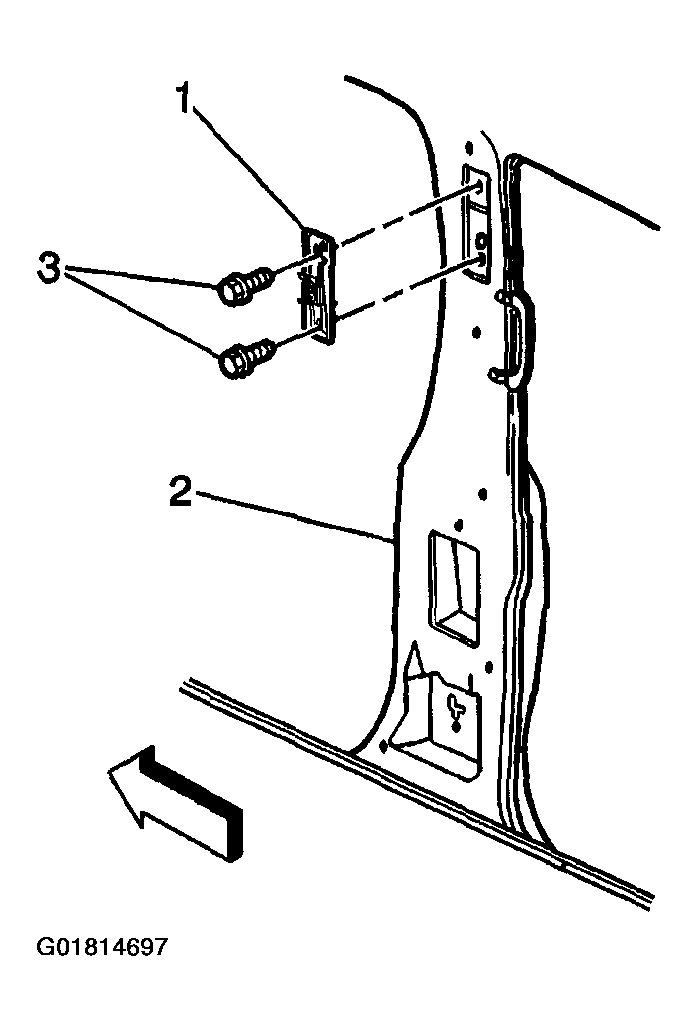

    Fig 1: Removing Shoulder Belt Guide Adjuster Bracket & B-Pillar (Front)
    G01814697Courtesy of GENERAL MOTORS CORP.
