Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the shoulder belt guide adjuster bracket (1) to the B-pillar (2).
    NOTE: Refer to FASTENER NOTICE .
  2. Use the J 29843-9  in order to install the bolts (3) to the shoulder belt guide adjuster bracket (1).

    Tighten

    Tighten the front shoulder belt guide adjuster bracket bolts to 50 N.m (37 lb ft).

  3. Install the center pillar upper trim panel. Refer to GARNISH MOLDING REPLACEMENT - UPPER PILLAR .
  4. Install the nut securing the upper guide loop anchor nut.

    Tighten

    Tighten the front seat belt upper guide loop anchor nut to 29 N.m (21 lb ft).

  5. Install the plastic cover to the shoulder belt guide.

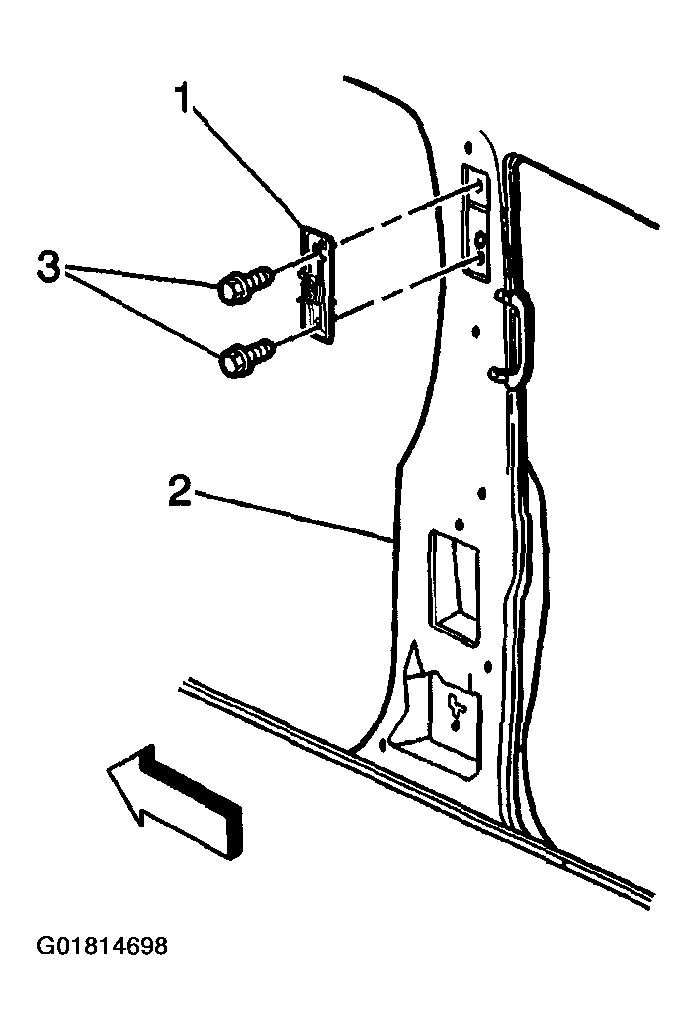

    Fig 1: Installing Shoulder Belt Guide Adjuster Bracket & B-Pillar (Front)
    G01814698Courtesy of GENERAL MOTORS CORP.
