Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover (2) from the upper seat belt anchor.
  2. Use the J 29843-9  in order to remove the bolt (1) securing the upper seat belt anchor from the rear window pillar (3).
  3. Remove the upper seat belt anchor from the rear window pillar (3).
  4. Raise the carpeting in order to expose the lower seat belt anchor bolt (5).
  5. Use the J 29843-9  in order to remove the bolt (5) securing the lower seat belt anchor (4) from the floor.

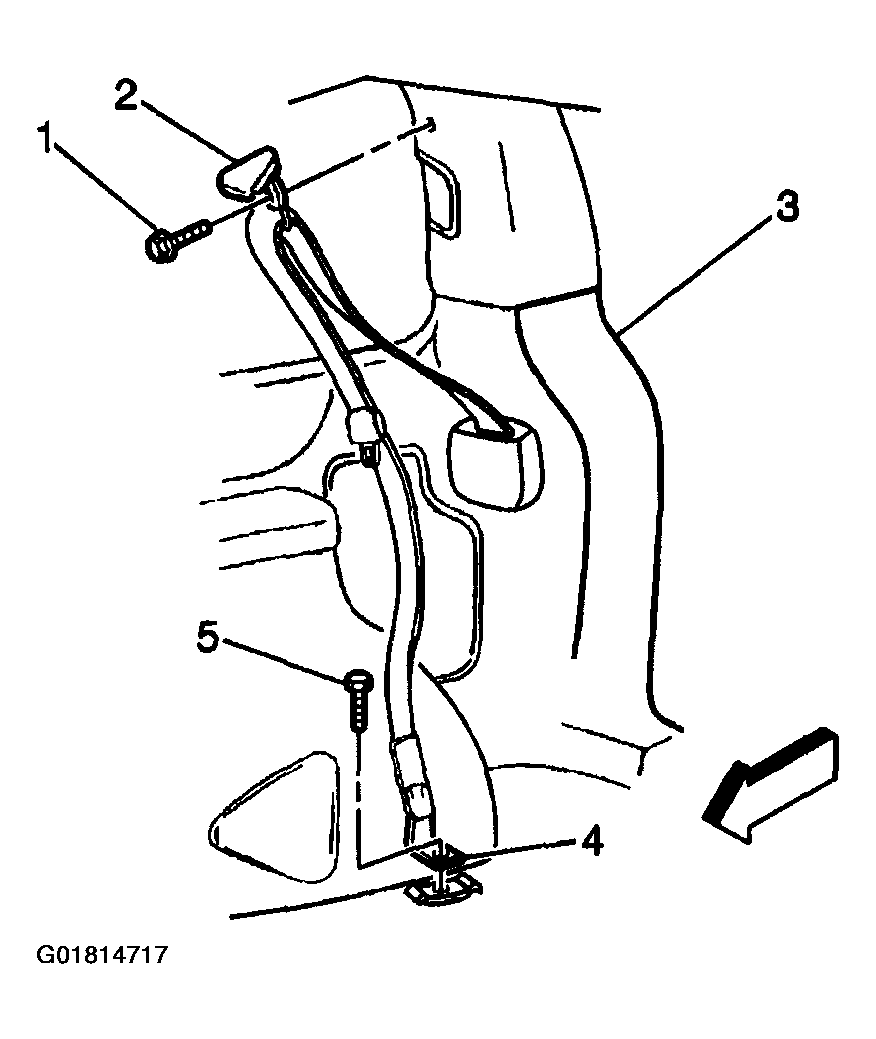

    Fig 1: Removing Lower Seat Belt Anchor & Bolt (No. 3 Rear)
    G01814717Courtesy of GENERAL MOTORS CORP.
  6. Remove the plastic trim cover from the rear window pillar (3) trim panel. Slide the belt webbing through the slot.
  7. Remove the driver's side rear quarter trim with RPO-C34, rear A/C only. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .
  8. Use the J 29843-9  in order to remove the bolt securing the retractor from the rear window pillar.
  9. Remove the retractor side seat belt from the vehicle.
  10. Remove the retractor from the vehicle.

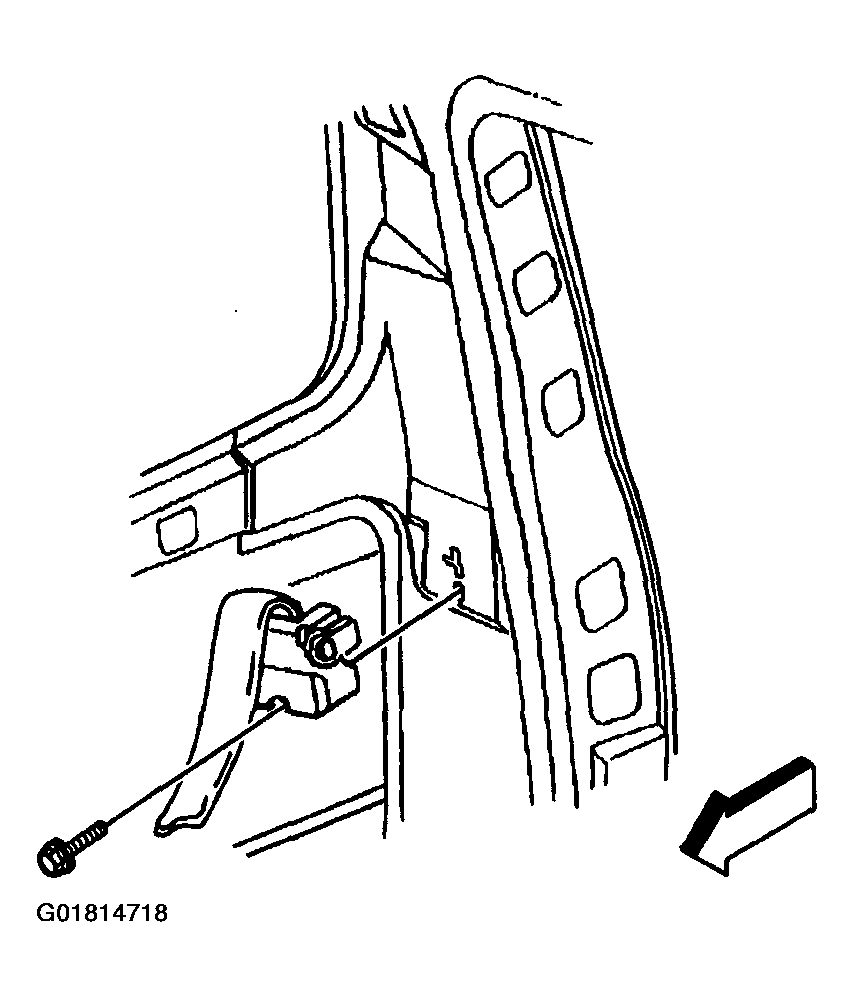

    Fig 2: Removing Seat Side Belt Retractor & Bolt (No. 3 Rear)
    G01814718Courtesy of GENERAL MOTORS CORP.
