Installation Procedure
WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
- Install the retractor side seat belt to the vehicle.

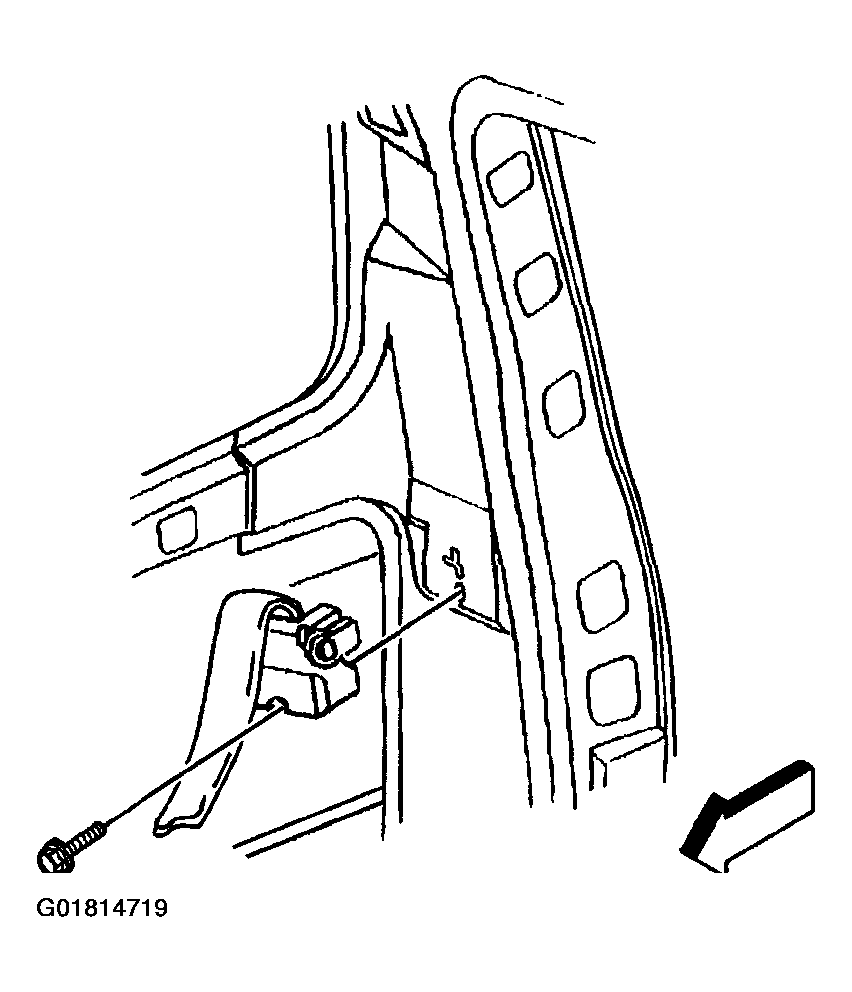

- Install the retractor to the vehicle.NOTE: Refer to FASTENER NOTICE .
- Use the J 29843-9
in order to install the bolt securing the retractor to the rear window pillar.
Tighten
Tighten the seat belt retractor bolt rear window pillar to 43 N.m (32 lb ft).
- Install the drivers side rear quarter trim with RPO-C34 rear AC only. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .

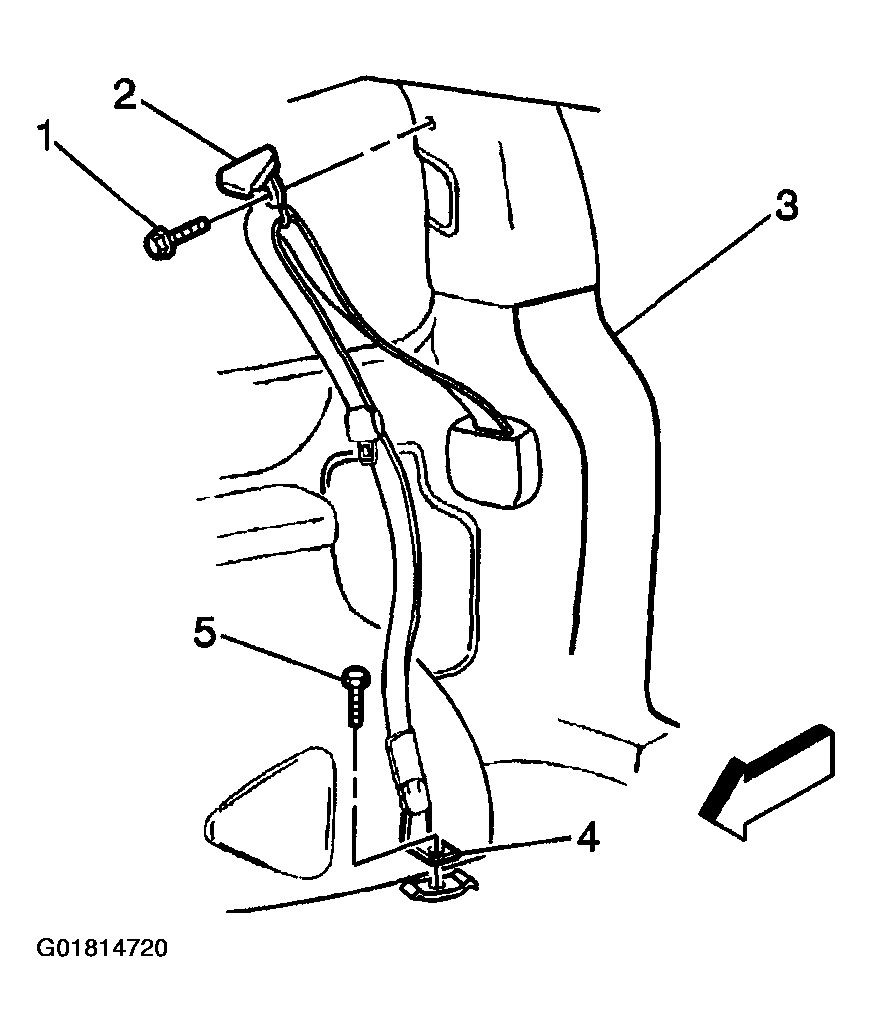

- Slide the belt webbing through the slotted trim cover. The snap the plastic trim cover to the rear window pillar (3) trim panel.
- Install the lower seat belt anchor (4) to the floor.
- Use the J 29843-9
in order to install the bolt (5) securing the lower seat belt anchor (4) to the floor.
Tighten
Tighten the lower seat belt anchor bolt rear window pillar to 43 N.m (32 lb ft).
- Install the upper seat belt anchor (1) to the rear window pillar (3).
- Use the J 29843-9
in order to install the bolt (1) securing the upper seat belt anchor to the window pillar (3).
Tighten
Tighten the upper seat belt anchor bolt rear window pillar to 43 N.m (32 lb ft).
- Install the cover (2) to the upper seat belt anchor.
