Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the retractor side seat belt from the hook and loop on the retainer.
  2. Remove the hook and loop seat belt retainer from the headliner.

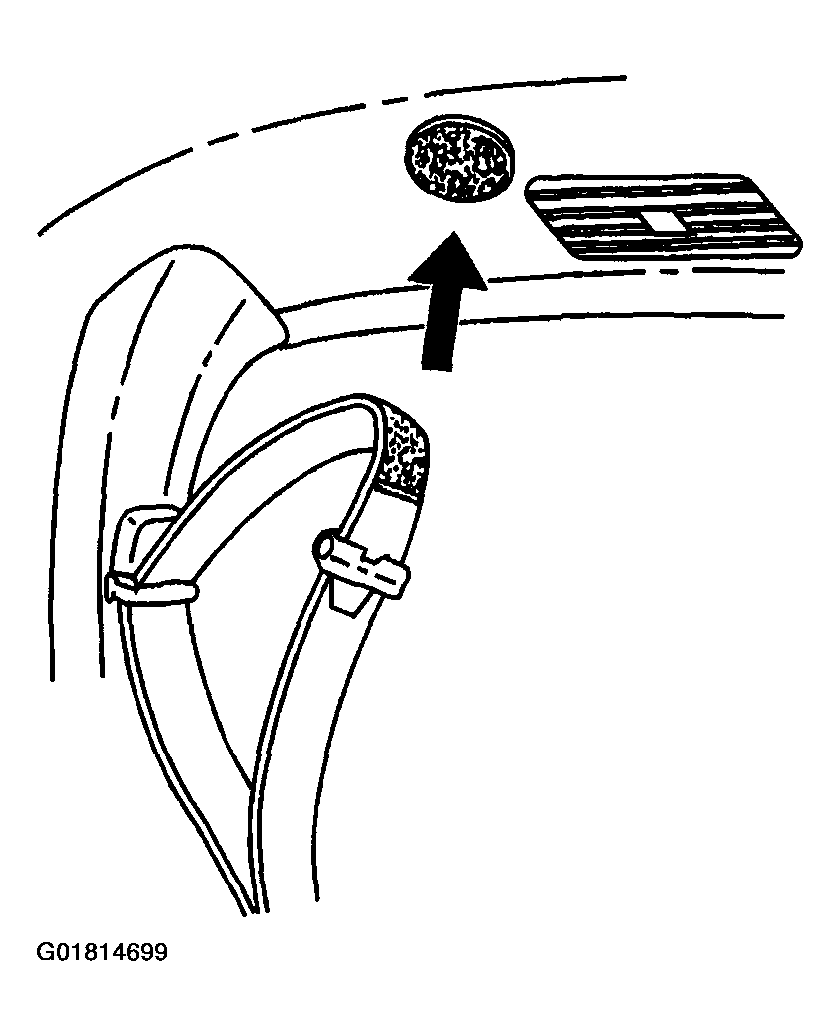

    Fig 1: Removing Hook & Loop Seat Belt Retainer
    G01814699Courtesy of GENERAL MOTORS CORP.
