Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat. Refer to SEAT REPLACEMENT - REAR .
  2. Remove the recliner trim cover. Refer to SEAT BACK RECLINER COVER REPLACEMENT - REAR .
  3. Remove the rear seat riser. Refer to SEAT RISER REPLACEMENT - REAR .
  4. Remove the seat cushion cover retainers from the seat frame.
  5. Remove the bolts securing the buckle side belts from the seat cushion frame.

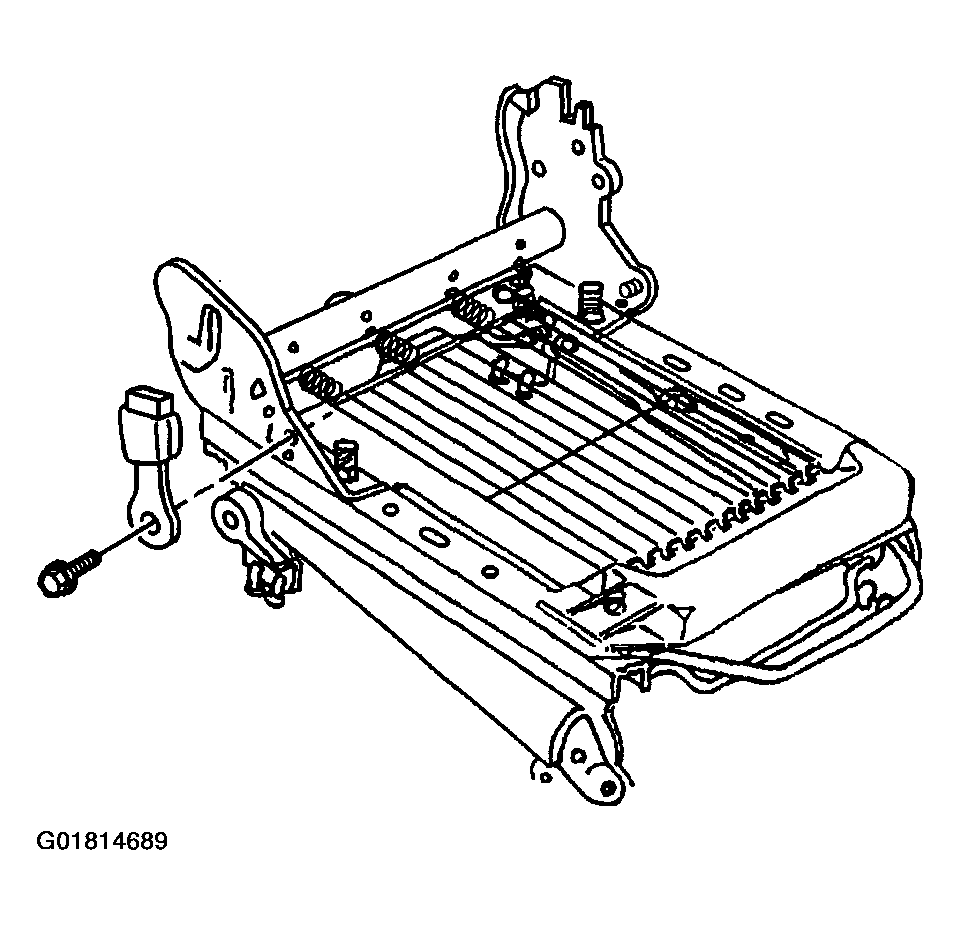

    Fig 1: Removing Rear Bucket Seat Buckle Side Belts & Bolt (60/40 Split Bench)
    G01814689Courtesy of GENERAL MOTORS CORP.
  6. Remove the buckle side belts (1) from the seat.
  7. Remove the bolt (2) securing the mini-buckle from the 60 percent seat cushion frame.

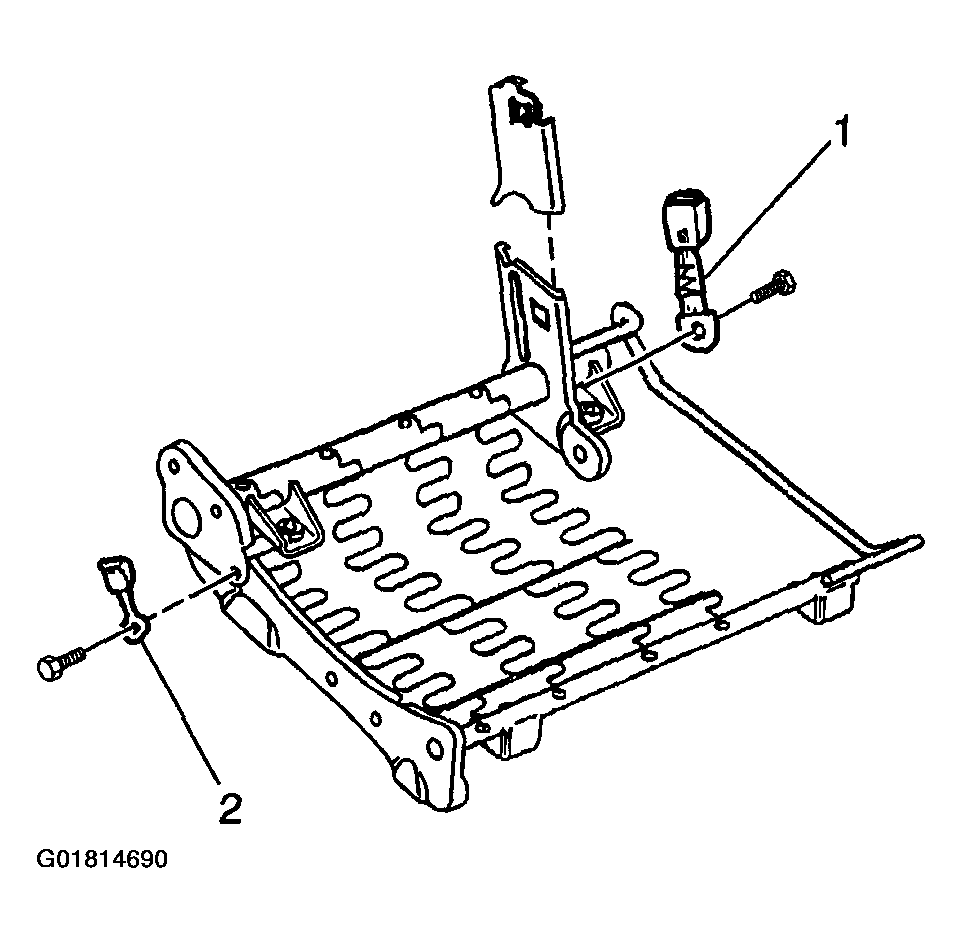

Fig 2: Removing Buckle Side Belts, Bolt & Seat Cushion Frame (60/40 Split Bench)
G01814690Courtesy of GENERAL MOTORS CORP.
