Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bolt (2) securing the mini-buckle to the 60 percent seat cushion frame.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the buckle side belts (1) to the seat.

    Tighten

    Tighten the mini-buckle bolt to 53 N.m (39 lb ft).

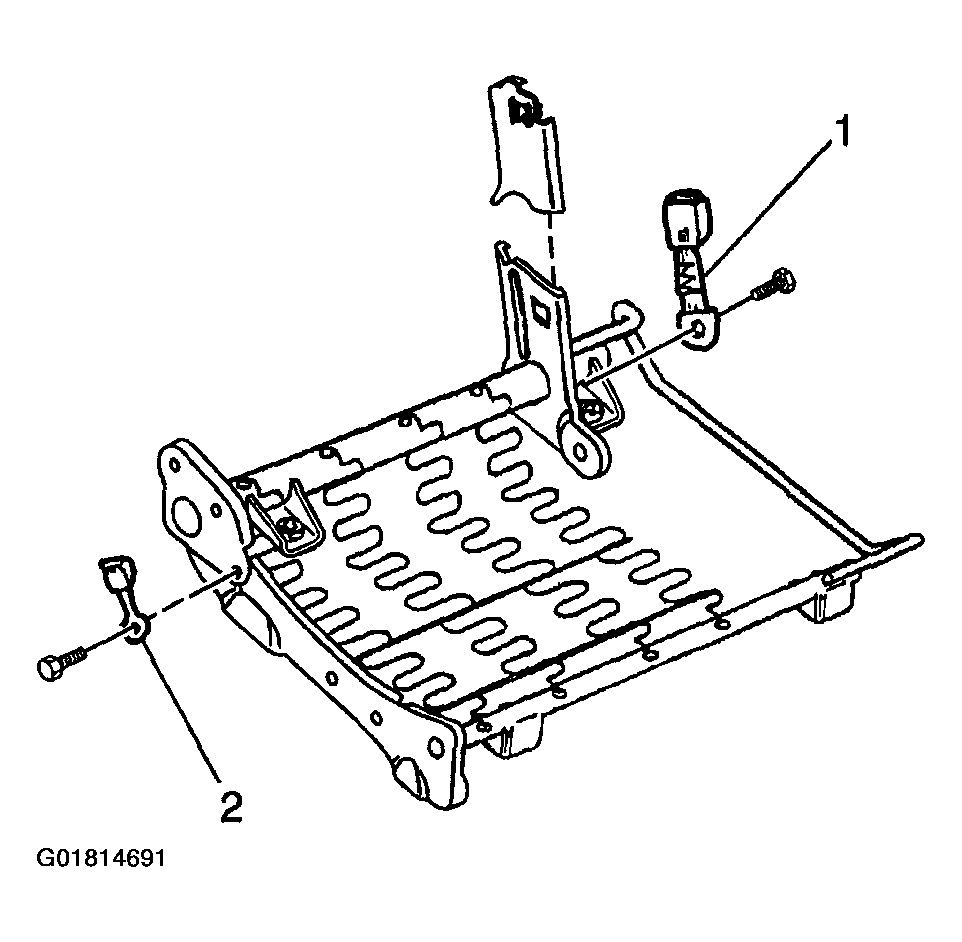

    Fig 1: Installing Buckle Side Belts, Bolt & Seat Cushion Frame (60/40 Split Bench)
    G01814691Courtesy of GENERAL MOTORS CORP.
  3. Install the bolts securing the buckle side belts to the seat cushion frame.

    Tighten

    Tighten the rear seat buckle belt bolts to 53 N.m (39 lb ft).

  4. Install the seat cushion cover retainers to the seat frame.
  5. Install the rear seat riser. Refer to SEAT RISER REPLACEMENT - REAR .
  6. Install the recliner trim cover. Refer to SEAT BACK RECLINER COVER REPLACEMENT - REAR .
  7. Install the rear seat. Refer to SEAT REPLACEMENT - REAR .

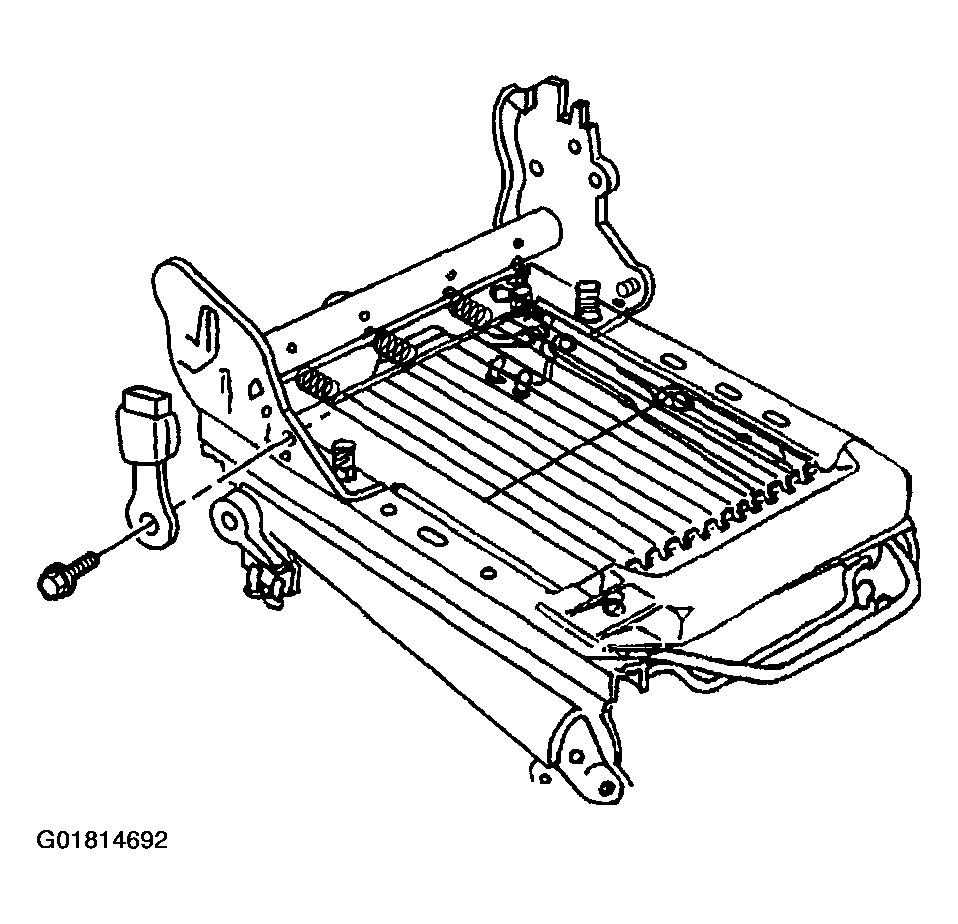

    Fig 2: Installing Rear Bucket Seat Buckle Side Belts & Bolt (60/40 Split Bench)
    G01814692Courtesy of GENERAL MOTORS CORP.
