Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the buckle side belt to the seat.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the nut (2) securing buckle side belt (1) to the seat cushion frame.

    Tighten

    Tighten the rear seat buckle belt nut to 53 N.m (39 lb ft).

  3. Install the seat cushion finish covers. Refer to SEAT TRIM REPLACEMENT - SIDE .

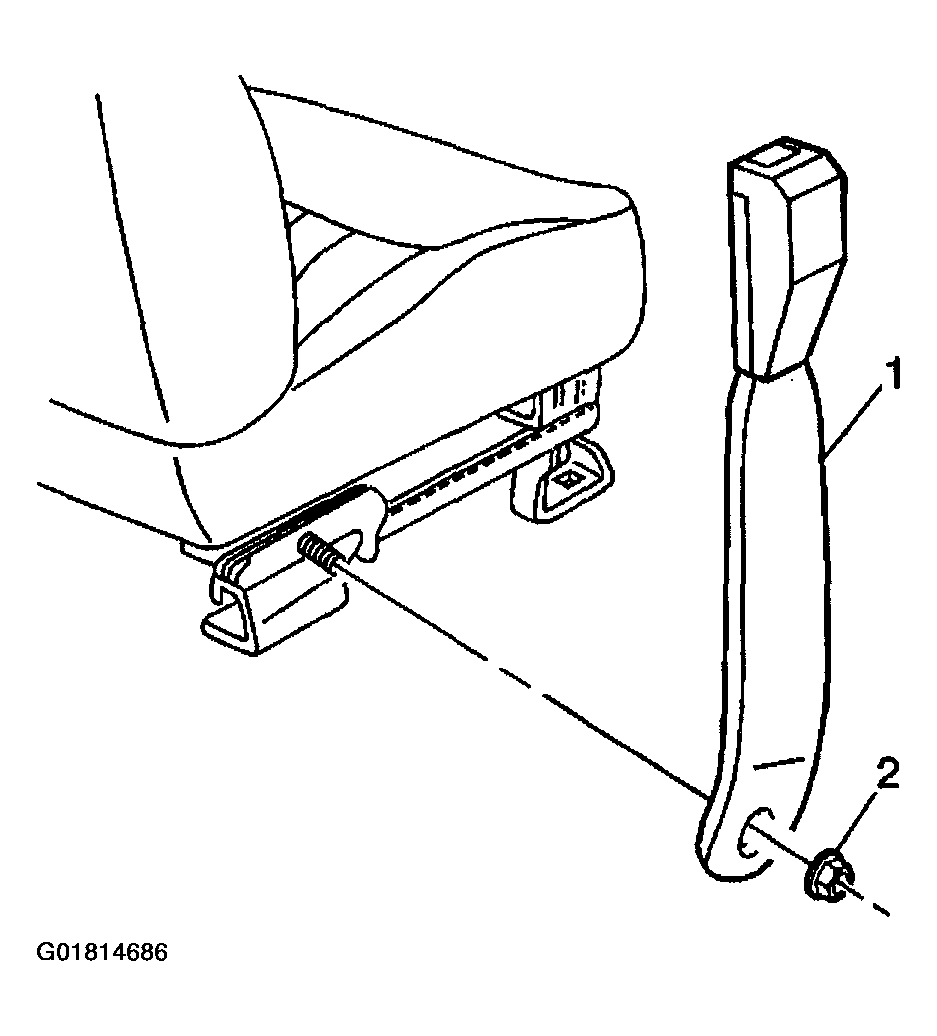

    Fig 1: Installing Nut & Buckle Side Belt (Captains Chair)
    G01814686Courtesy of GENERAL MOTORS CORP.
