Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the buckle side belt to the seat.
    NOTE: Refer to FASTENER NOTICE .
  2. Use the J 29843-9  in order to install the bolt securing the rear seat bucket side belt to the seat.

    Tighten

    Tighten the rear seat buckle belt bolt to 53 N.m (39 lb ft).

  3. Install the cushion cover down over the buckle side belt bolt.

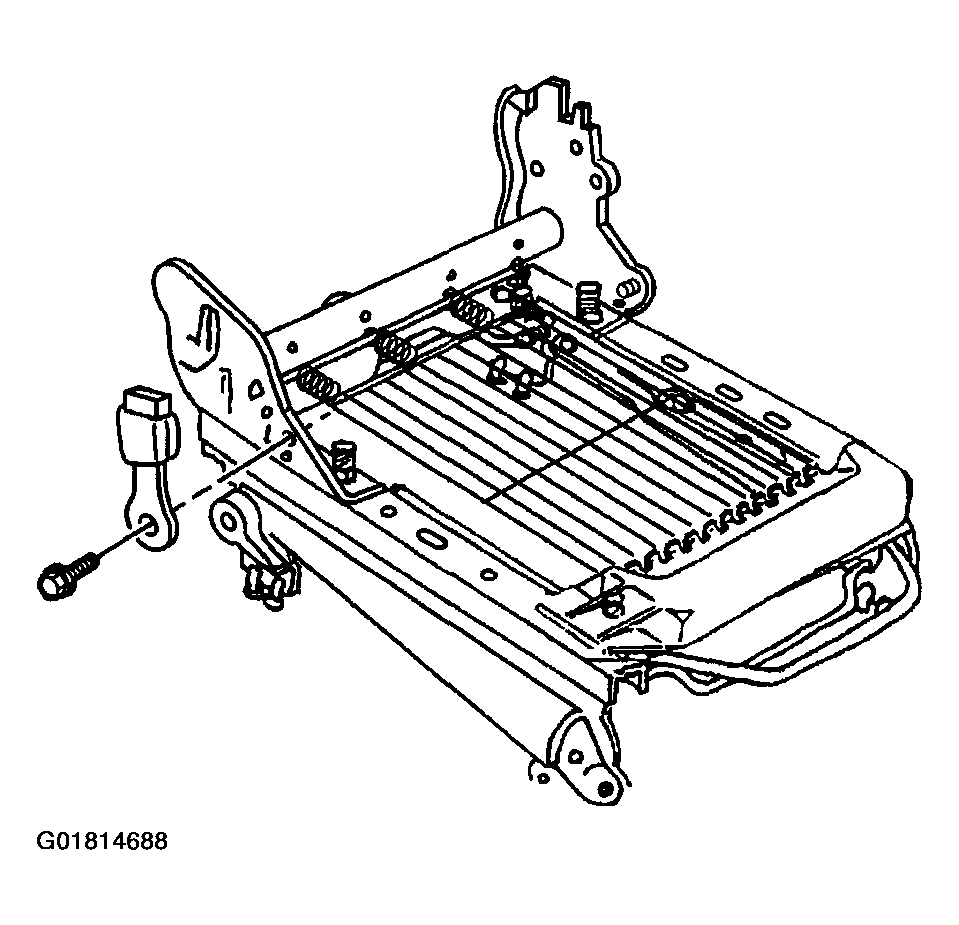

    Fig 1: Installing Rear Bucket Seat Buckle Side Belts & Bolt (Bucket Seat)
    G01814688Courtesy of GENERAL MOTORS CORP.
