Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat inboard finish panel. Refer to SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT .
  2. Remove the nut (2) securing the buckle side belt (1) from the seat cushion frame.
  3. Remove the buckle side belt form the seat.

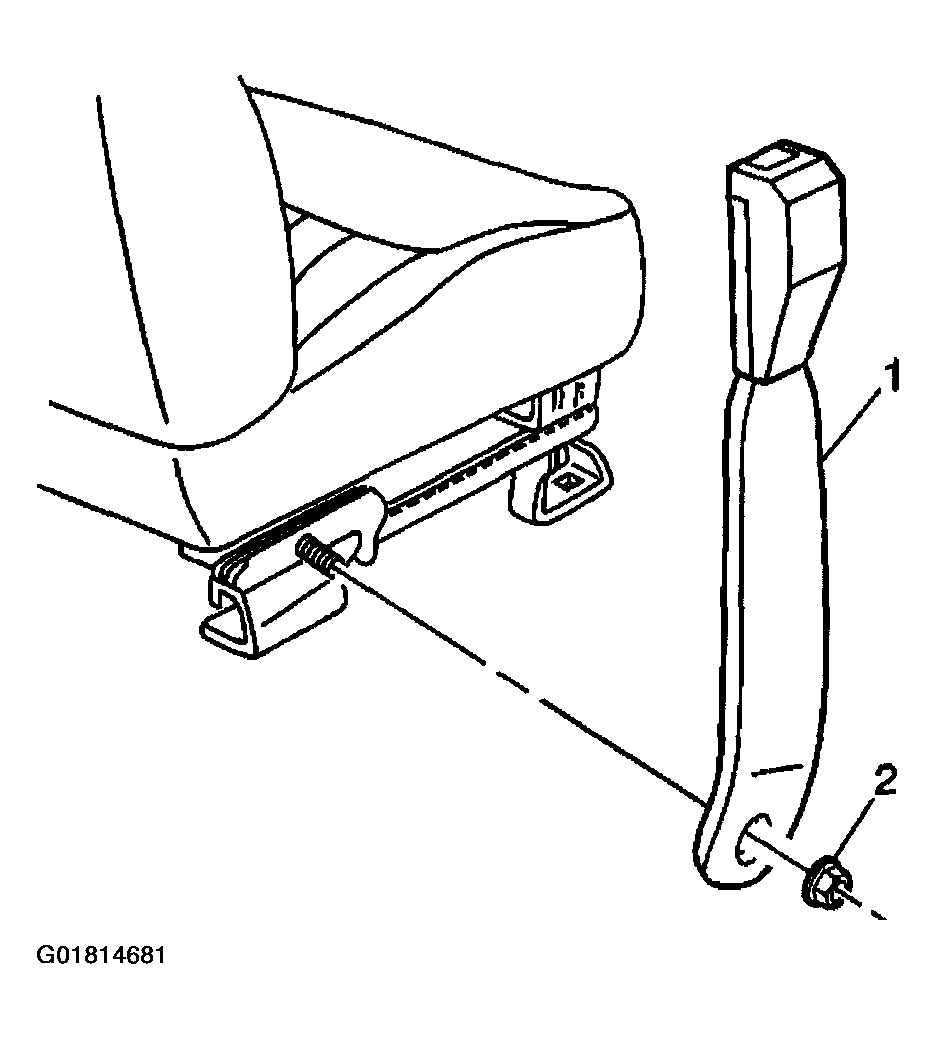

    Fig 1: Removing Nut & Buckle Side Belt (Left Front)
    G01814681Courtesy of GENERAL MOTORS CORP.
