Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the buckle side belt (1) to the seat.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the nut (2) securing the buckle side belt to the seat cushion frame.

    Tighten

    Tighten the front seat buckle side belt nut to 53 N.m (39 lb ft).

  3. Install the front seat inboard finish panel. Refer SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT .

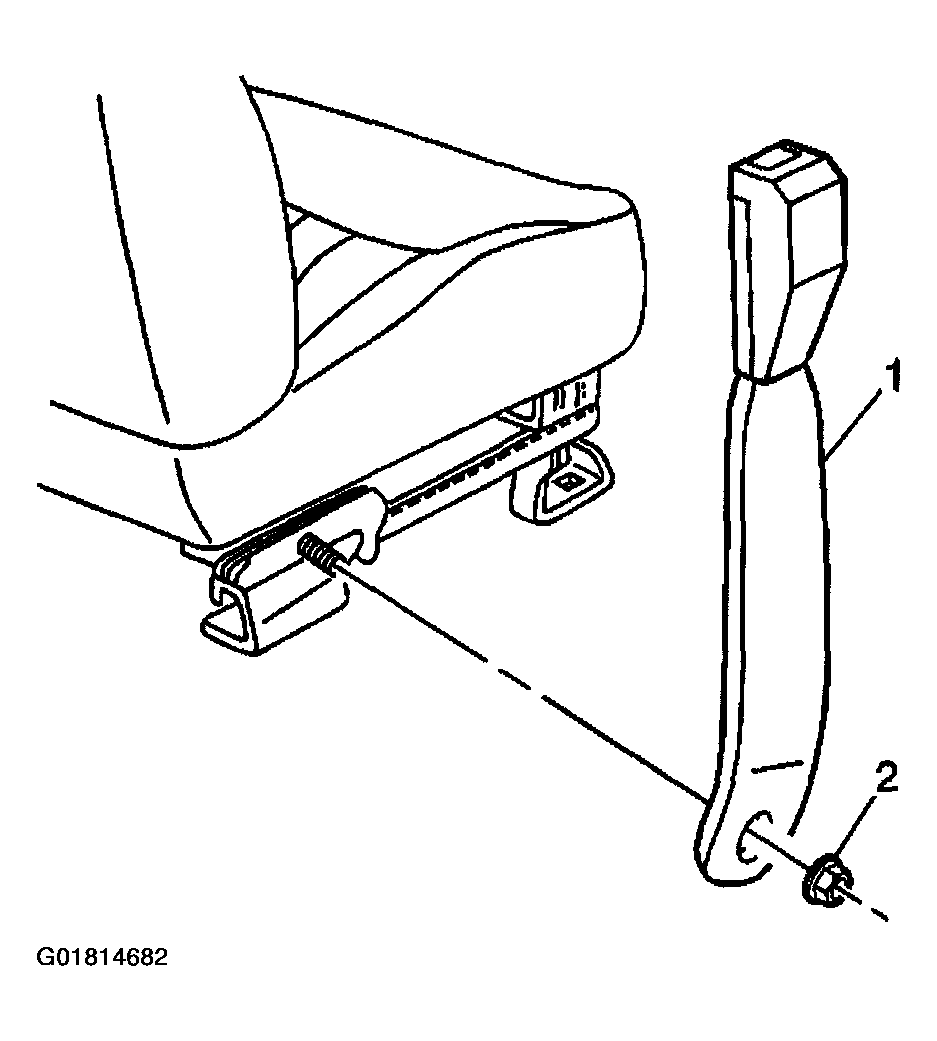

    Fig 1: Installing Nut & Buckle Side Belt (Left Front)
    G01814682Courtesy of GENERAL MOTORS CORP.
