Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: The child seat tether attaches or anchors in two different ways. The tether strap attaches to the third row outboard lower seat belt anchor bracket or the third row seat rise depending on the seat configurations. Use the child seat tether strap only in the second row.
  1. Slide the rear seat belt sleeve to the upward position in order to expose the tether strap anchor.
  2. Remove the tether strap spring clip from the seat belt anchor page.

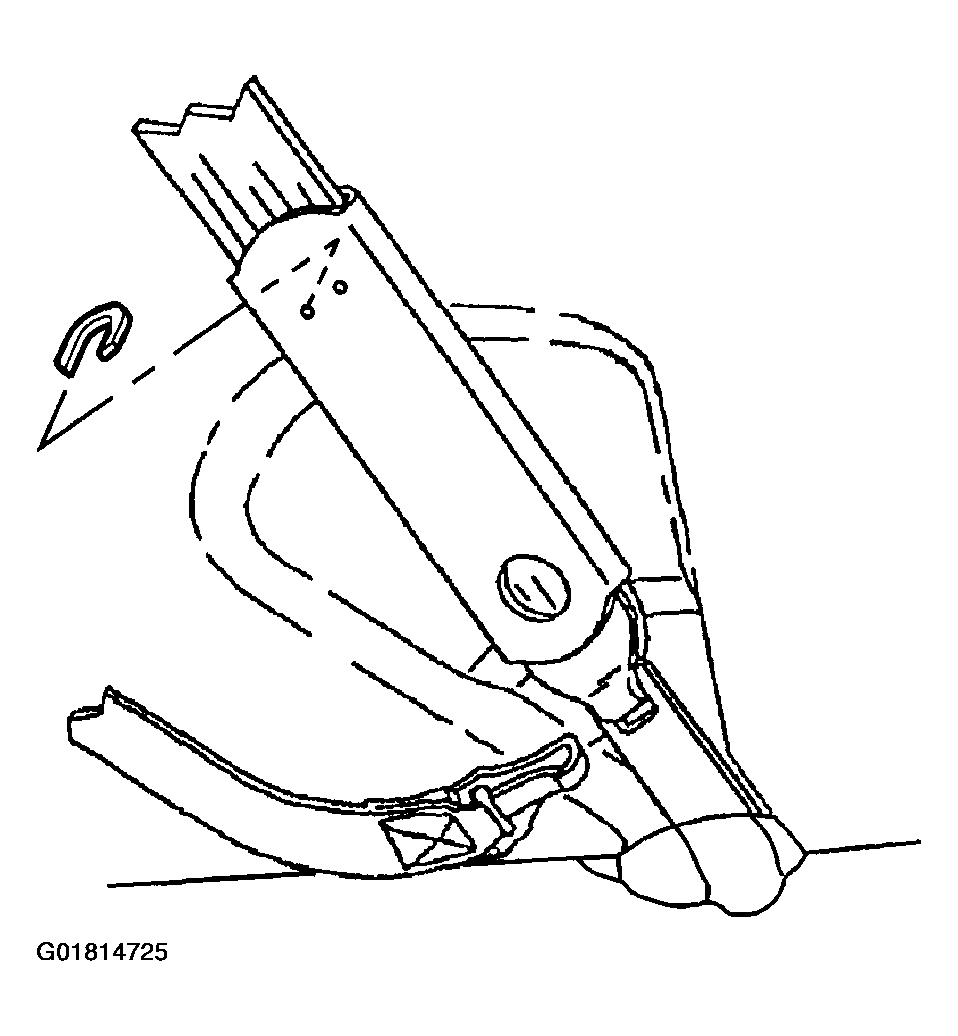

    Fig 1: Removing Tether Strap Spring Clip (Outboard-Third Row Seat)
    G01814725Courtesy of GENERAL MOTORS CORP.
  3. Remove the tether strap from underneath the head restraint if equipped.
  4. Remove the tether strap from the vehicle.

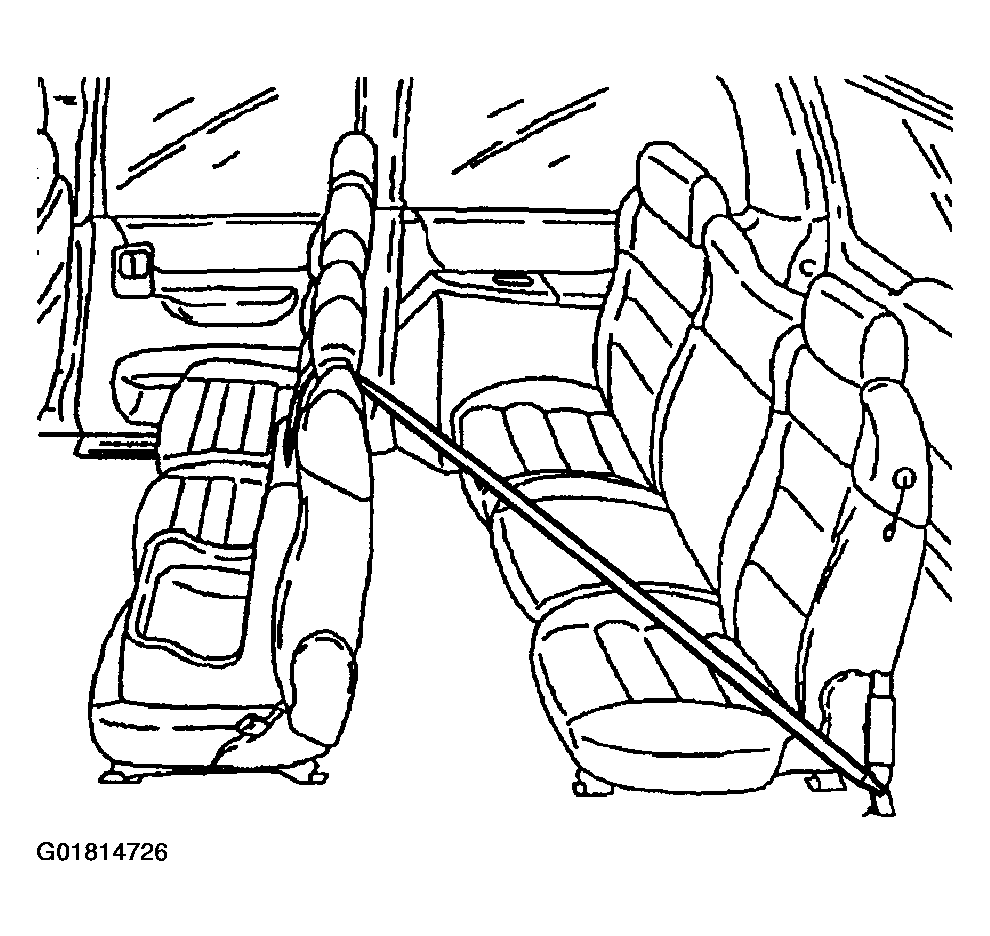

    Fig 2: Removing Tether Strap (Outboard-Third Row Seat)
    G01814726Courtesy of GENERAL MOTORS CORP.
