Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the tether strap underneath the second row seat head restraint if equipped.

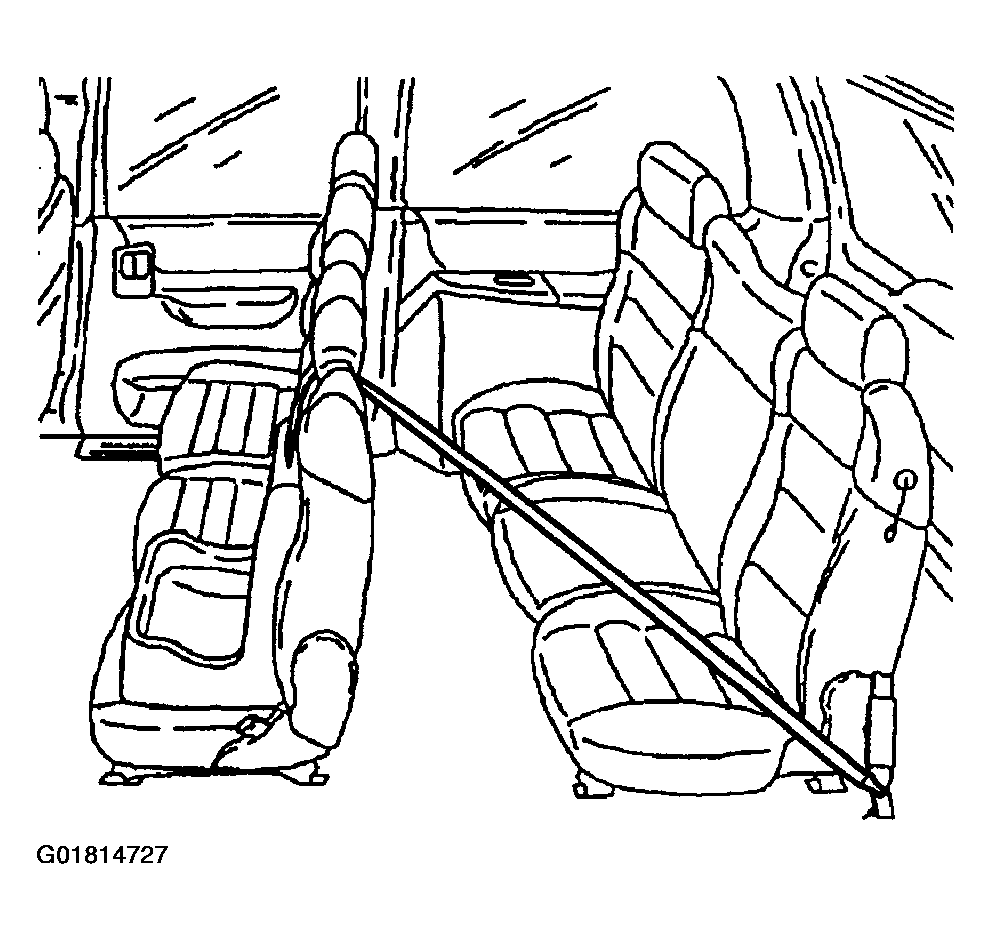

    Fig 1: Installing Tether Strap (Outboard-Third Row Seat)
    G01814727Courtesy of GENERAL MOTORS CORP.
  2. Remove the staple from the seat belt anchor sleeve. Then discard the staple.
  3. Slide the sleeve to the upward position in order to expose the seat belt anchor.
  4. Install the tether strap spring clip to the anchor plate. Verify that the spring clip end closes once the tether strap spring clip is attached to the anchor plate.

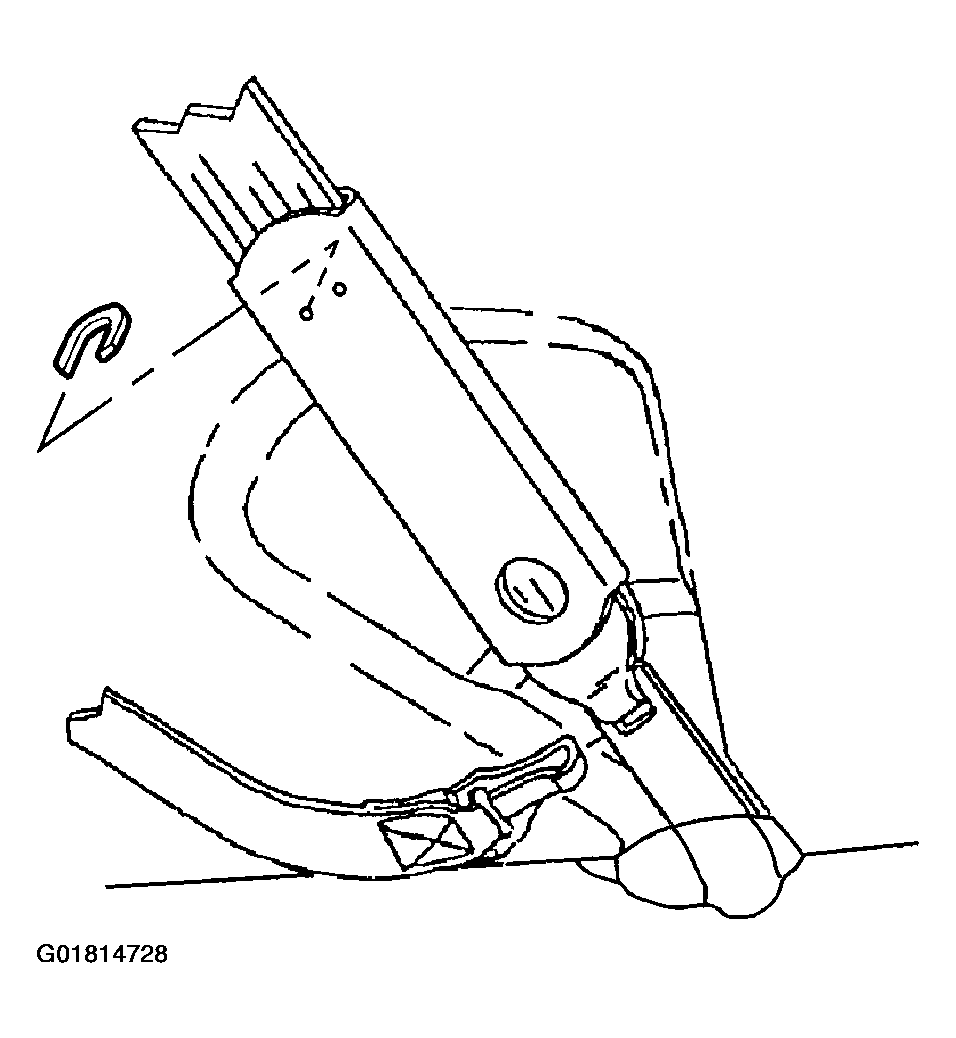

    Fig 2: Installing Tether Strap Spring Clip (Outboard-Third Row Seat)
    G01814728Courtesy of GENERAL MOTORS CORP.
