Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tether strap spring clip from the anchor plate.
    Fig 1: Removing Tether Strap Spring Clip (Outboard-No Third Row Seat)
    G01814729Courtesy of GENERAL MOTORS CORP.
  2. Remove the tether strap from underneath the second row seat head restraint if equipped.
  3. Remove the tether strap from the vehicle.

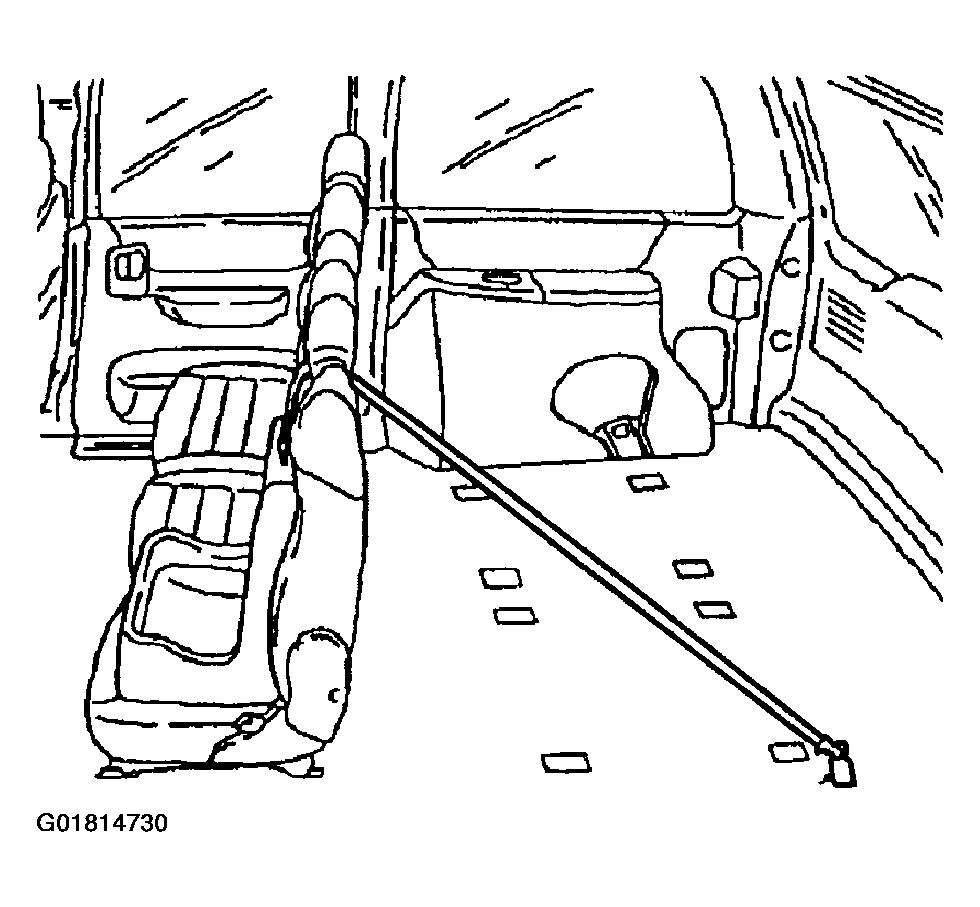

    Fig 2: Removing Tether Strap (Outboard-No Third Row Seat)
    G01814730Courtesy of GENERAL MOTORS CORP.
