Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the tether strap underneath the second row seat head restraint if equipped.
  2. Remove the carpet that covers the third row outboard anchor hole in the floor. The anchor hole location is 45 mm (1.77 in) inboard of the third row quarter trim panel. The anchor hole location is 440-600 mm (17.32-23.62 in) forward to the rear door.

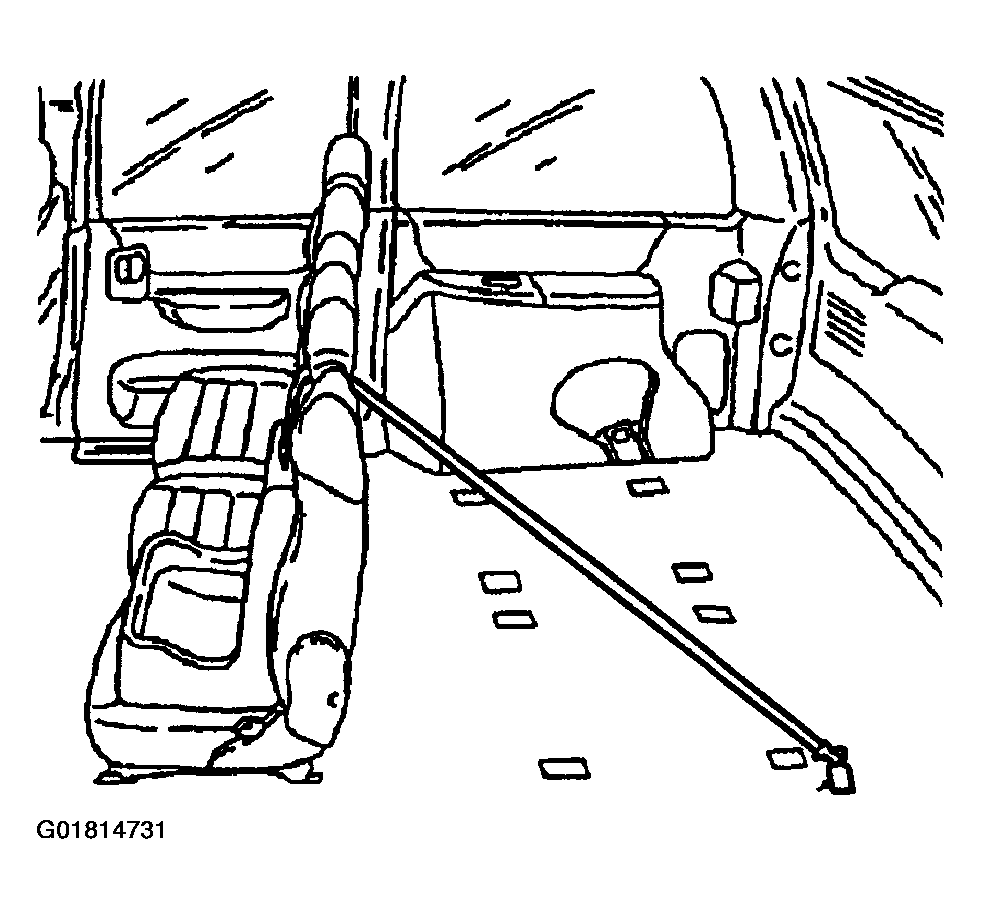

    Fig 1: Installing Tether Strap (Outboard-No Third Row Seat)
    G01814731Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the anchor bracket to the floor. Secure the anchor bracket with a bolt.

    Tighten

    Tighten the child seat tether strap anchor bracket bolt to 43 N.m (32 lb ft).

  4. Install the tether strap spring clip to the anchor plate. Verify that the spring clip end closes once the spring is attached to the anchor plate.

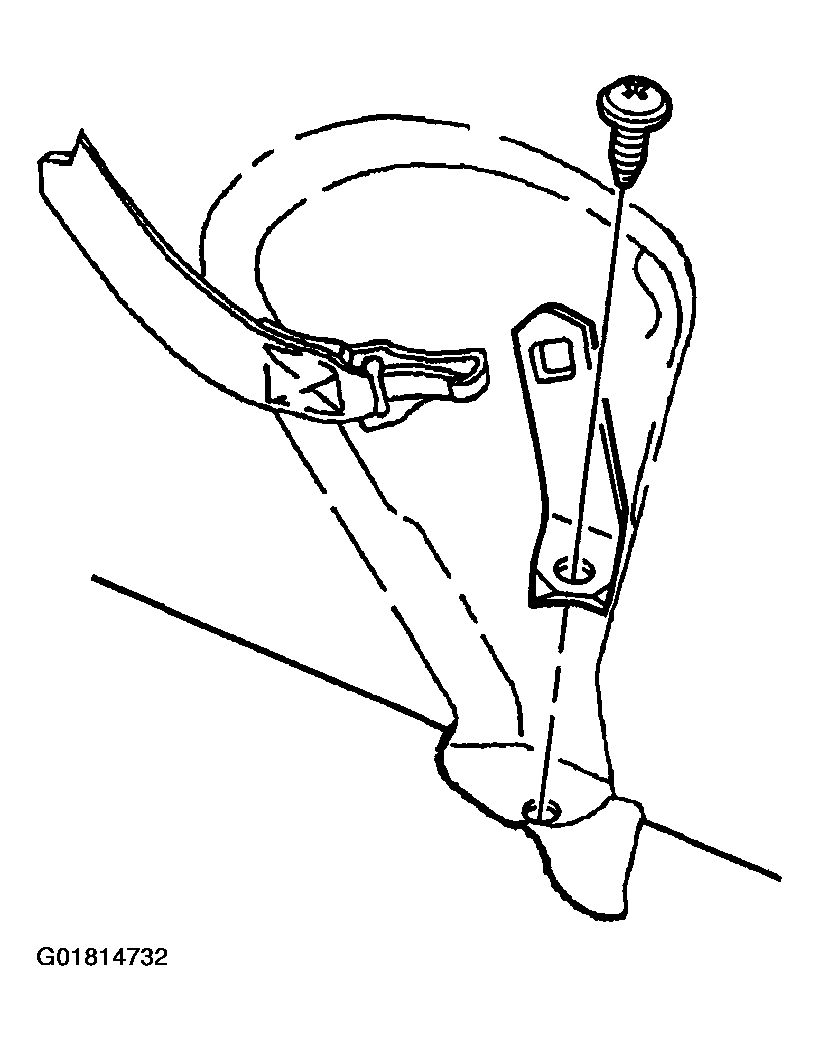

    Fig 2: Installing Tether Strap Spring Clip (Outboard-No Third Row Seat)
    G01814732Courtesy of GENERAL MOTORS CORP.
