Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water pump gasket.
  2. Install the water pump.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the water pump bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

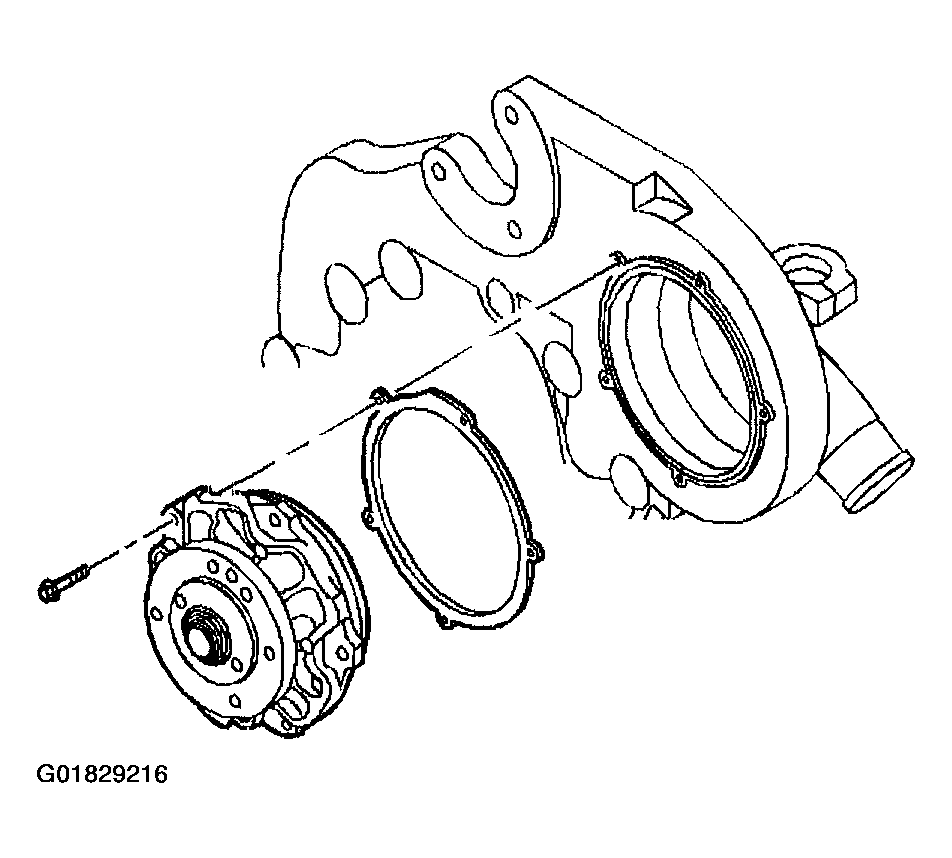

    Fig 1: Installing Water Pump, Gasket & Bolts
    G01829216Courtesy of GENERAL MOTORS CORP.
  4. Install the water pump pulley. Loosely install the mounting bolts.
  5. Install the drive belt. Refer to DRIVE BELT REPLACEMENT .
  6. Install the water pump pulley bolts.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

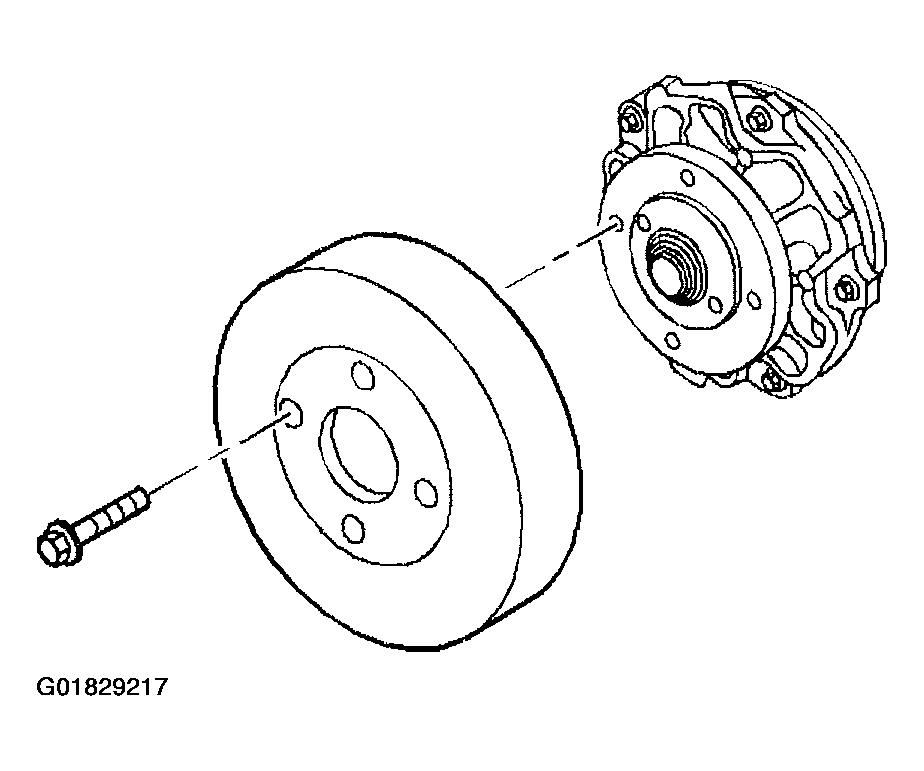

    Fig 2: Installing Water Pump Pulley Bolts
    G01829217Courtesy of GENERAL MOTORS CORP.
  7. Install the drive belt guard.
  8. Fill the cooling system. Refer to Draining and Filling Cooling System .
  9. Inspect the cooling system for leaks.

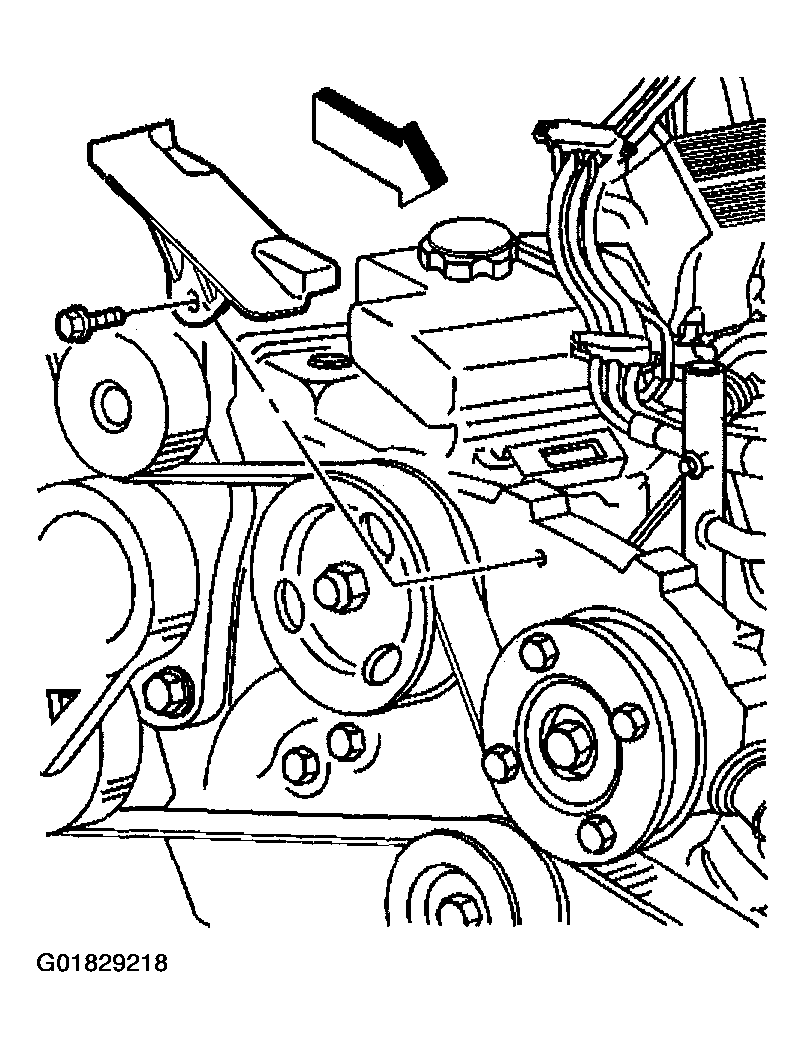

    Fig 3: Installing Drive Belt, Drive Belt Guard & Bolts
    G01829218Courtesy of GENERAL MOTORS CORP.
