Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the throttle body heater outlet hose.
  2. Use the J 38185  in order to install the hose clamps.
  3. Fill the cooling system. Refer to Draining and Filling Cooling System .
  4. Install the air cleaner and duct assembly.

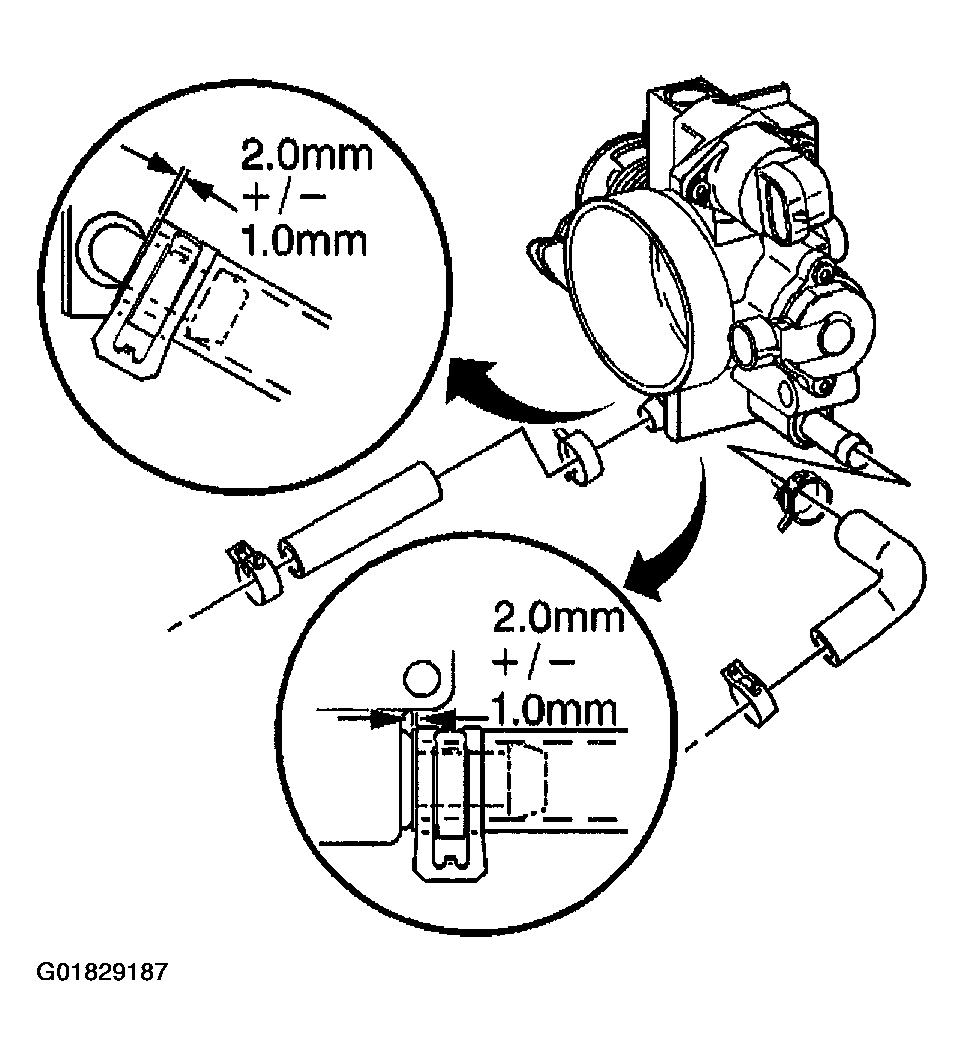

    Fig 1: Installing Throttle Body Heater Outlet Hose
    G01829187Courtesy of GENERAL MOTORS CORP.
