Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner and duct assembly.
  2. Remove the throttle cable bracket in order to gain access to the throttle body heater hose clamp.
  3. Drain the coolant until the coolant level is below the throttle body heater hoses. Refer to Draining and Filling Cooling System .
  4. Use the J 38185  in order to remove the hose clamp.
  5. Remove the throttle body heater inlet hose.

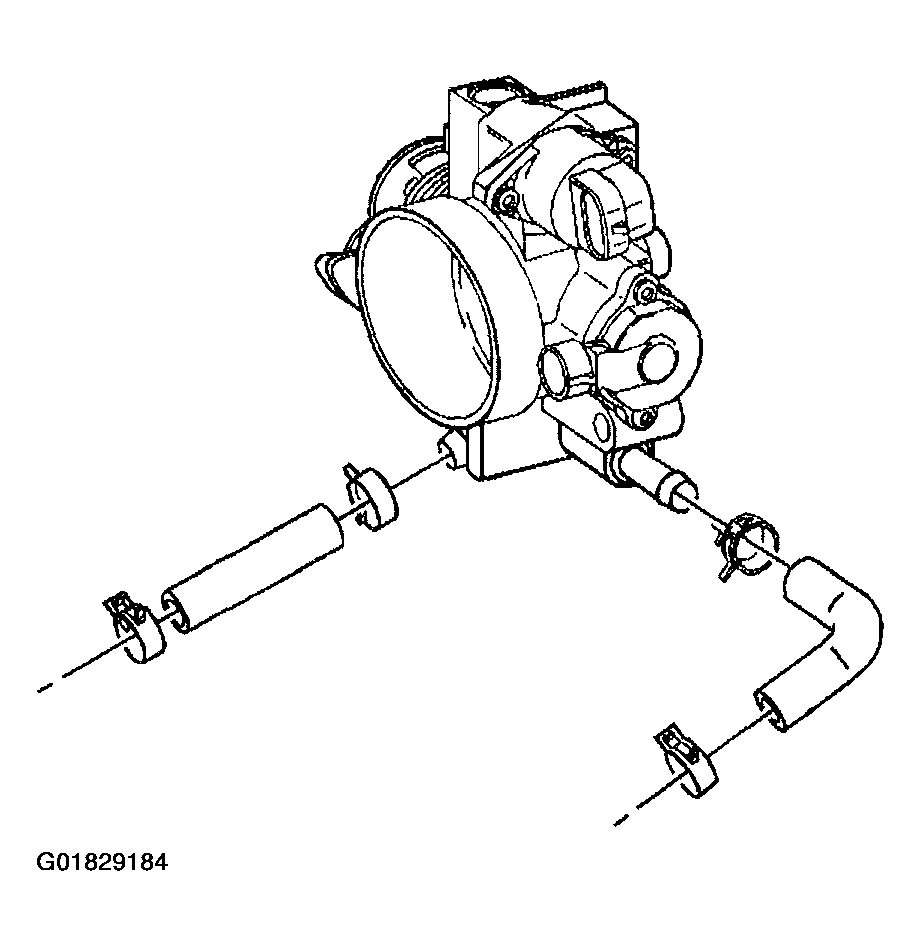

    Fig 1: Removing Throttle Body Heater Inlet Hose
    G01829184Courtesy of GENERAL MOTORS CORP.
