Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner and duct assembly.
  2. Drain the coolant until the coolant level is below the thermostat. Refer to Draining and Filling Cooling System .
  3. Remove the crossover exhaust pipe. Refer to EXHAUST CROSSOVER PIPE REPLACEMENT .
  4. Remove the radiator hose from the thermostat housing. Refer to RADIATOR HOSE REPLACEMENT - Inlet .
  5. Remove the thermostat housing bolts and clean any sealer from the bolt threads.
  6. Remove the thermostat housing and gasket.

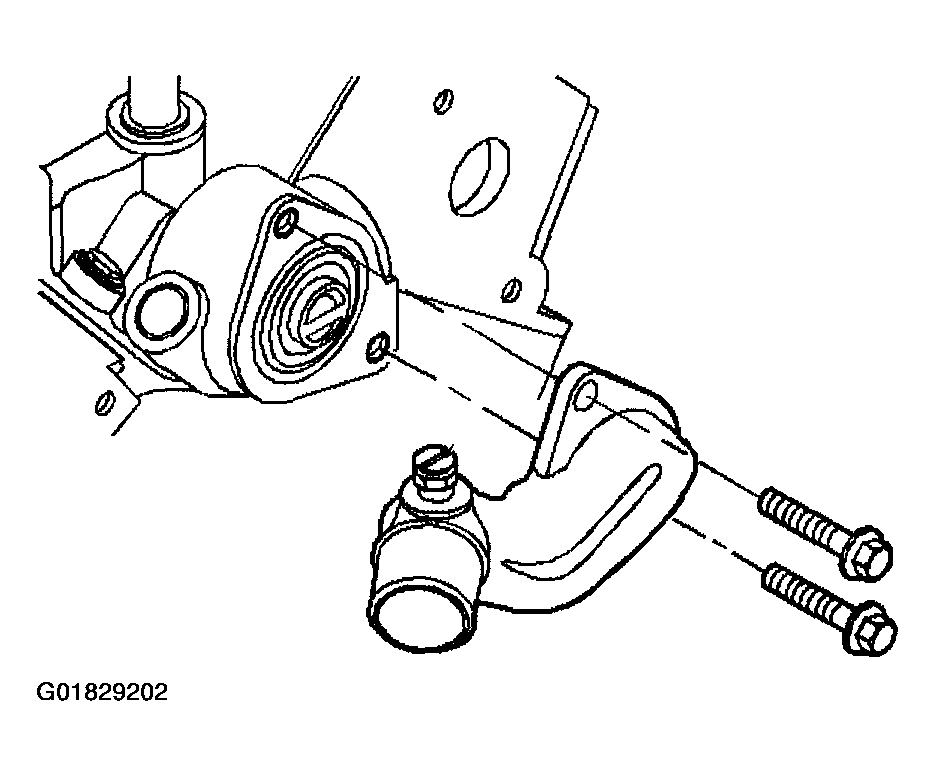

    Fig 1: Removing Thermostat Housing & Bolts
    G01829202Courtesy of GENERAL MOTORS CORP.
  7. Remove the thermostat.
  8. Clean the mating surfaces.

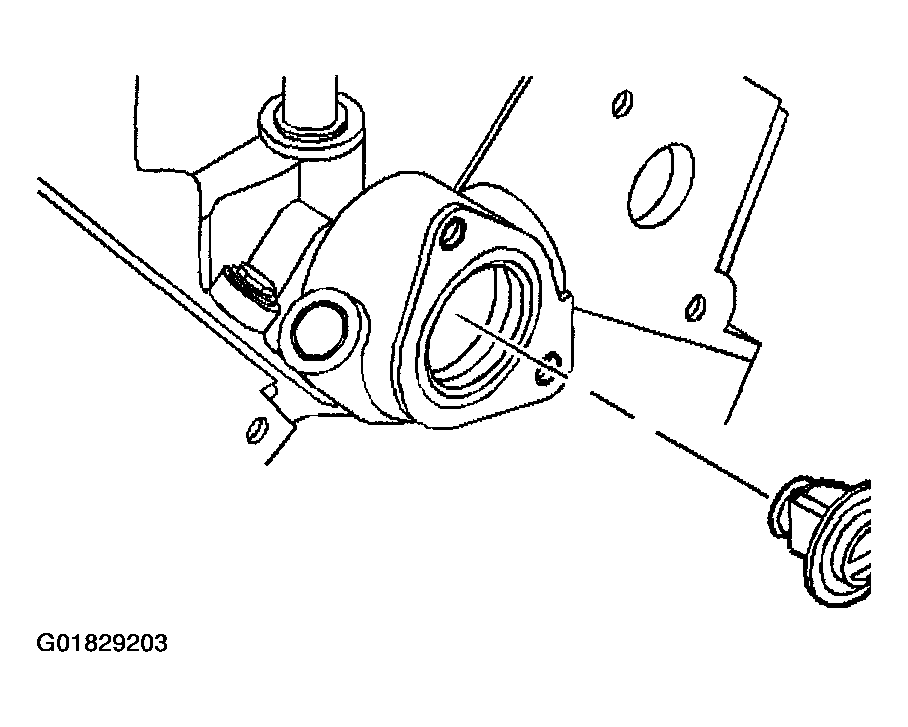

    Fig 2: Removing Thermostat
    G01829203Courtesy of GENERAL MOTORS CORP.
