Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Draining and Filling Cooling System .
  2. Reposition the hose clamp at the water pump housing using the J 38185.
  3. Disconnect the radiator outlet hose from the water pump housing.
  4. Reposition the hose clamp at the radiator using the J 38185.
  5. Disconnect the radiator outlet hose from the radiator.
  6. Remove the radiator outlet hose.

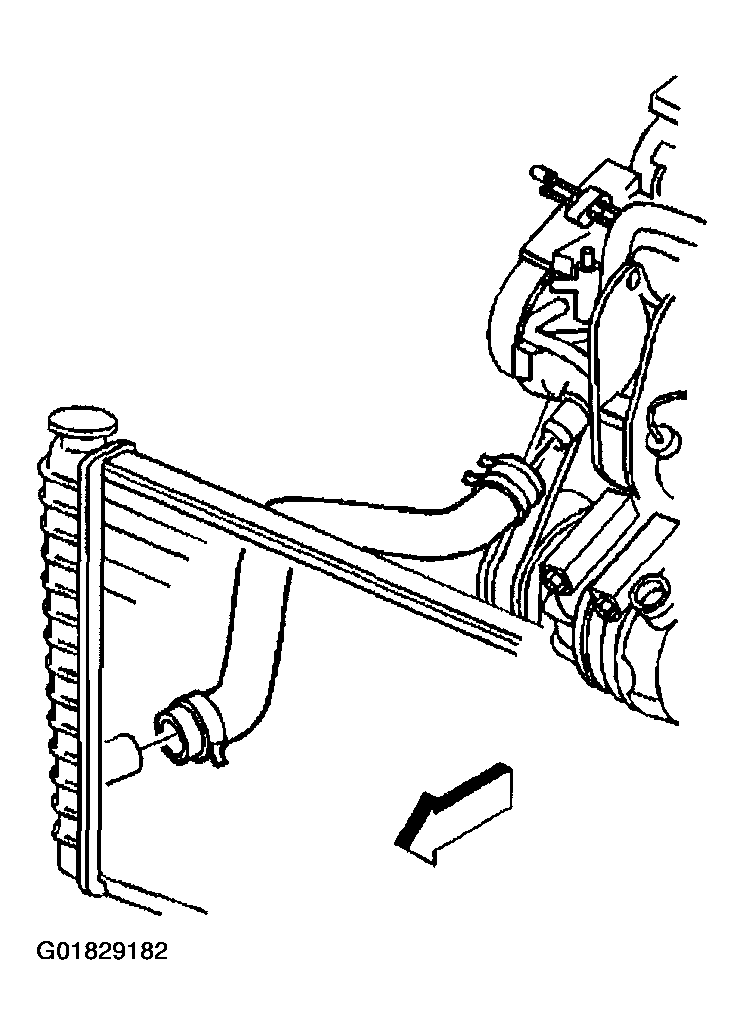

    Fig 1: Removing Radiator Outlet Hose
    G01829182Courtesy of GENERAL MOTORS CORP.
