Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the outlet hose.
  2. Connect the outlet hose to the radiator.
  3. Reposition the hose clamp at the radiator to secure the hose using the J 38185.
  4. Connect the outlet hose to the water pump housing.
  5. Reposition the hose clamp at the water pump housing to secure the hose using the J 38185.
  6. Fill the coolant. Refer to Draining and Filling Cooling System .

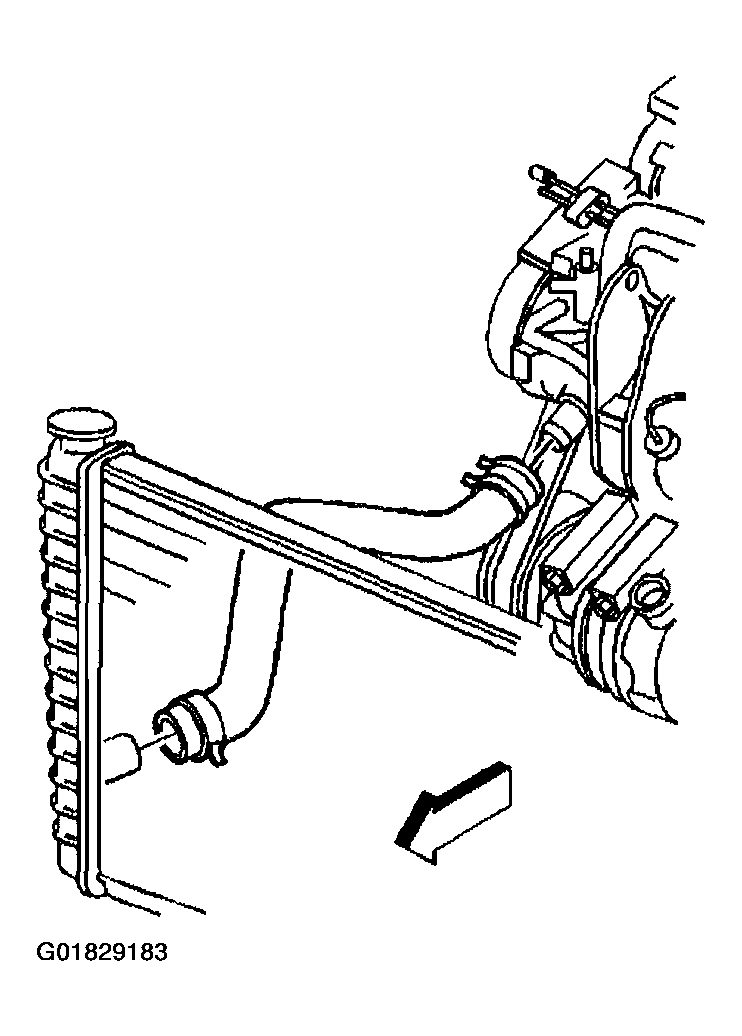

    Fig 1: Installing Radiator Outlet Hose
    G01829183Courtesy of GENERAL MOTORS CORP.
