Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Draining and Filling Cooling System .
  2. Reposition the hose clamp at the radiator using the J 38185.
  3. Disconnect the radiator inlet hose from the radiator.
  4. Reposition the hose clamp at the thermostat housing using the J 38185.
  5. Disconnect the radiator inlet hose from the thermostat housing.
  6. Remove the radiator inlet hose.

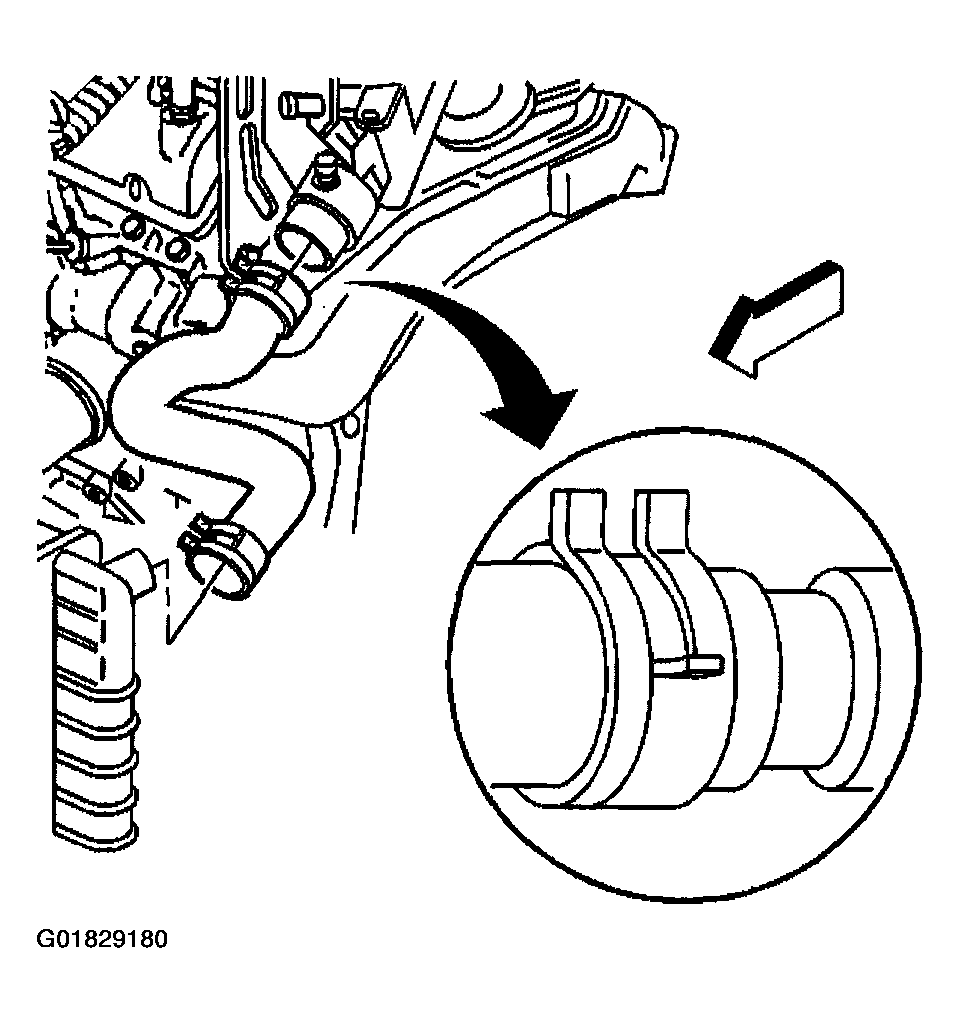

    Fig 1: Removing Radiator Inlet Hose
    G01829180Courtesy of GENERAL MOTORS CORP.
