Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the air baffle bolts.
  3. Remove the air baffle.

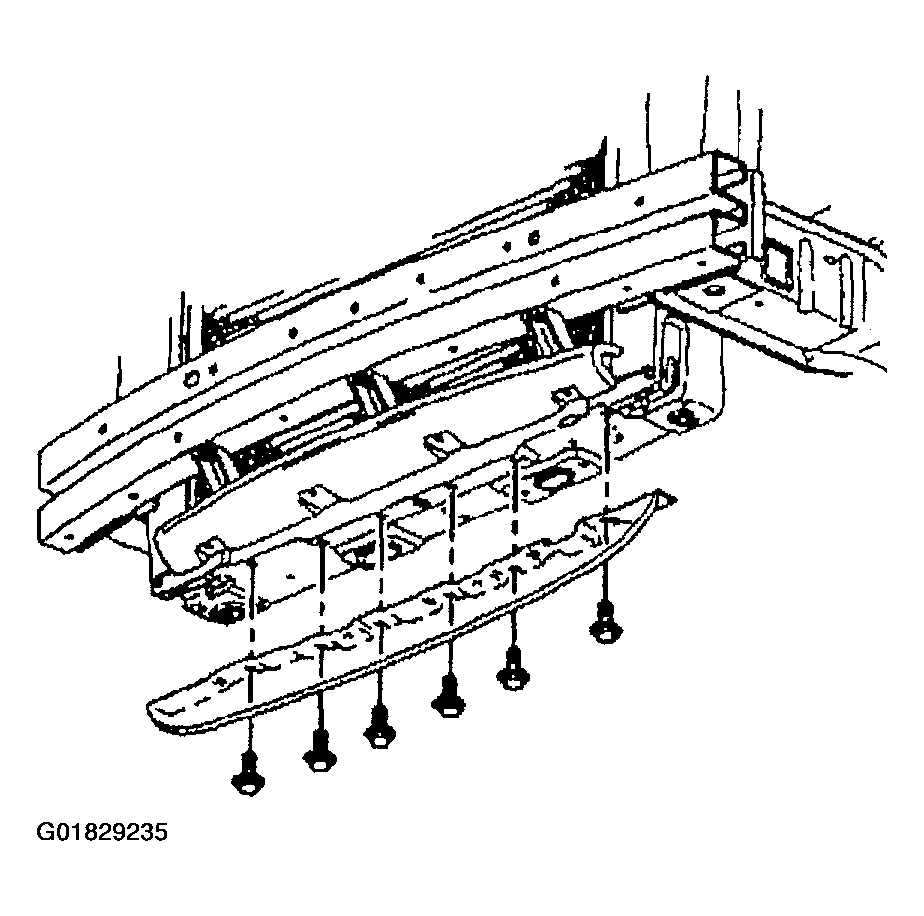

    Fig 1: Removing Air Baffle & Bolts
    G01829235Courtesy of GENERAL MOTORS CORP.
