Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air baffle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the air baffle bolts.

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

  3. Lower the vehicle.

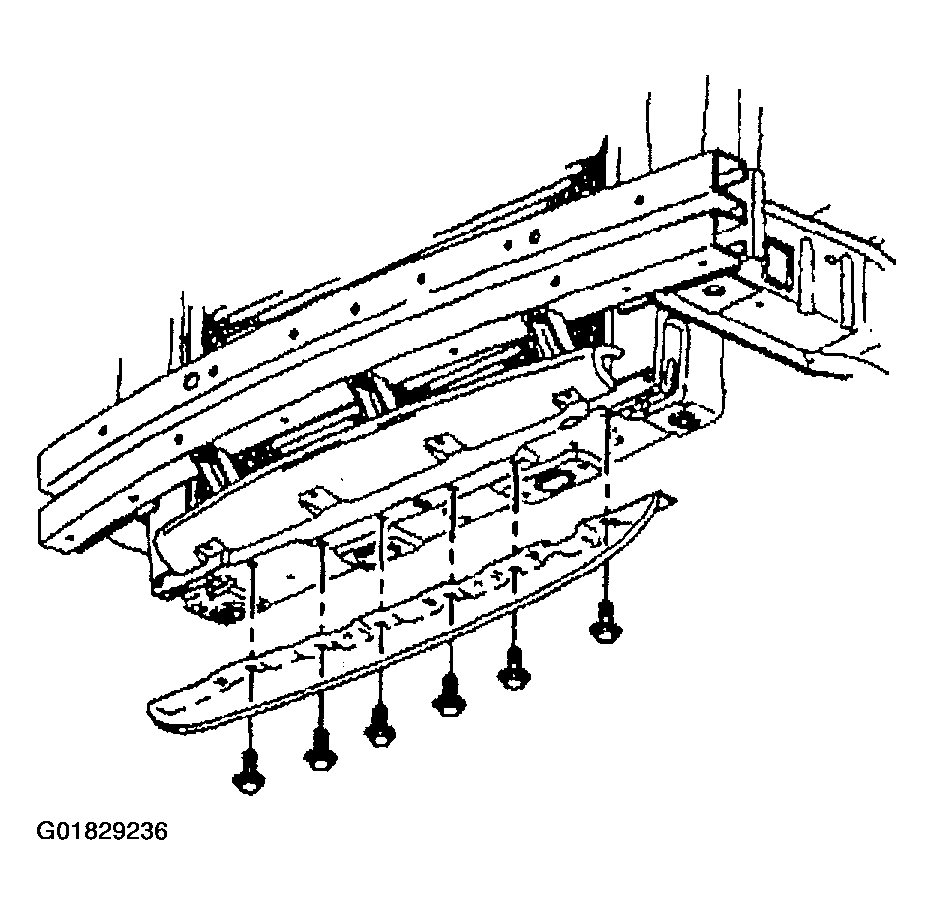

    Fig 1: Installing Air Baffle & Bolts
    G01829236Courtesy of GENERAL MOTORS CORP.
