Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the heat shields to the cooling fan shroud.

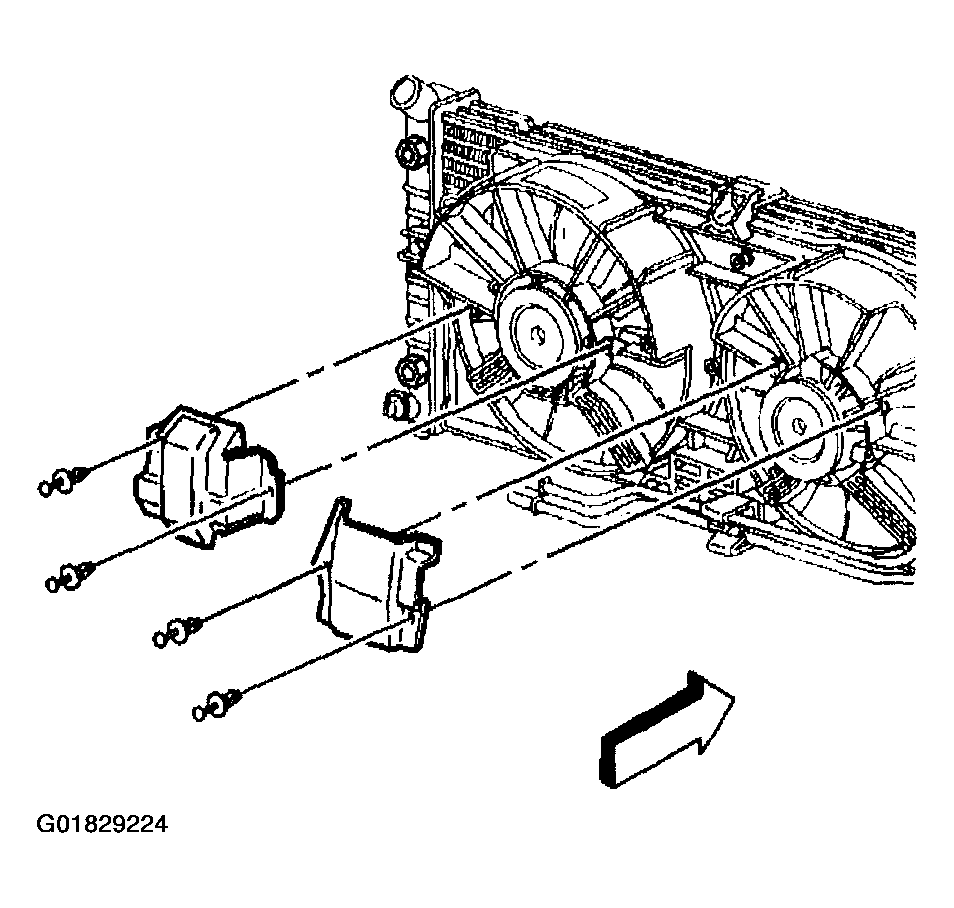

    Fig 1: Installing Heat Shields & Bolts
    G01829224Courtesy of GENERAL MOTORS CORP.
  2. Install the fan motors to the cooling fan shroud.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screws to the cooling fan motor.

    Tighten

    Tighten the screws to 6 N.m (53 lb in).

  4. Connect the cooling fan motor electrical connectors.

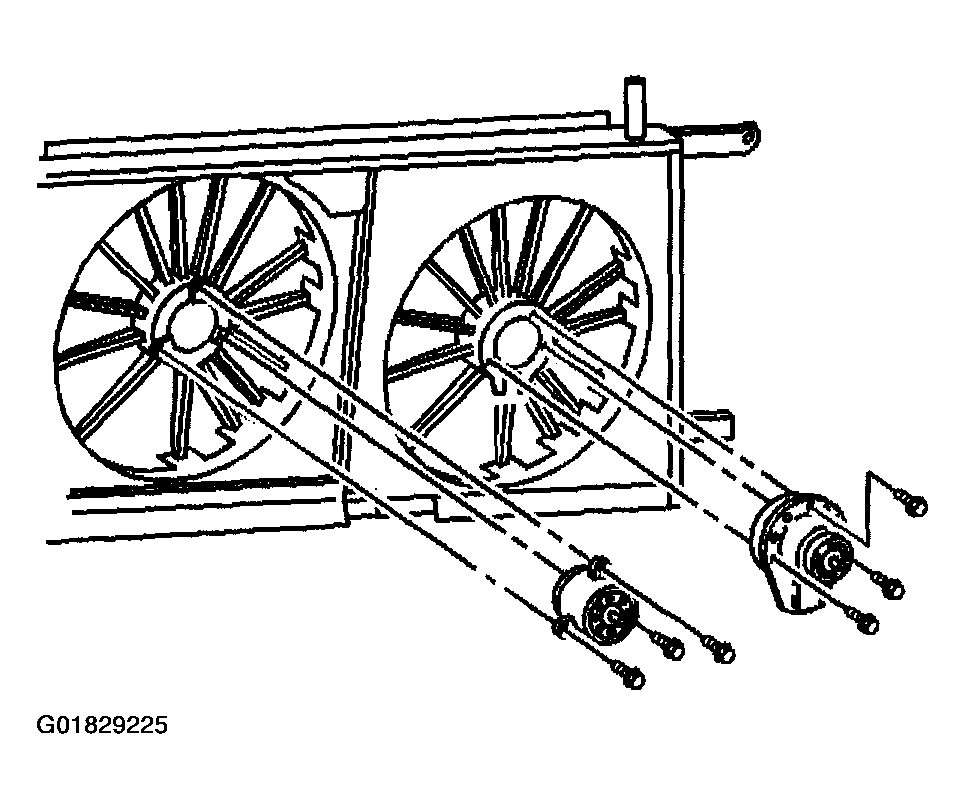

    Fig 2: Installing Fan Motor, Shrouds & Screws
    G01829225Courtesy of GENERAL MOTORS CORP.
  5. Install the cooling fans to the shroud.

    Important:  Turn the cooling fan nuts counterclockwise to tighten.

  6. Install the cooling fan nuts.

    Tighten

    Tighten the nuts to 6 N.m (53 lb in).

  7. Install the cooling fan assembly including the shroud. Refer to COOLING FAN REPLACEMENT - Electric .

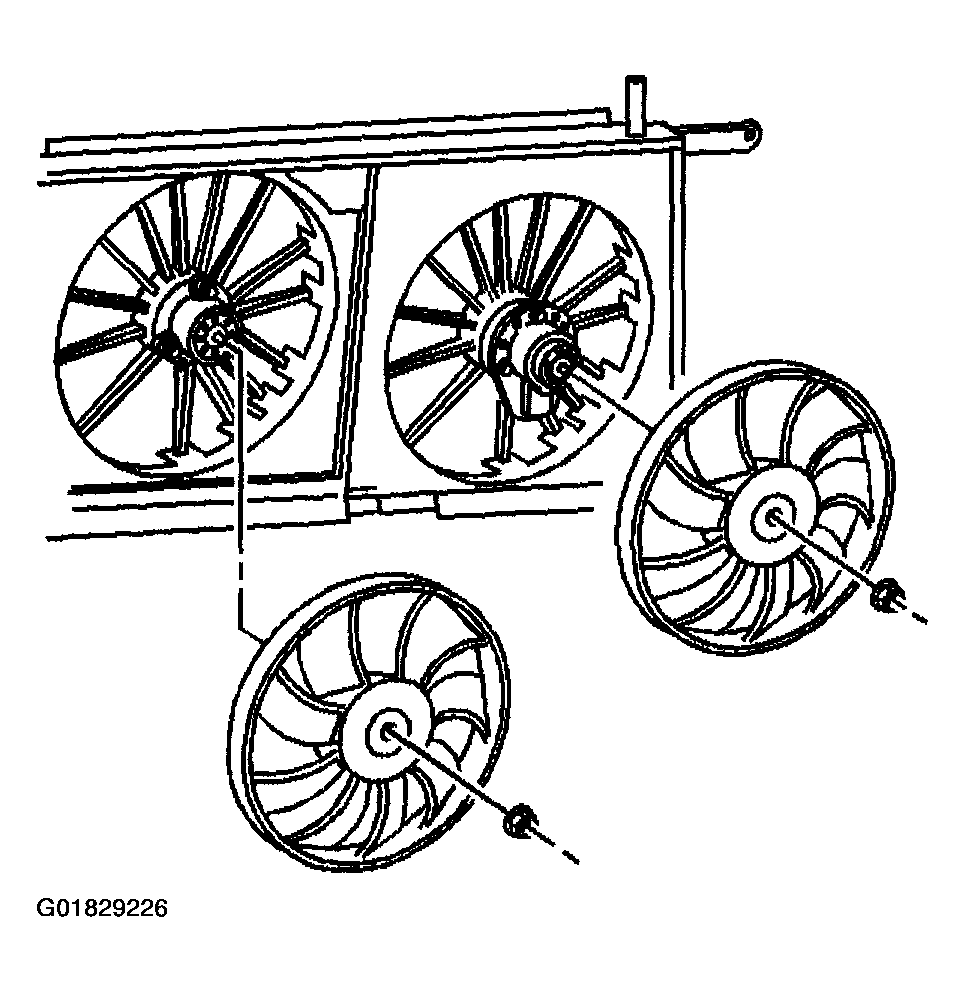

    Fig 3: Installing Cooling Fan, Shrouds & Nuts
    G01829226Courtesy of GENERAL MOTORS CORP.
