Removal Procedure
WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Refer to ELECTRIC COOLANT FAN CAUTION
.
CAUTION:
To help avoid personal injury or damage to the vehicle, a bent, cracked, or damaged fan blade or housing should always be replaced.
Important: If abnormal noise or vibration is felt from the engine compartment, inspect and clean any foreign material from the cooling fan blades.
- Turn the ignition off.

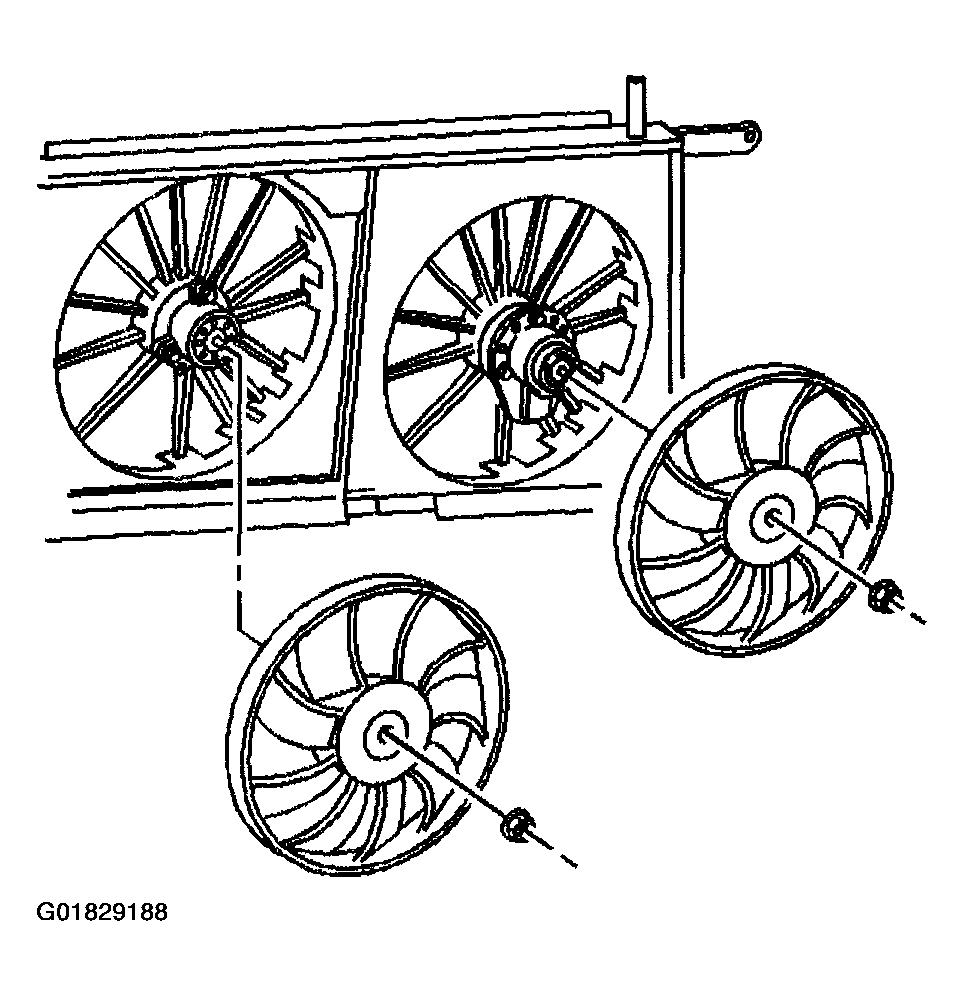

- Remove the cooling fans with the cooling fan shroud. Refer to COOLING FAN REPLACEMENT - Electric .
Important: Turn the cooling fan nut clockwise to loosen.
- Remove the cooling fan nut.
- Remove the cooling fan.
