Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Drain the coolant. Refer to Draining and Filling Cooling System .
  3. Pull the stem out of the radiator body.
  4. Clean or replace the seal and the stem as necessary.

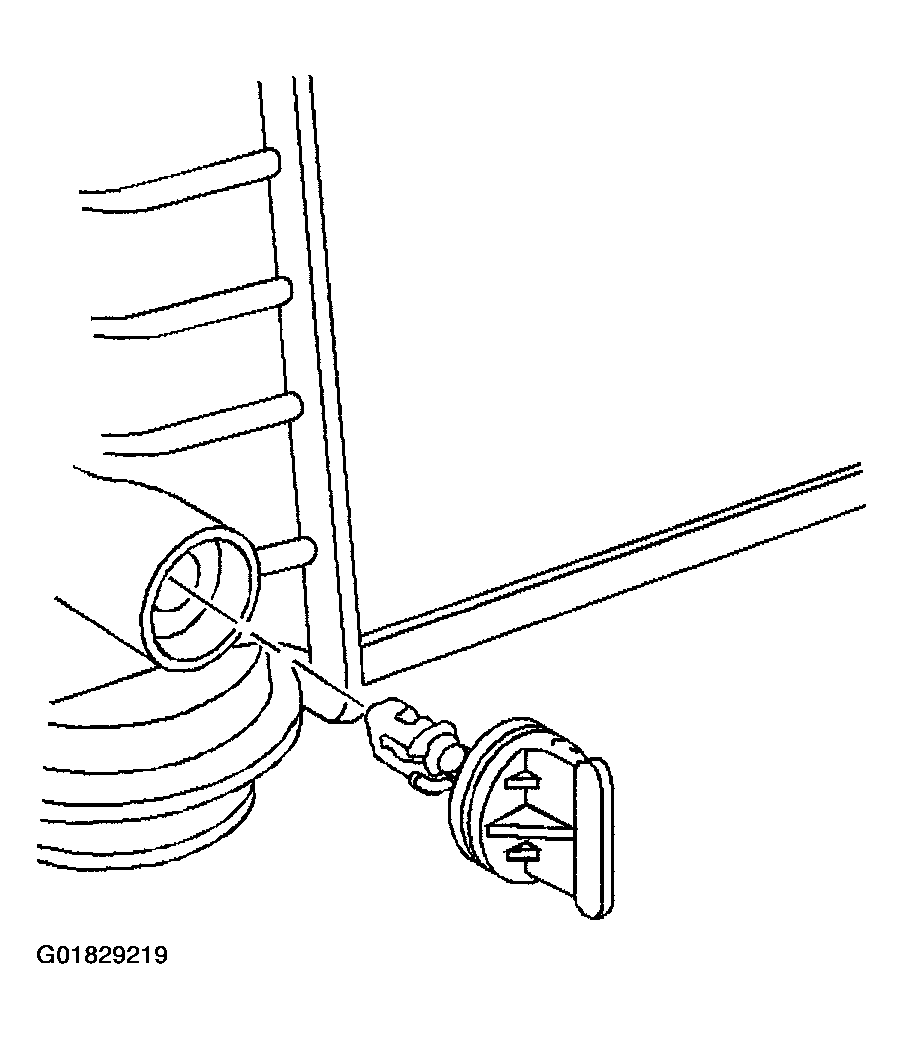

    Fig 1: Pulling Stem Out Of Radiator Body
    G01829219Courtesy of GENERAL MOTORS CORP.
