Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stem to the radiator body.
  2. Lower the vehicle.
  3. Fill the cooling system. Refer to Draining and Filling Cooling System .

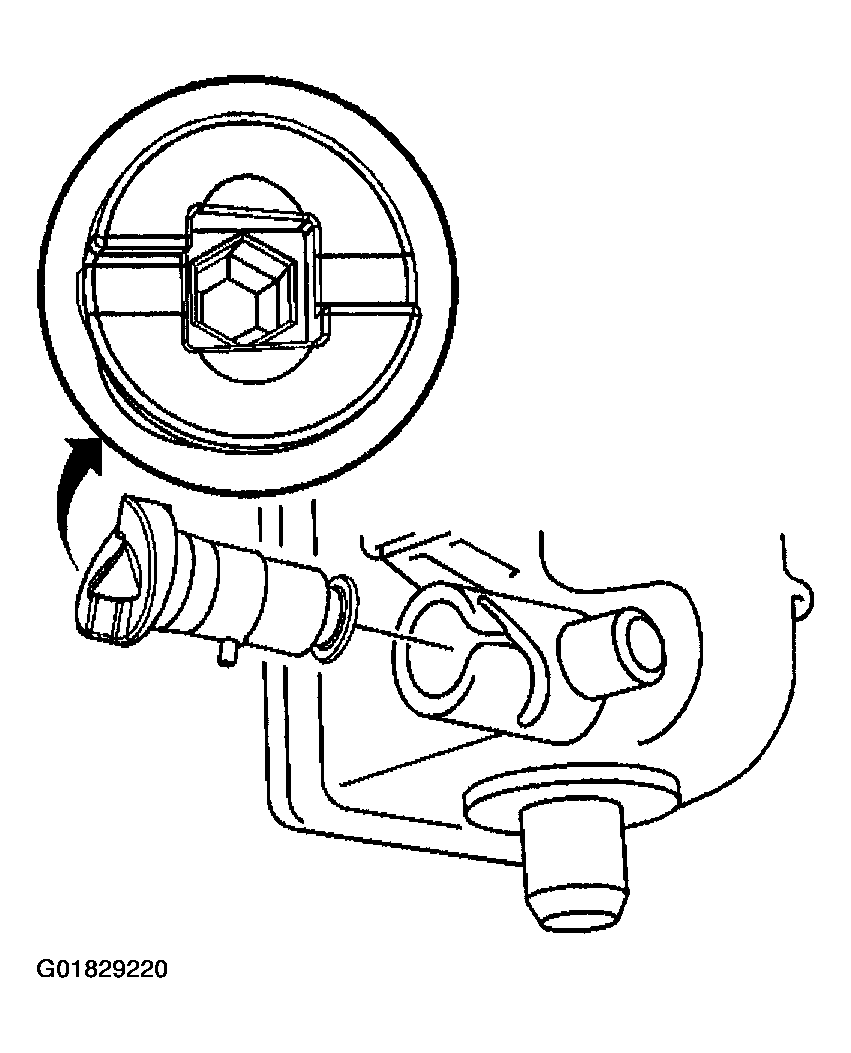

    Fig 1: Installing Stem To Radiator Body
    G01829220Courtesy of GENERAL MOTORS CORP.
