Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cooling fan motor.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws to the cooling fan motor.

    Tighten

    Tighten the screws to 6 N.m (53 lb in).

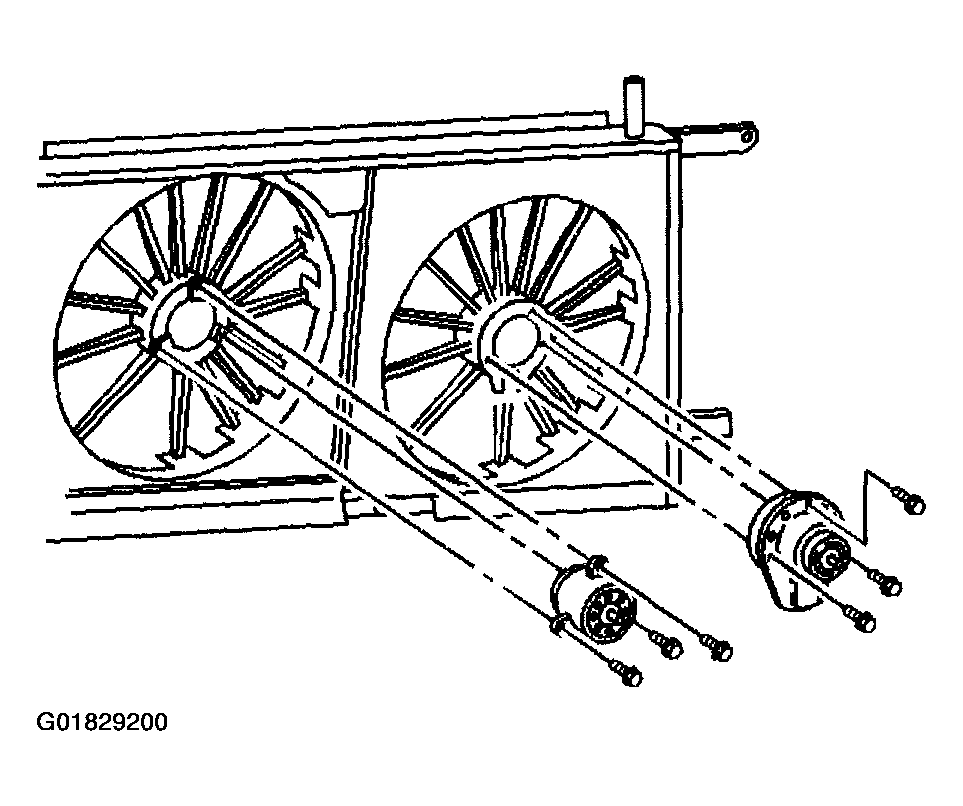

    Fig 1: Installing Screws & Cooling Fan Motor
    G01829200Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the cooling fan motor.
  4. Install the cooling fan to the shroud.

    Important:  Turn the cooling fan nut counterclockwise to tighten.

  5. Install the cooling fan nut.

    Tighten

    Tighten the nut to 6 N.m (53 lb in).

  6. Install the cooling fan and shroud assembly. Refer to COOLING FAN REPLACEMENT - Electric .

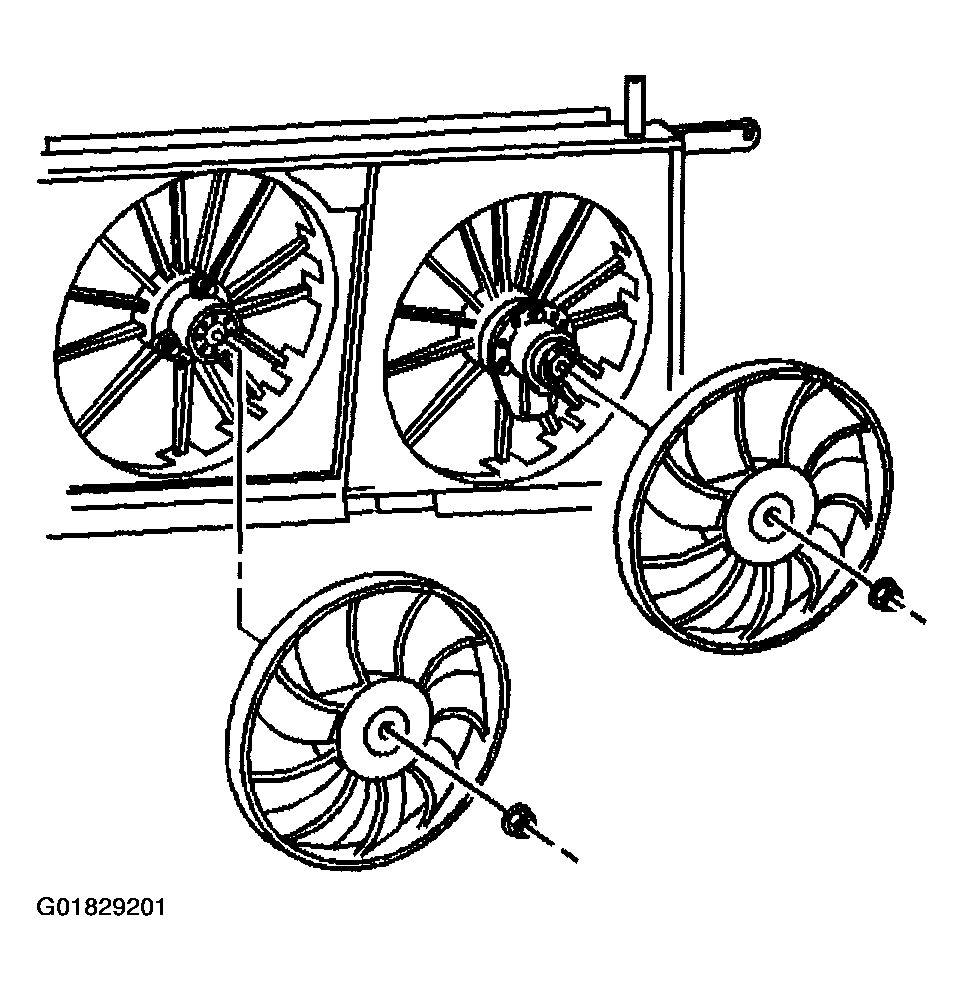

    Fig 2: Installing Cooling Fan & Nut
    G01829201Courtesy of GENERAL MOTORS CORP.
