Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Reposition the reservoir hose clamp at the radiator overflow fitting using the J 38185.
  2. Remove the reservoir hose at the radiator overflow fitting.
  3. Remove the mounting clip to the reservoir.
  4. Remove the coolant reservoir.

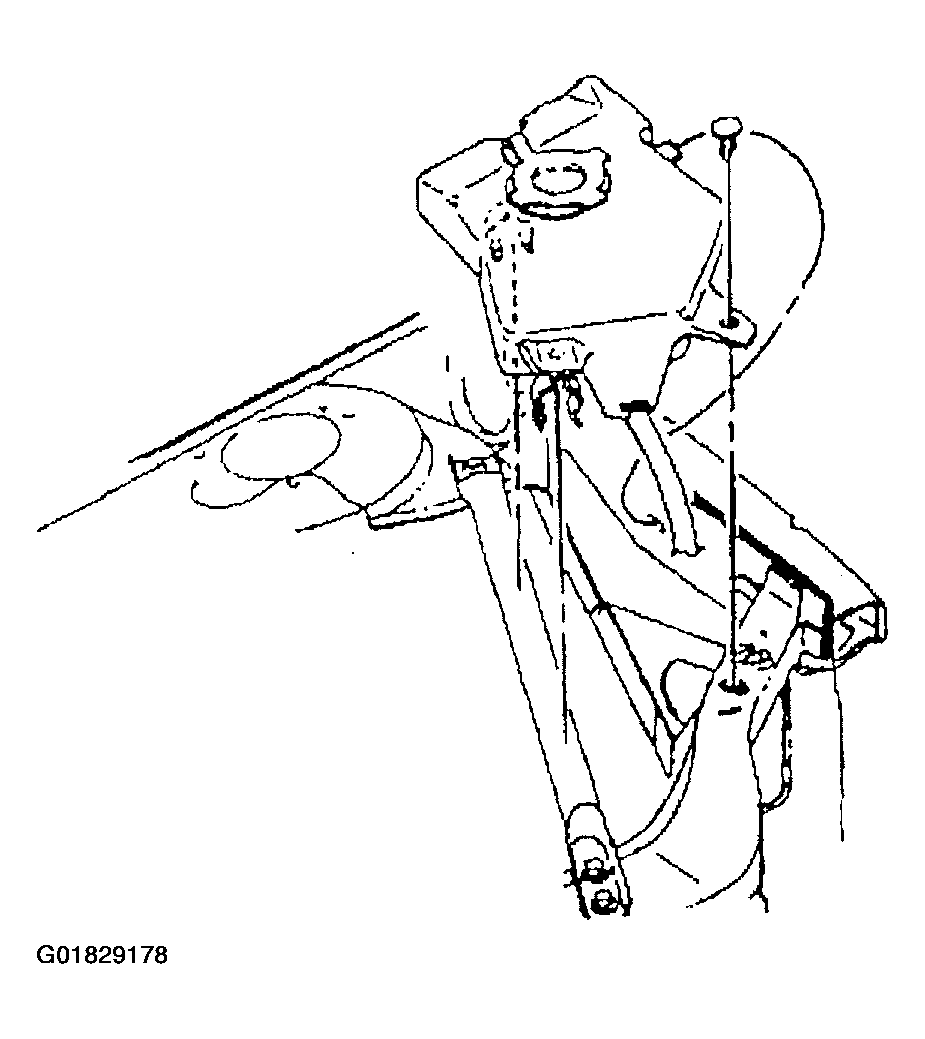

    Fig 1: Removing Mounting Clip & Coolant Reservoir
    G01829178Courtesy of GENERAL MOTORS CORP.
