Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition OFF.
  2. Drain the engine cooling system. Refer to Draining and Filling Cooling System .
  3. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  4. Remove the right front wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  5. Remove the right engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE .
  6. Remove the engine coolant heater cord from the engine coolant heater.
  7. Loosen the coolant heater bolt/screw.

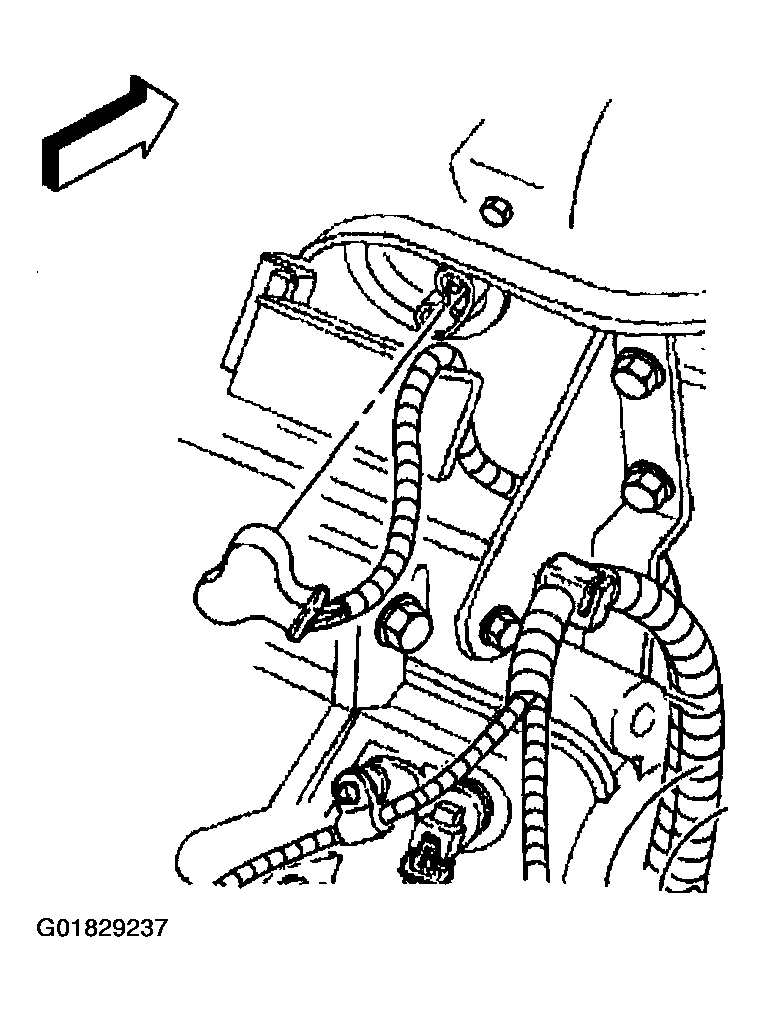

    Fig 1: Removing Engine Coolant Heater Cord
    G01829237Courtesy of GENERAL MOTORS CORP.
  8. Remove the coolant heater.

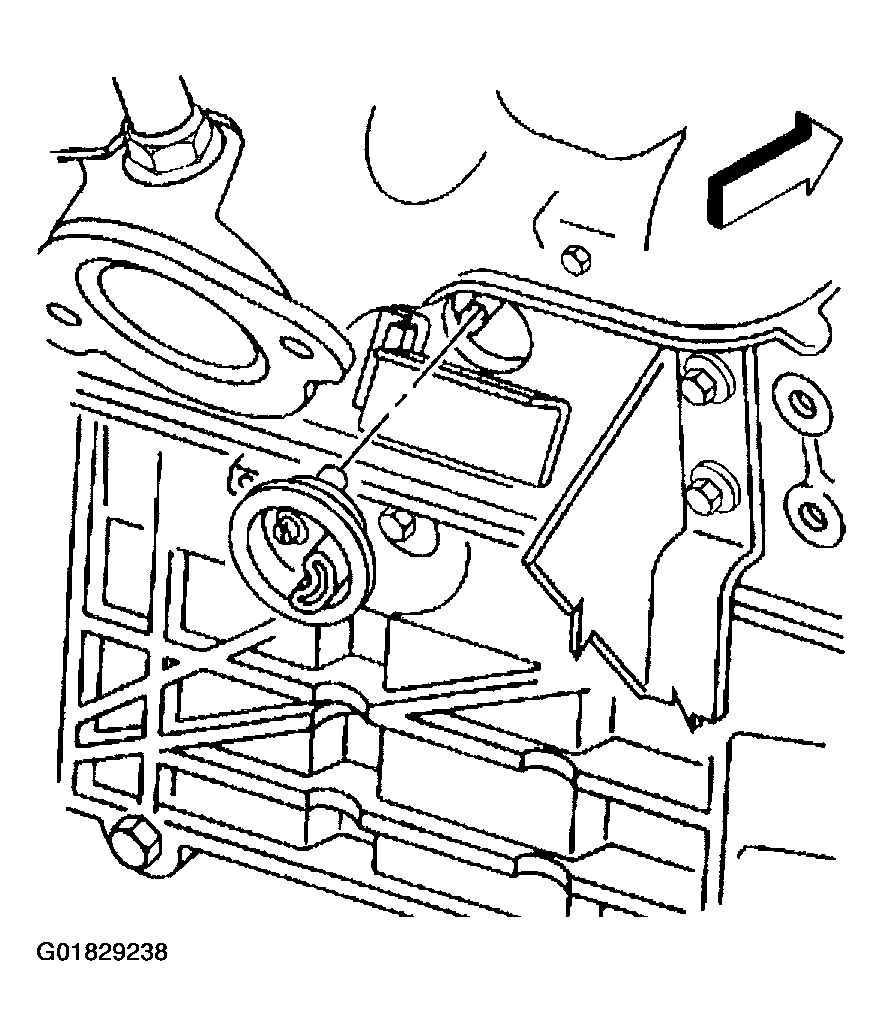

    Fig 2: Removing Coolant Heater
    G01829238Courtesy of GENERAL MOTORS CORP.
