Loss of Coolant

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

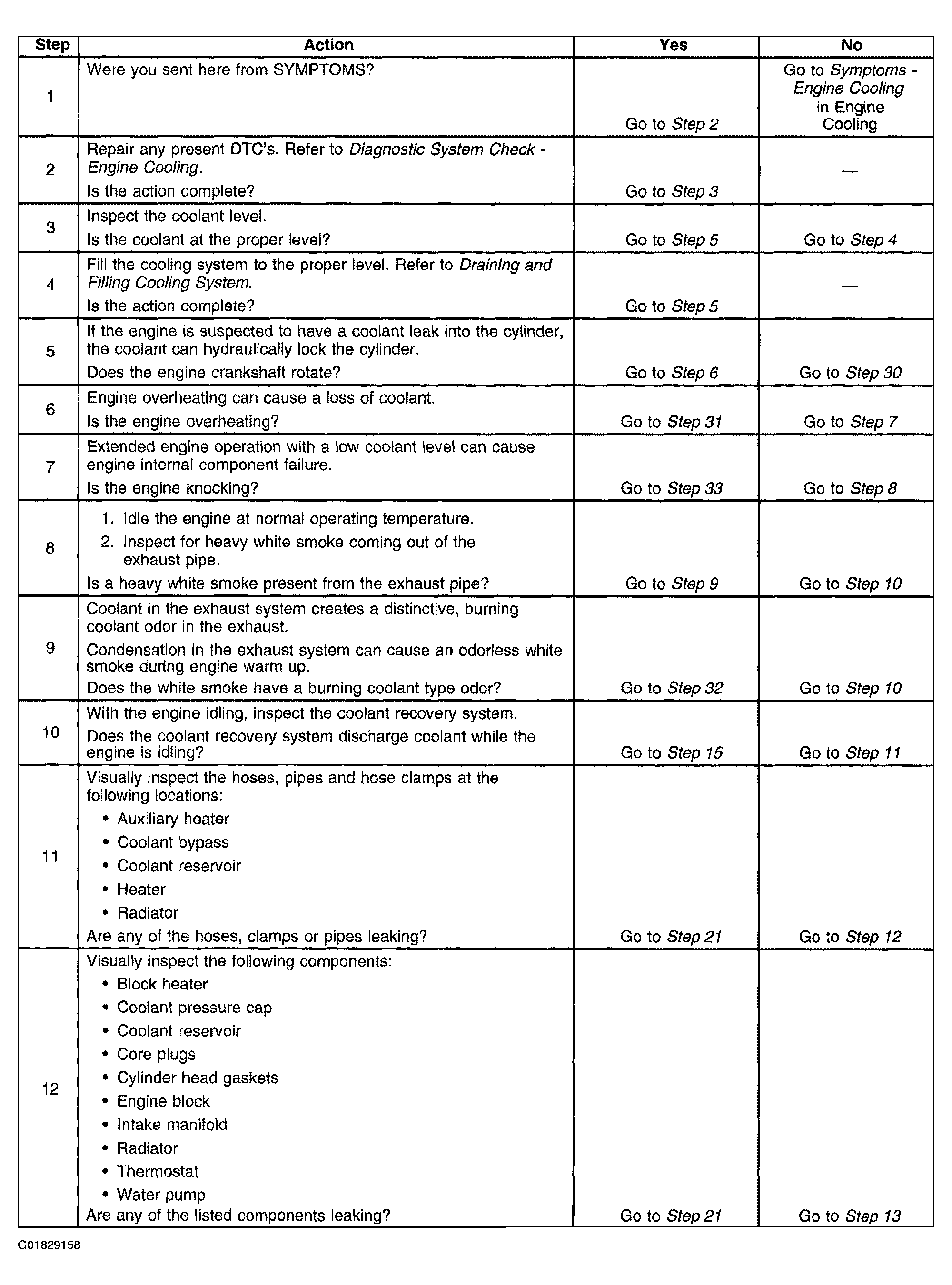

Fig 1: Loss Of Coolant (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

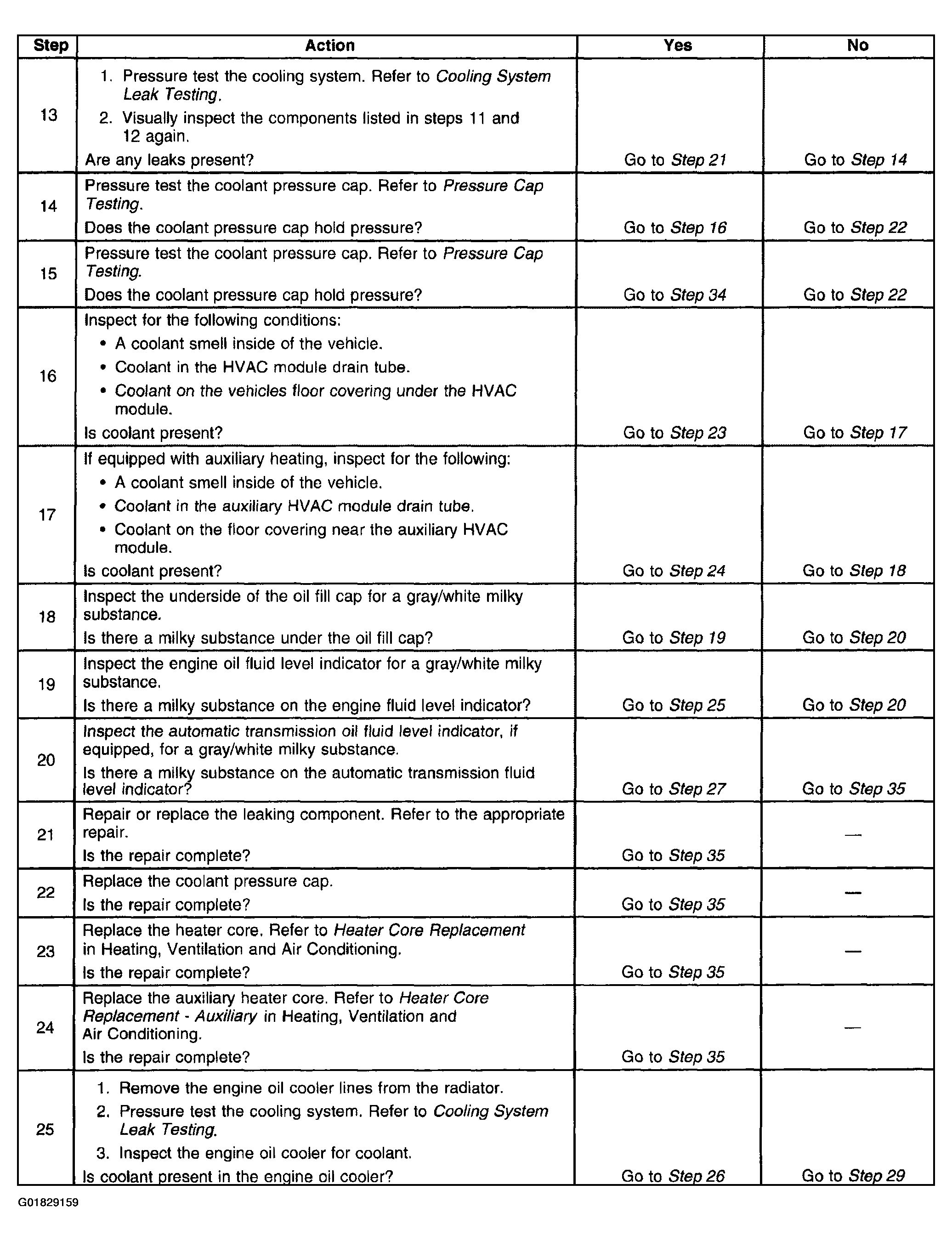

Fig 2: Loss Of Coolant (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

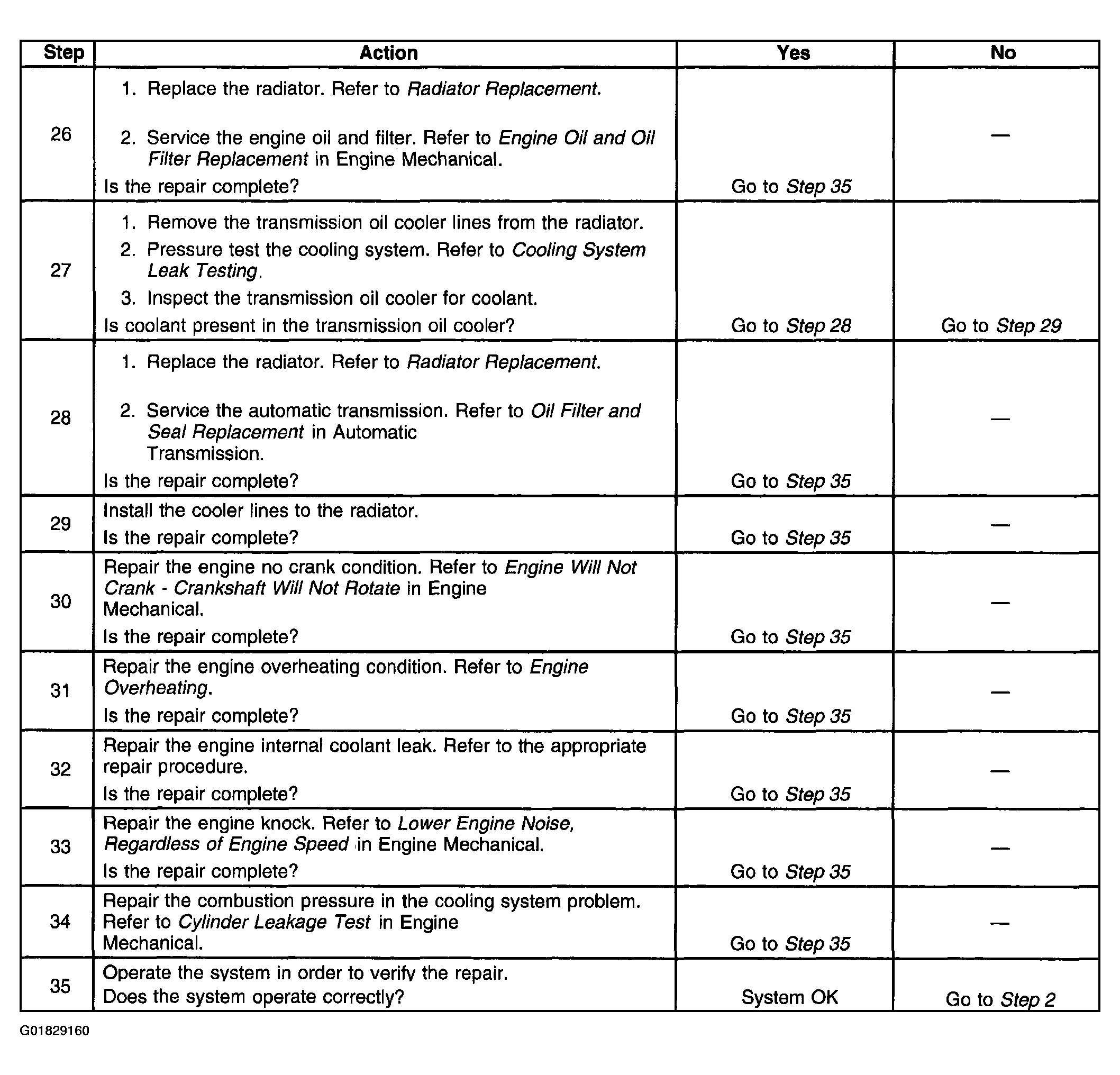

Fig 3: Loss Of Coolant (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
