Cooling Fan Inoperative

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Cooling Fan Inoperative (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

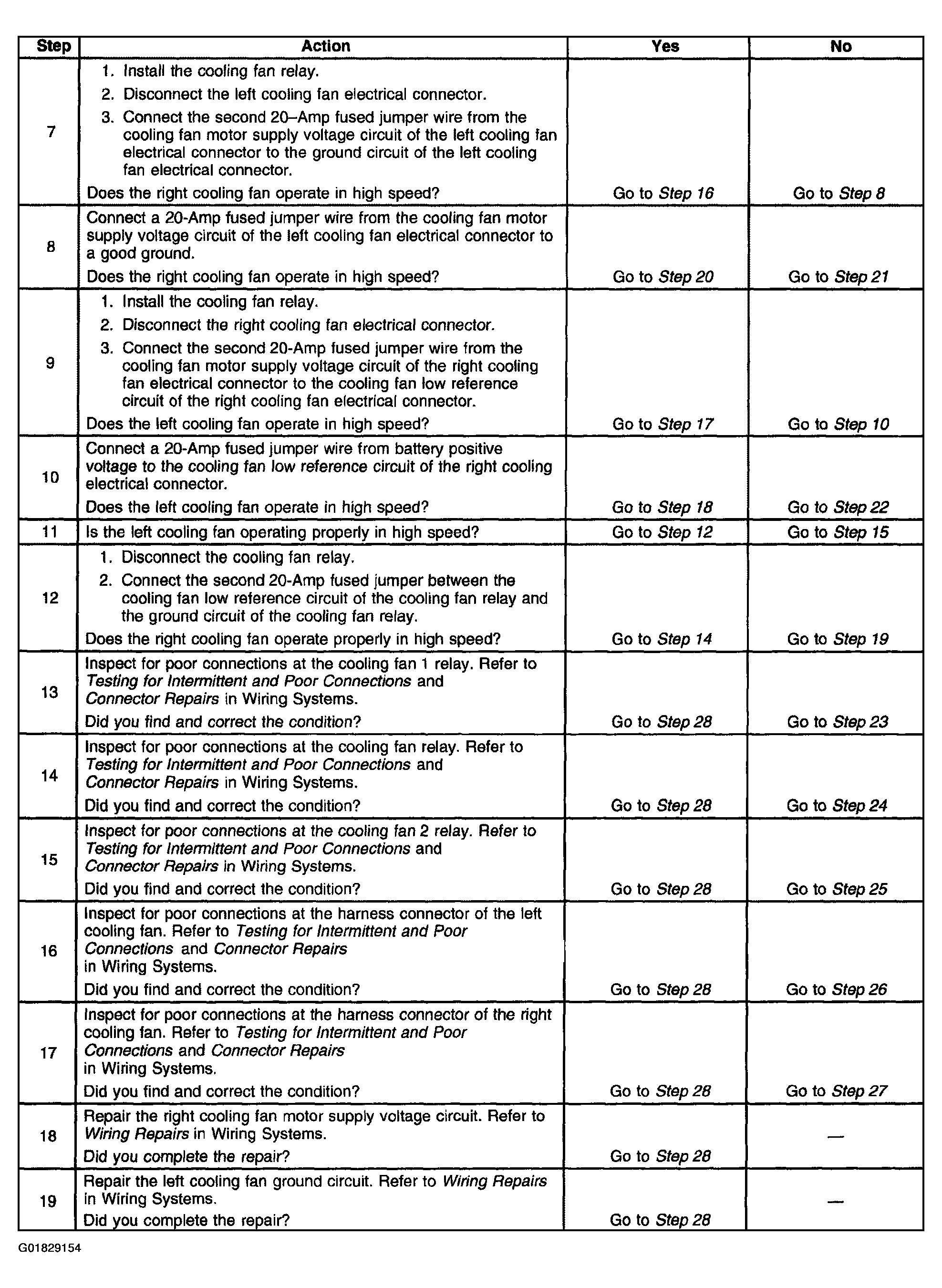

Fig 2: Cooling Fan Inoperative (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

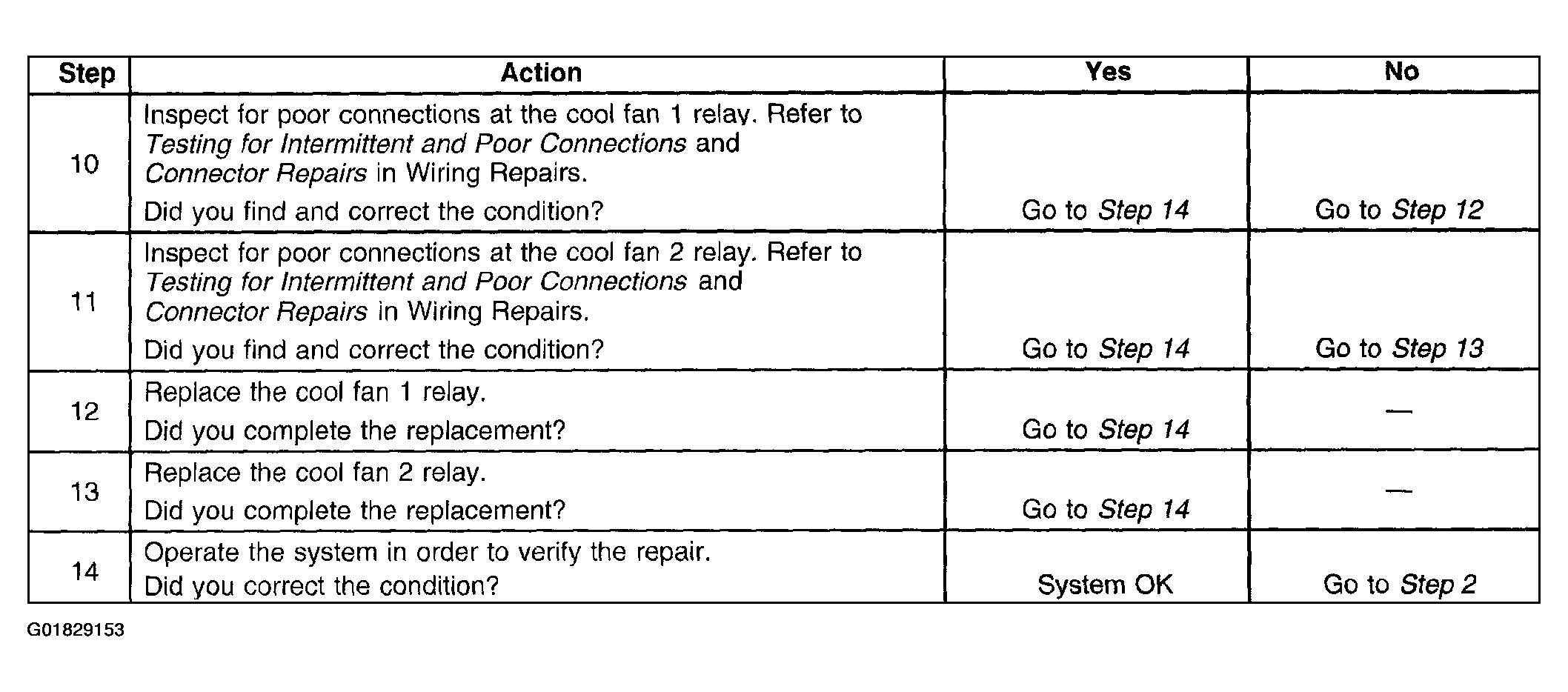

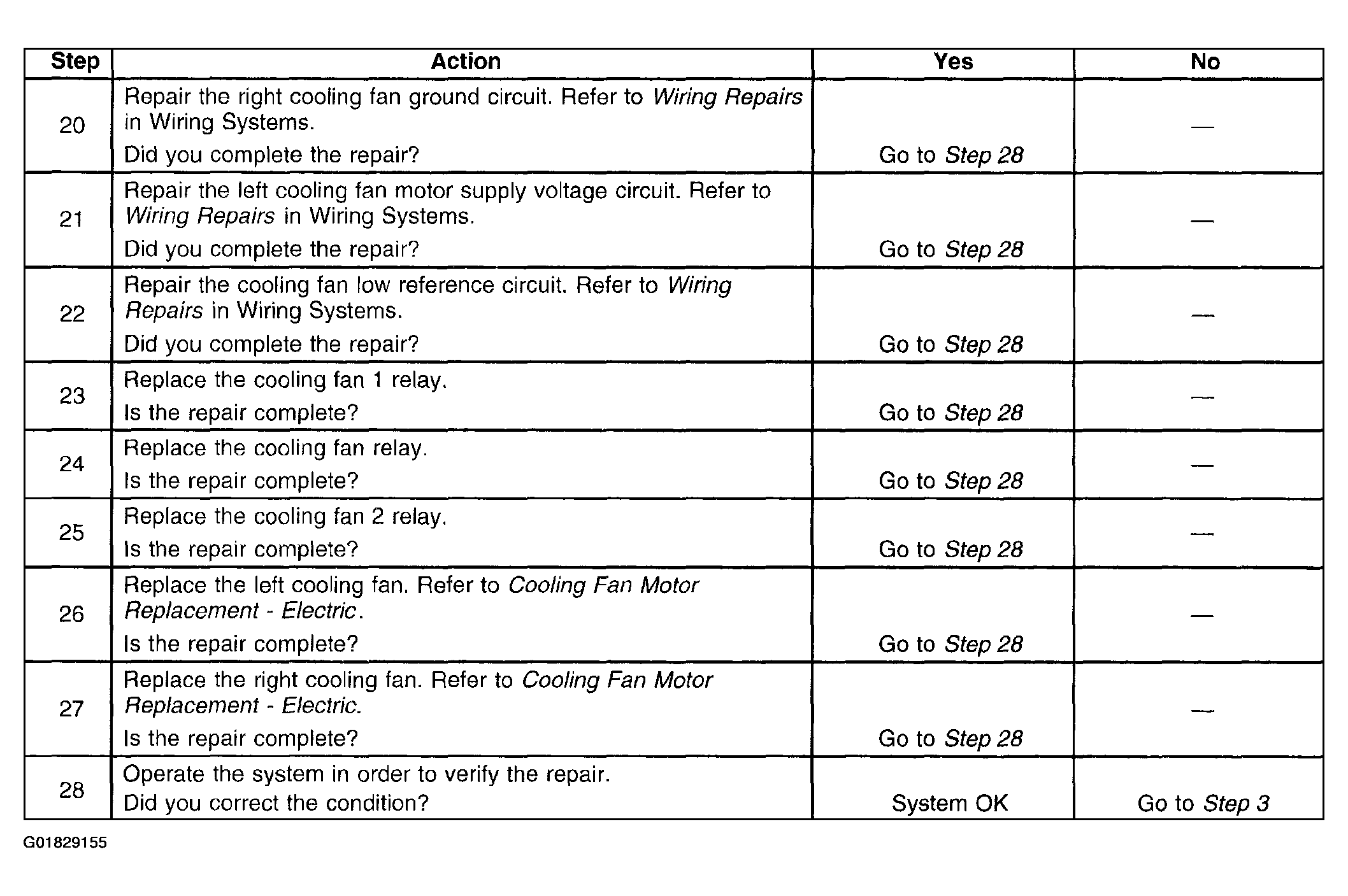

Fig 3: Cooling Fan Inoperative (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
