Cooling Fan Always On

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

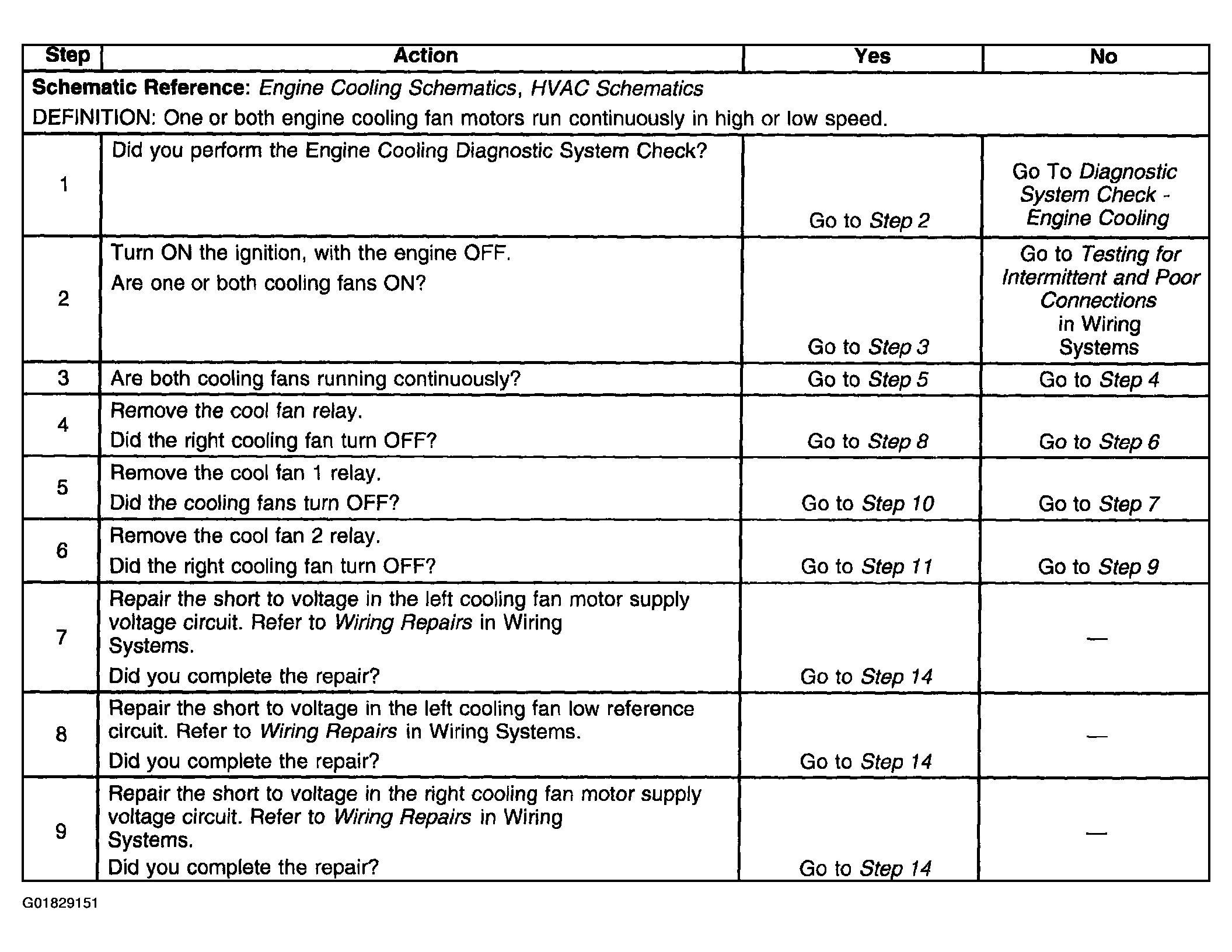

Fig 1: Cooling Fan Always On (1 Of 2)
G01829151Courtesy of GENERAL MOTORS CORP.

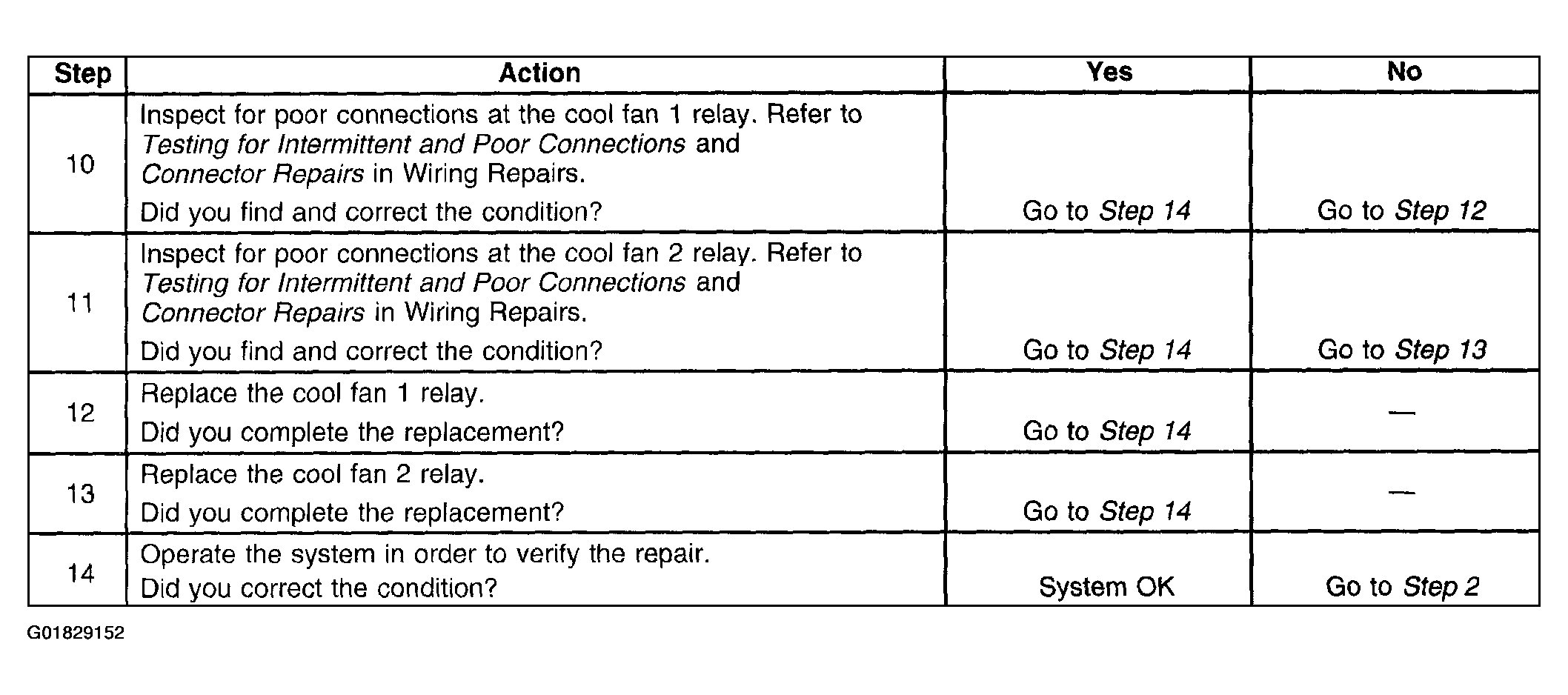

Fig 2: Cooling Fan Always On (2 Of 2)
G01829152Courtesy of GENERAL MOTORS CORP.
