Test Description

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step tests for an intermittent condition.
  2. 3. This step determines if the failure is the result of a faulty instrument cluster.

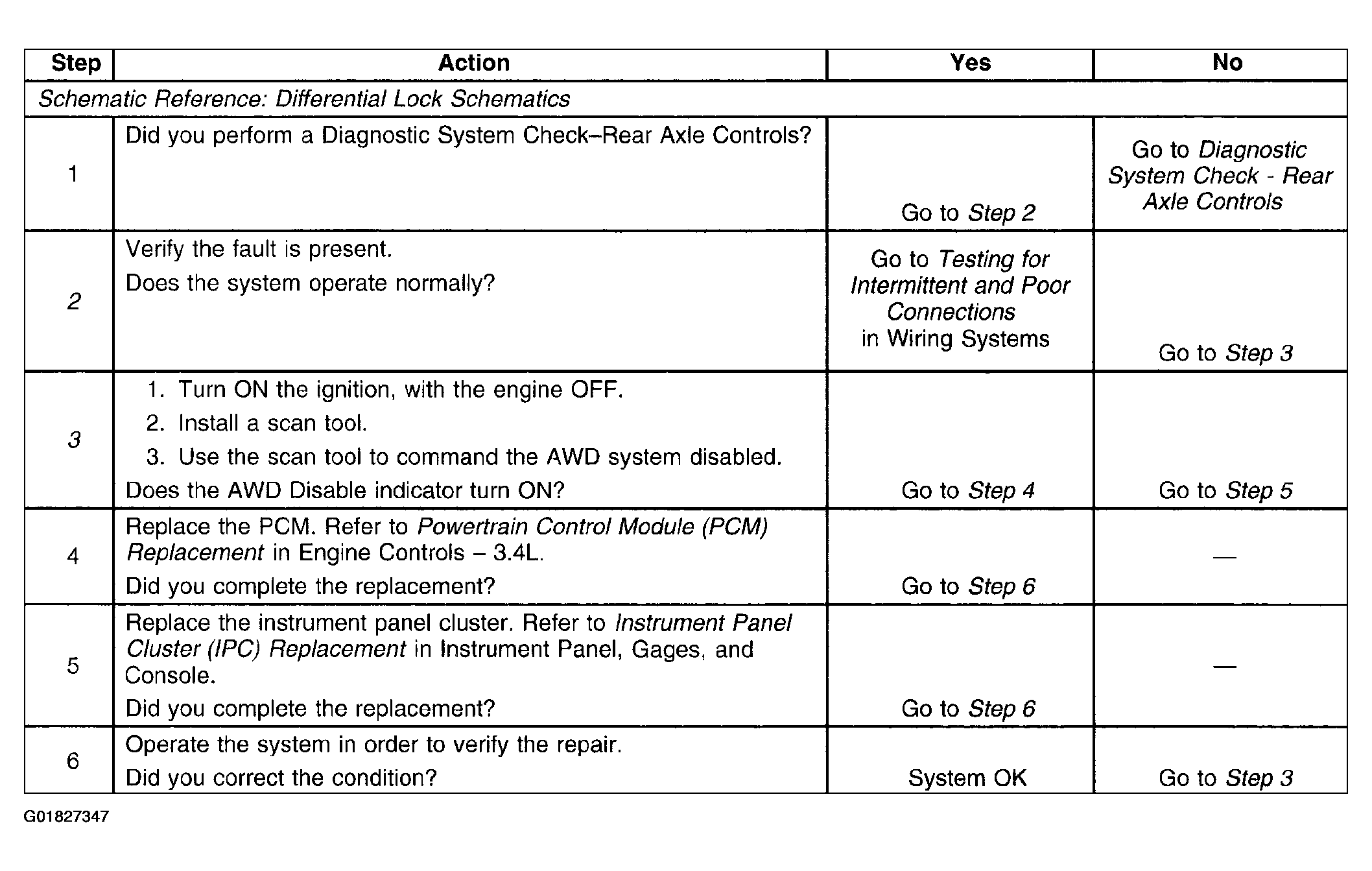

    Fig 1: Differential Lock Indicator Inoperative
    G01827347Courtesy of GENERAL MOTORS CORP.
