Test Description

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 7. Tests the SIS signal and SIS voltage circuits for an open or high resistance
  2. 8. Tests between the SIS signal and SIS voltage circuits for continuity
  3. 9. Tests the SIS signal and SIS voltage circuits for a short to voltage

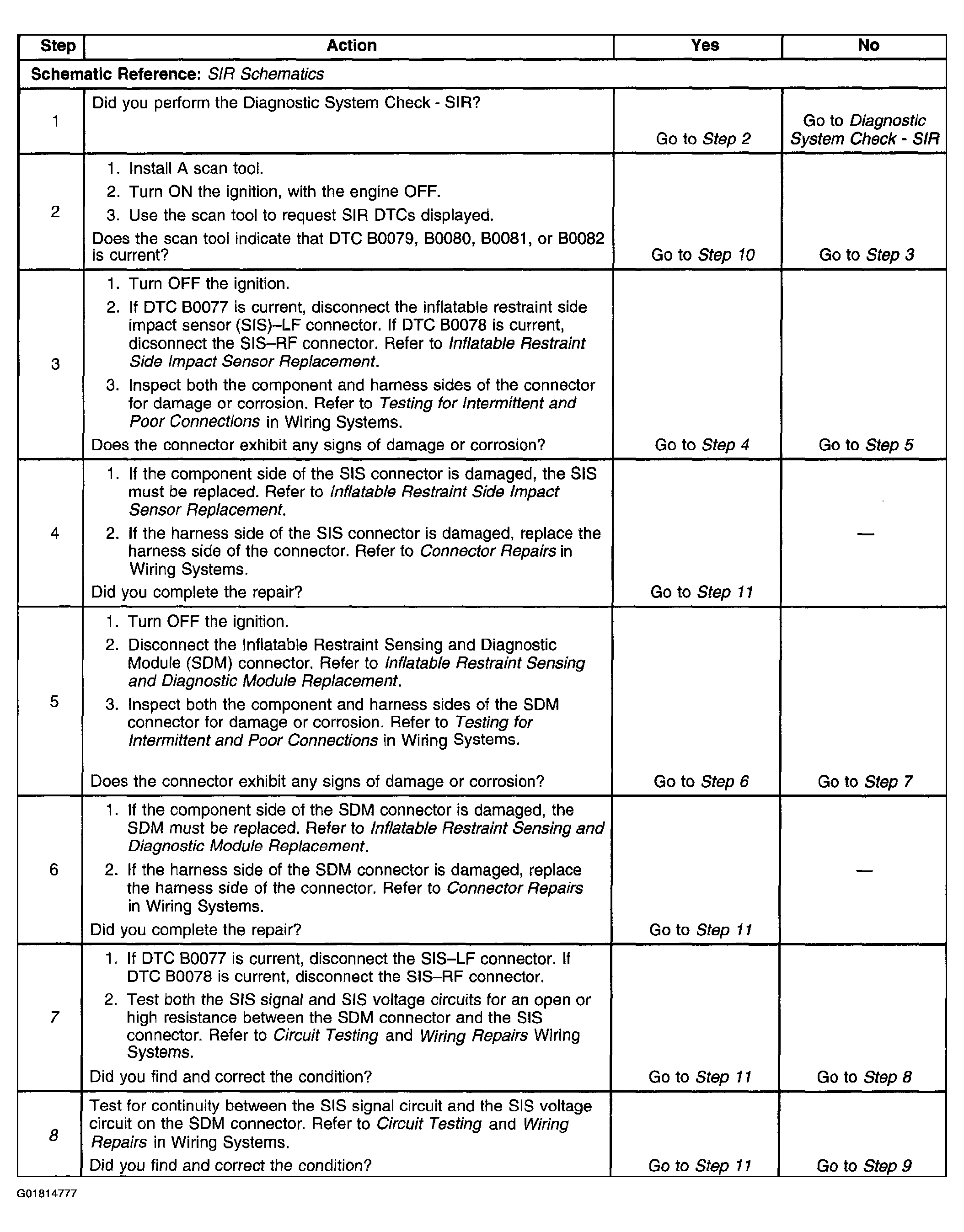

Fig 1: DTC B0077, B0078, B0079, B0080, B0081, Or B0082 (1 Of 2)
G01814777Courtesy of GENERAL MOTORS CORP.

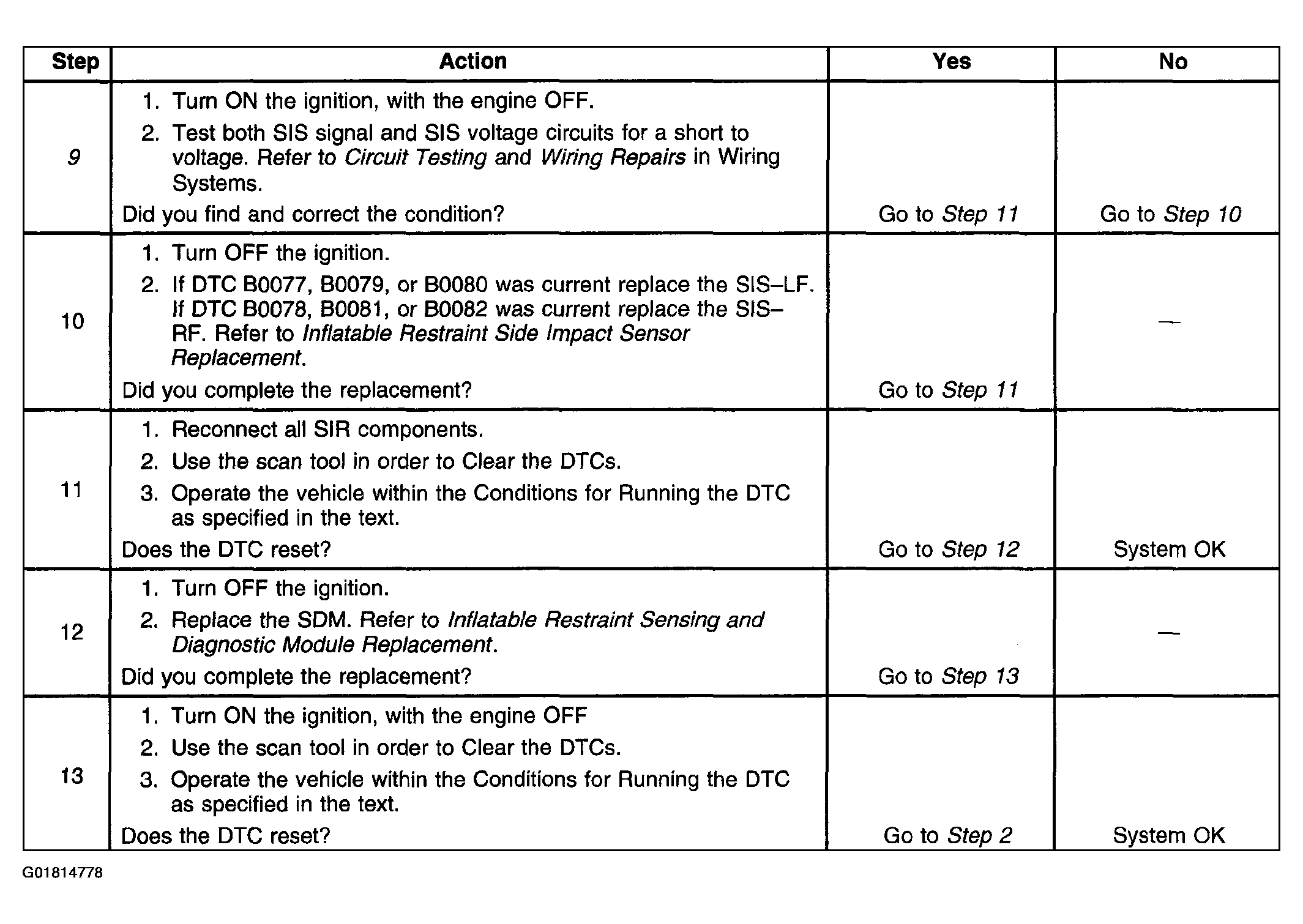

Fig 2: DTC B0077, B0078, B0079, B0080, B0081, Or B0082 (2 Of 2)
G01814778Courtesy of GENERAL MOTORS CORP.
