Test Description

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The number below refer to the step number on the diagnostic table.

  1. 7. This step tests to see what DTCs are present. If DTC B0040 is present, test the side impact module-LF for a short between high and low circuits. If DTC B0041 is present, test the side impact module-LF high and low circuits for an open and for high resistance. If DTC B0045 is present, test the side impact module-LF high and low circuits for a short to ground or a short to voltage.
Fig 1: DTC B0040, B0041, Or B0045 (1 Of 2)
G01814769Courtesy of GENERAL MOTORS CORP.

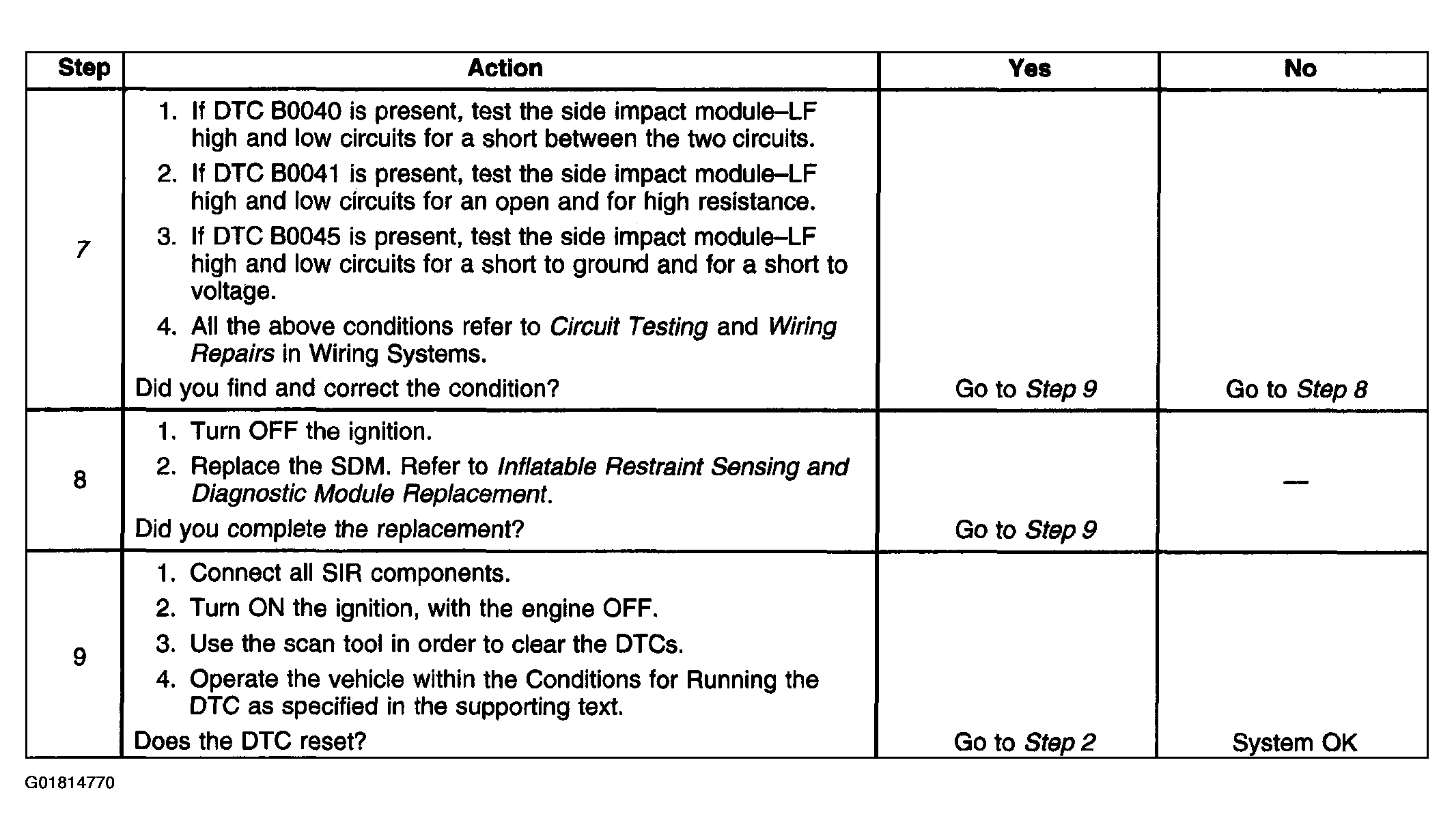

Fig 2: DTC B0040, B0041, Or B0045 (2 Of 2)
G01814770Courtesy of GENERAL MOTORS CORP.
