Test Description

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 5. This step tests to see if the malfunction is caused by the steering wheel module or by the steering wheel module coil.
  2. 7. This step tests to see what DTCs are present. If DTC B0022 or B0042 is present, test the steering wheel module for a short between high and low circuits in stage 1 or stage 2. If DTC B0024 or B0043 is present, test the steering wheel module high and low circuits for an open and for high resistance in stage 1 or stage 2. If DTC B0026 or B0044 is present, test the steering wheel module high and low circuits for an open and for high resistance in stage 1 or stage 2.

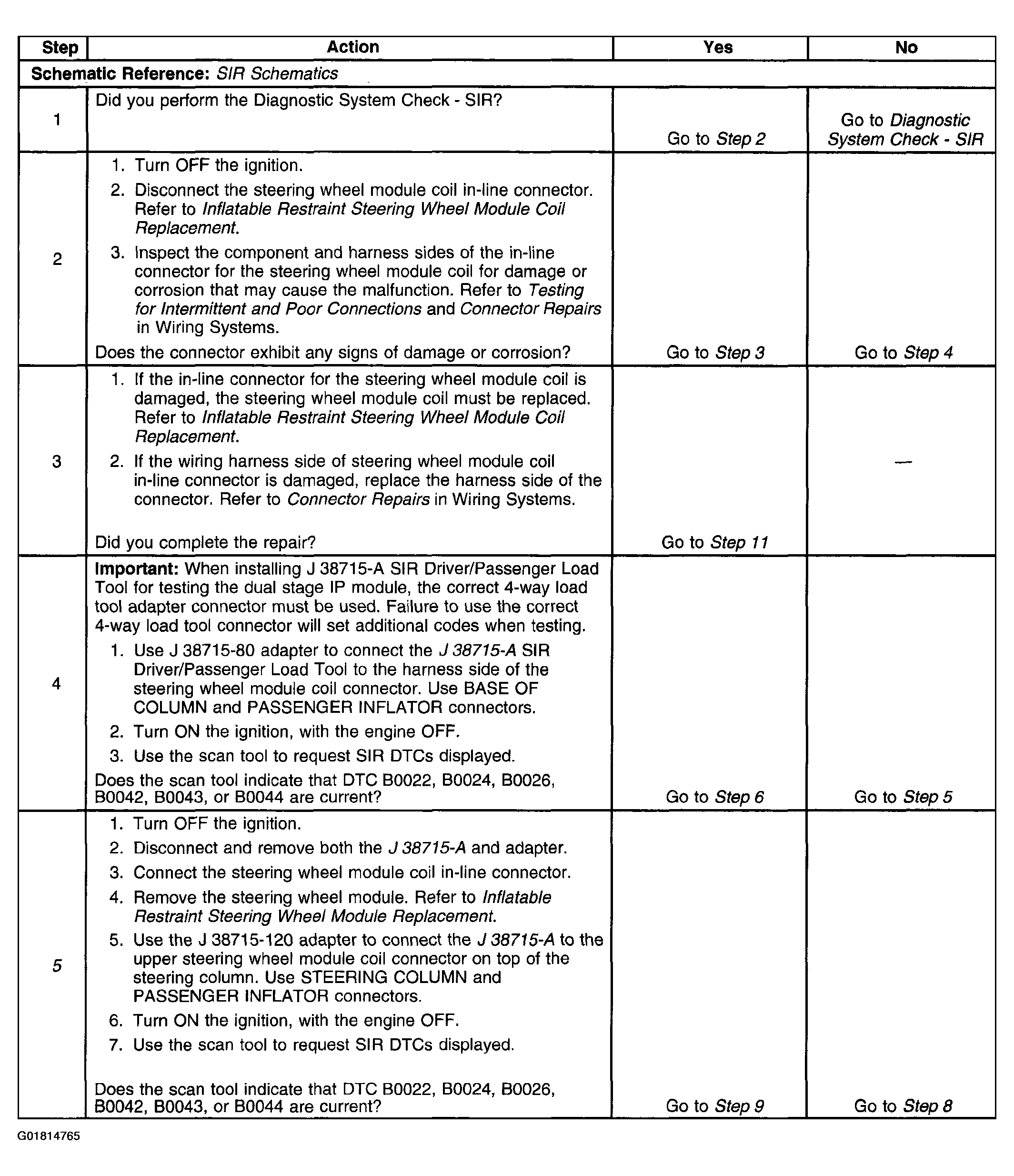

Fig 1: DTC B0022, B0024, B0026, B0042, B0043, Or B0044 (1 Of 2)
G01814765Courtesy of GENERAL MOTORS CORP.

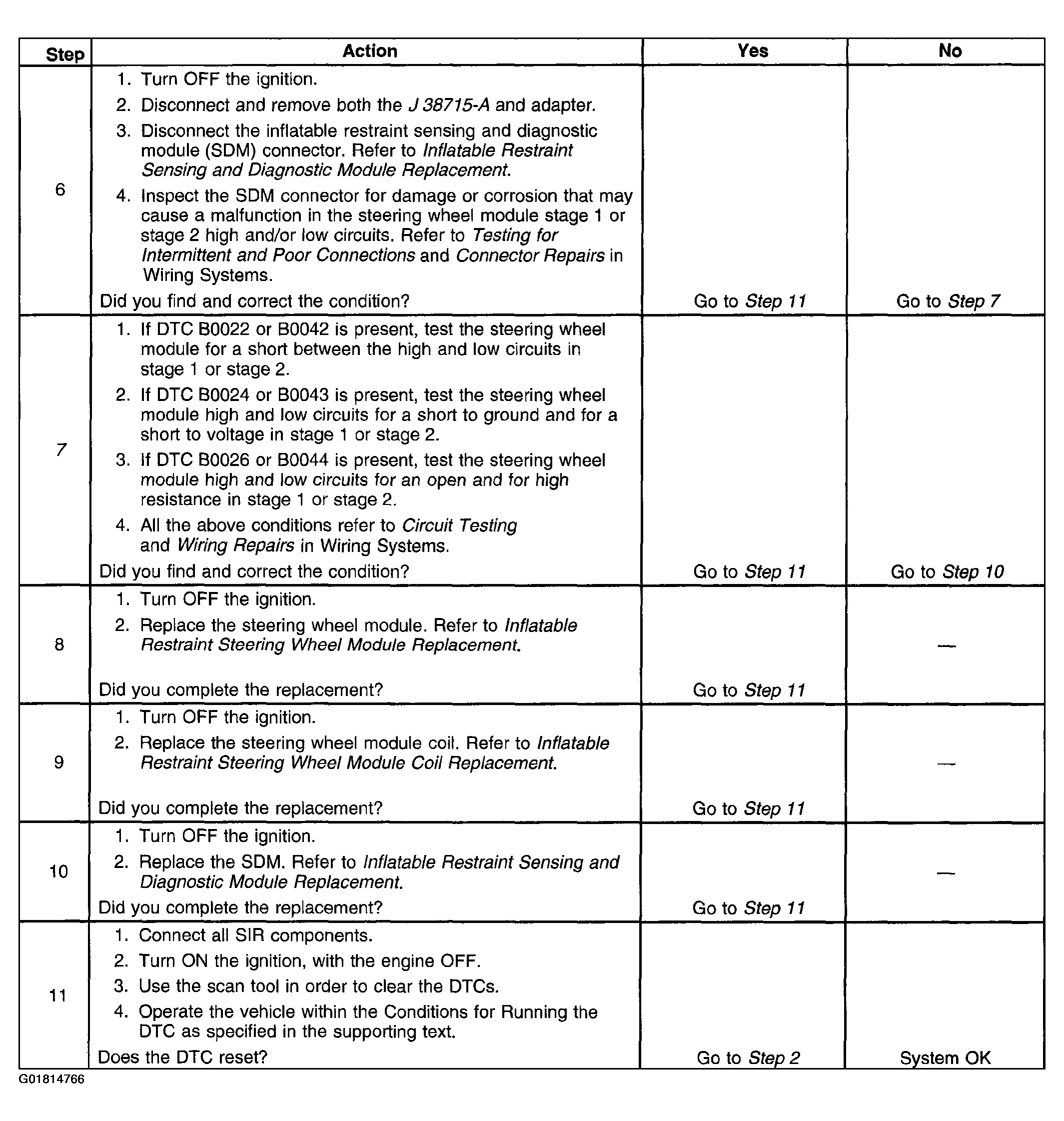

Fig 2: DTC B0022, B0024, B0026, B0042, B0043, Or B0044 (2 Of 2)
G01814766Courtesy of GENERAL MOTORS CORP.
