WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

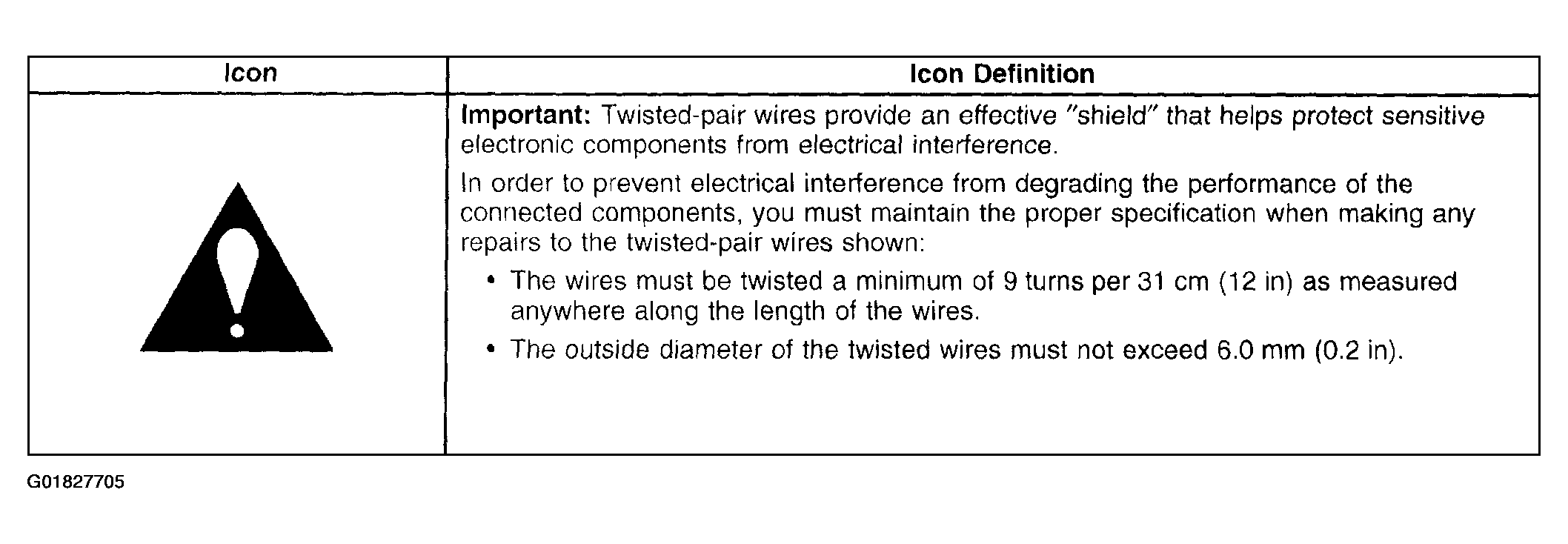

Fig 1: ABS Schematic Icons
Courtesy of GENERAL MOTORS CORP.

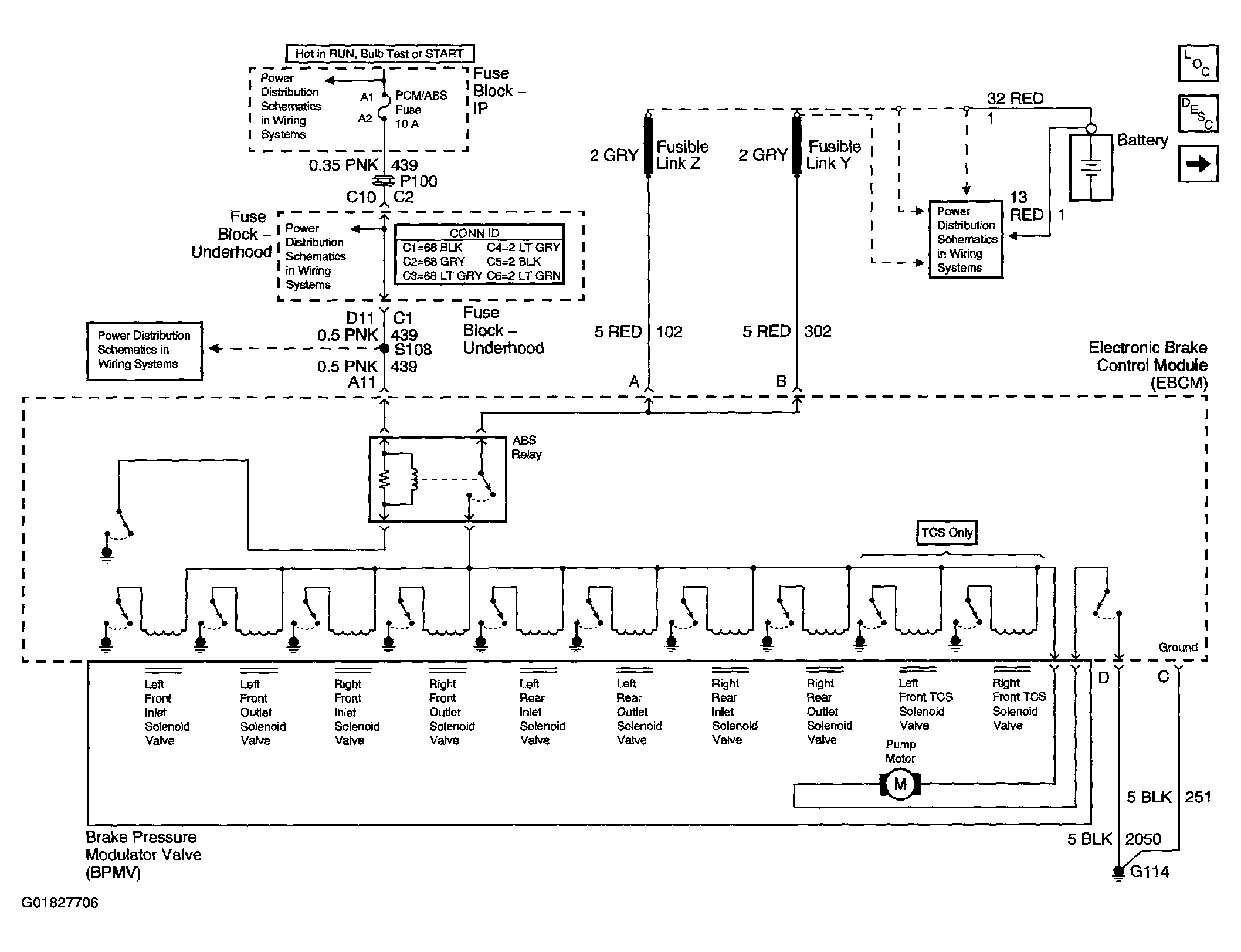

Fig 2: ABS Schematics (EBCM, Power And Ground)
Courtesy of GENERAL MOTORS CORP.

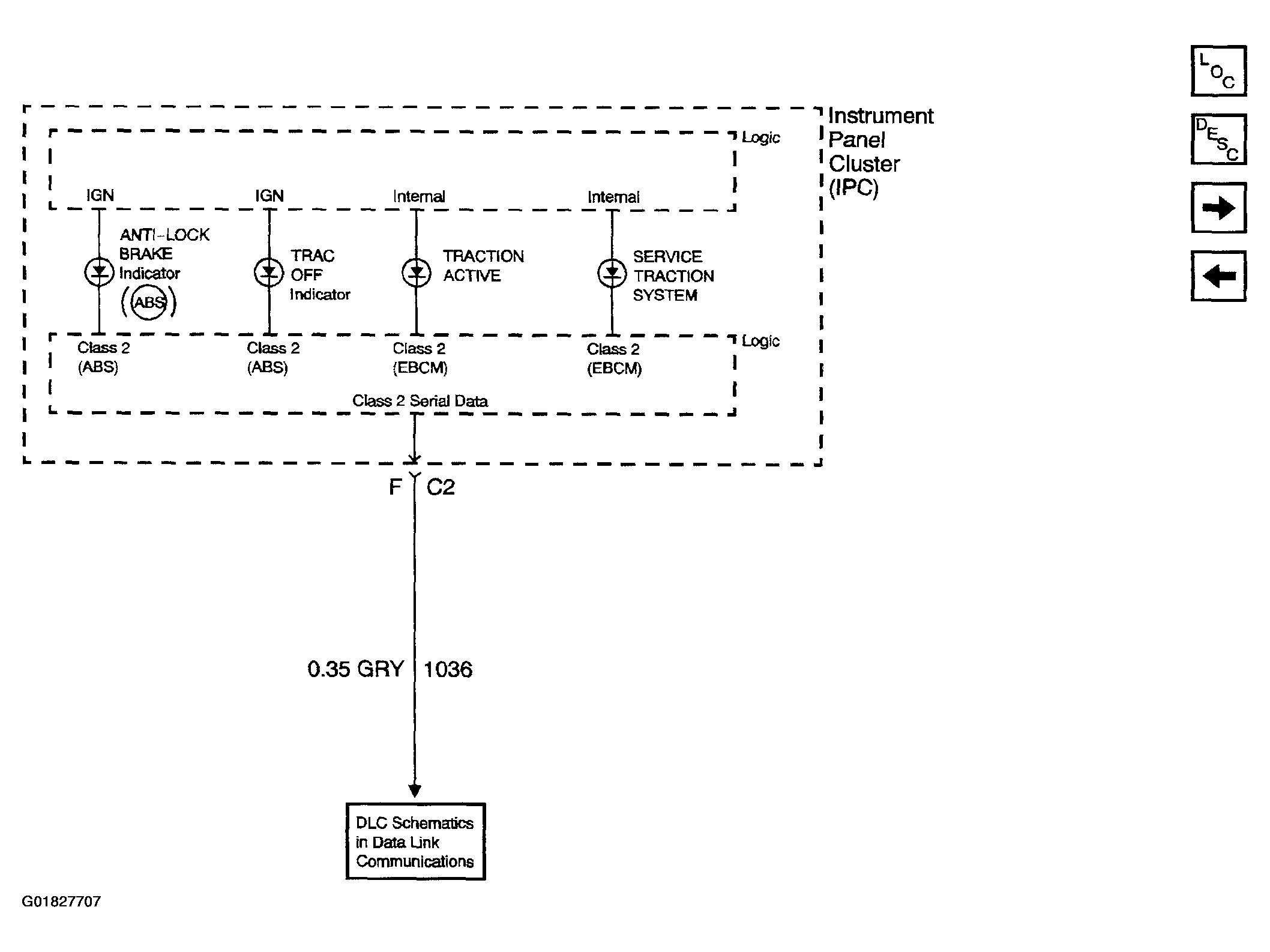

Fig 3: ABS Schematics (EBCM, Cluster And DLC)
Courtesy of GENERAL MOTORS CORP.

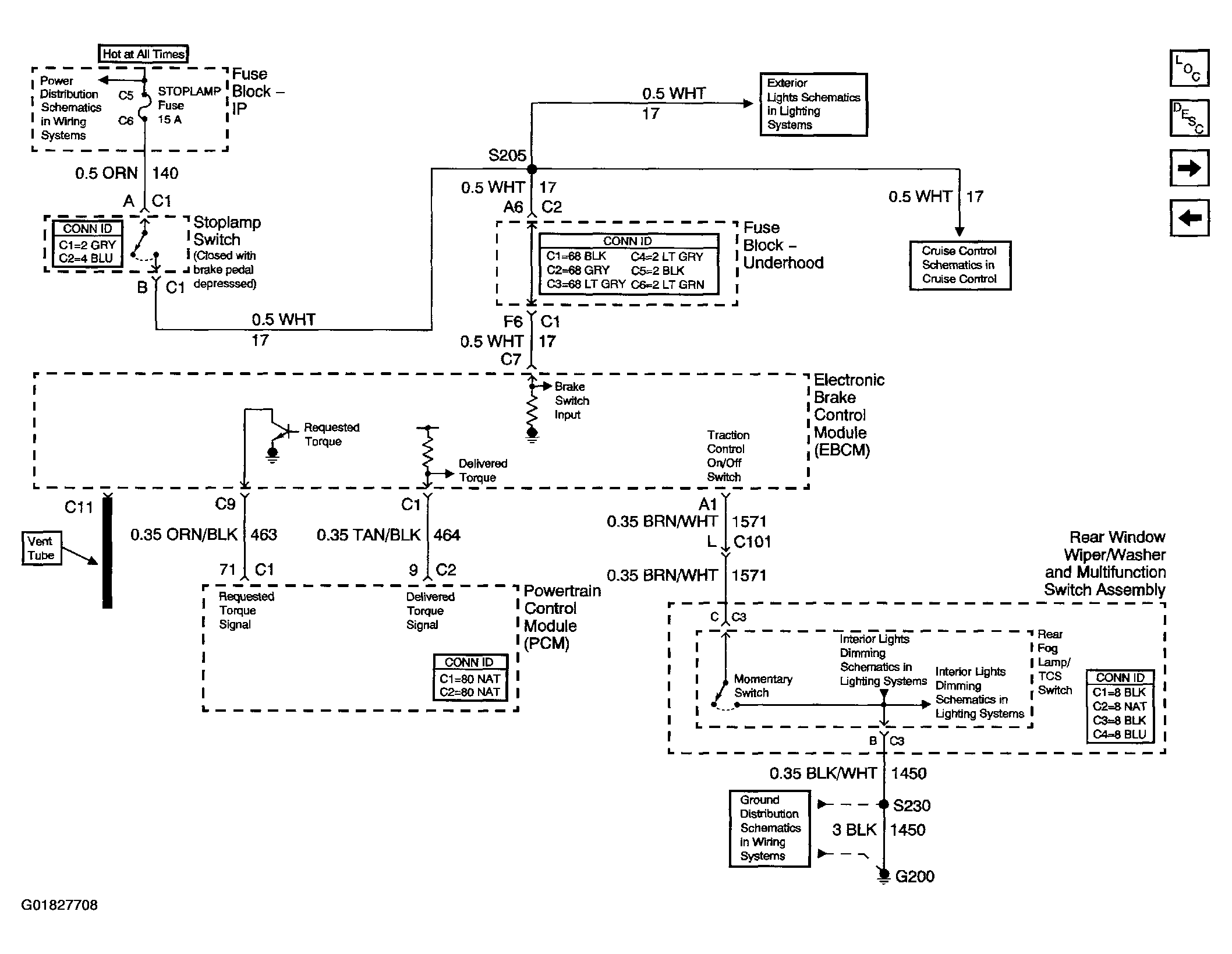

Fig 4: ABS Schematics (EBCM, PCM And Stop Lamp Switch)
